Experimentelle Entwicklung und Projekte / Experimental Development and Projects


4. Gamma-Astronomie 4.  Gamma-Ry Astronomy
Nach einer Dauer von insgesamt 9 Jahren und 2 Monaten hat die NASA am 4. Juni 2000 die Mission des Compton Gammastrahlen-Observatoriums (CGRO) beendet. Zuvor war eines von drei Gyroskopen ausgefallen. Die Fortsetzung der Mission mit nur noch zwei funktionierenden Gyroskopen wurde von der NASA als zu risikoreich eingeschätzt, und daher wurde das Observatorium aus der 500-km-Umlaufbahn zum kontrollierten Absturz gebracht und im Pazifik versenkt. After a total life of 9 years and 2 months, NASA ended the mission of the Compton Gamma Ray Observatory (CGRO) on June 4th 2000. Previously one of the three gyroscopes had failed, and the continuation of the mission with only two working gyroscopes was judged by NASA to be too risky. The observatory was brought to a controlled re-entry from its 500 km orbit, landing in the Pacific.
Die Compton-Mission hat uns im letzten Jahrzehnt das "Goldene Zeitalter" der Gamma-Astronomie beschert. Die beiden Teleskope COMPTEL und EGRET, die unter maßgeblicher Beteiligung unseres Instituts gebaut worden waren, hatten die ersten vollständigen Himmelkarten in der Gamma-Astronomie erzeugt und nahezu 300 Gamma-Quellen neu entdeckt. Wir haben gelernt, dass es vor allem die kompaktesten und energiereichsten Objekte im Universum sind, die zur Gamma-Emission führen. In der Gamma-Astronomie geht es insbesondere um Neutronensterne, stellare und massive schwarze Löcher, Supernova-Überreste und um Wechselwirkungen der kosmischen Strahlungsteilchen mit Materie und Feldern. Wir haben gelernt, dass es Himmelsobjekte gibt, die ihr Leuchtkraftmaximum im Gammabereich haben. Es ist praktisch unmöglich, die Physik dieser Objekte zu verstehen, ohne ihre Eigenschaften im Gammastrahlenbereich zu kennen. In the last decade the Compton mission has brought us a "golden age" of gamma-ray astronomy. The two telescopes COMPTEL and EGRET, which were built with the significant engagement of our institute, have made the first complete sky maps in gamma-ray astronomy, and have discovered almost 300 sources. We have learned that the most compact and energetic objects in the universe produce gamma rays. In gamma-ray astronomy we are mainly concerned with neutron stars, stellar and massive black holes, supernova remnants, and the interaction of cosmic rays with matter and fields. We have learned that there are objects that have their luminosity maximum at gamma-ray energies. It is practically impossible to understand the physics of these objects without considering their properties in the gamma-ray range.
Die vier CGRO-Teleskope haben bis zum Schluss Daten bester Qualität geliefert. Zur Illustration sind in Abb. III-15 die von COMPTEL und EGRET erzeugten Himmelskarten des Antizentrums aus der allerletzten Beobachtungsperiode im Mai 2000 mit denen der allerersten Beobachtungsperiode im Mai 1991 verglichen. Auch die von EGRET gemessene Lichtkurve des Krebspulsars aus der letzten Periode gibt den aus früheren Messungen bekannten Verlauf sehr gut wieder. The four CGRO instruments delivered data of the best quality up to the end. As an illustration, Fig. III-15 shows sky-maps of the Galactic anticentre generated with COMPTEL and EGRET data from the last observation period in May 2000, compared with the very first observation in May 1991. The light curve of the Crab pulsar measured by EGRET in the last period also corresponds very well to that known from earlier observations.
Nach dem Ende der Compton-Mission wird jetzt für eine kurze Zeit kein Gammastrahlen-Teleskop in Betrieb sein, aber die nächsten Meilensteine der Gamma-Astronomie stehen bereits jetzt fest: im April 2002 wird INTEGRAL - ein Niederenergie-Gamma-Astronomie-Projekt der ESA - gestartet und im Jahr 2006 ist der Start des NASA-Projektes GLAST (ein Super-EGRET-Experiment im Hochenergie-Bereich) geplant. Darüber hinaus werden am Institut große Anstrengungen unternommen, ein Nachfolgeprojekt mit Namen MEGA im COMPTEL-Energiebereich zu realisieren. Following the end of the Compton mission there is now a short period where no gamma-ray telescope is in operation, but the next milestones in gamma-ray astronomy are already fixed: April 2002 will see the launch of INTEGRAL - a low-energy gamma-ray astronomy project of ESA - and in 2006 the launch of the NASA project GLAST (a super-EGRET experiment for high energies) is planned. In addition great efforts are being made in the institute towards the realisation of a successor project, called MEGA, in the COMPTEL energy range.
INTEGRAL> wird in den kommenden fünf Jahren das wichtigste Projekt der Gammagruppe sein. Die Nutzlast dieser Satelliten-Mission besteht aus zwei Hauptteleskopen und zwei Monitoren. Das eine Hauptteleskop ist das Spektrometer SPI, das eine Spektralauflösung von etwa 2 keV bei mittlerer Winkelauflösung von 2.5° besitzt und damit die genaue Vermessung von Linienprofilen einzelner Himmelsobjekte ermöglicht; das andere Hauptteleskop ist der Imager IBIS, dessen Winkelauflösung 12 Bogenminuten betragen wird. Die beiden Monitore werden ergänzende Messungen der Gamma-Quellen im Röntgen- und im optischen Bereich ermöglichen. INTEGRAL> will be the most important project for the gamma-ray group in the next five years. The payload of this satellite mission consists of two main instruments and two monitors. One of the main telescopes is the spectrometer SPI, whose spectral resolution of 2 keV and moderate angular resolution of 2.5 degrees will allow exact measurements of line profiles in some astronomical sources. The other main telescope is the imager IBIS, whose angular resolution is 12 arc minutes. The two monitors will perform complementary measurements of gamma-ray sources in the X-ray and optical ranges.
Unser Institut war maßgeblich am Aufbau des Spektrometers SPI beteiligt. Es hat das Antikoinzidenzsystem entwickelt, das das Gesichtsfeld des Spektrometers definiert und den störenden Hintergrund stark reduziert. Im Sommer des Berichtsjahres waren alle Subsysteme des Spektrometers fertiggestellt und wurden der CNES in Toulouse zur Integration übergeben. Die Funktionsmessungen am kompletten Teleskop wurden dort gegen Ende des Berichtsjahres durchgeführt. Nach erfolgter Eichung im März/April 2001 wird das Teleskop dann der ESA übergeben werden. Our institute was significantly involved in the building of the spectrometer SPI. We developed the anticoincidence system, which defines the field-of-view of the instrument and strongly reduces the disturbing background. In the summer of 2000 all subsystems of the spectrometer were completed and delivered to CNES in Toulouse for integration. The functional tests of the complete telescope took place there at the end of the year. After the calibration in March/April 2001, the telescope will be delivered to ESA.
Abb. III-16 zeigt das Herzstück des Spektrometers, 19 hexagonale Germaniumdetektoren, die mit Hilfe eines elektrischen Kühlsystems auf etwa 85 K abgekühlt werden. Die Germanium-Kamera wurde in Toulouse entwickelt und gebaut. Abb. III-17 ist eine Fotografie des unteren Teiles des Antikoinzidenz-Subsystems, das insgesamt aus 91 Wismutgermanat-(BGO)-Szintillationskristallen und 181 Fotovervielfachern besteht. Fig. III-16 shows the core of the spectrometer, 19 hexagonal germanium detectors, which are cooled to about 85 K using an electrical cooling system. The germanium camera was developed and built in Toulouse. Fig III-17 shows a photograph of the lower section of the anticoincidence subsystem, which consists of a total of 91 bismuth germanate (BGO) scintillation crystals and 181 photomultipiers.
Parallel zu den Hardware-Entwicklungen der Teleskope wurde in Versoix bei Genf das INTEGRAL-Datenzentrum (ISDC) aufgebaut. Dort werden nach dem Start von INTEGRAL die Daten der vier Instrumente prozessiert, archiviert und an die beteiligten Wissenschaftler verteilt. Unser Institut war und ist am Aufbau des ISDC beteiligt. Insbesondere hat es die Software für die Erstellung von großräumigen Himmelskarten mit dem Spektrometer SPI entwickelt. In parallel with the hardware development of the telescopes, an INTEGRAL Data Centre (ISDC) is being built up at Versoix near Geneva. After launch, data from the four INTEGRAL instruments will be processed and archived there, and delivered to the scientists involved. Our institute has been and continues to be involved in the preparation of the ISDC. In particular it has developed the software for the generation of large-scale sky maps with the spectrometer SPI.
GLAST ist im März des Berichtsjahres von der NASA als nächstes Gammaastronomie-Observatorium nach COMPTON auf den Weg gebracht worden. Dieses Observatorium soll 2006 starten und den Energiebereich 20 MeV bis 300 GeV abdecken. Für das zentrale Instrument wurde der Experimentvorschlag der weltweiten "Silicon-GLAST"-Kollaboration ausgewählt. Obwohl das MPE an dem erfolgreichen Experimentvorschlag mitgewirkt hatte, musste auf eine Beteiligung am Bau des zentralen Instruments verzichtet werden, da die verfügbaren personellen und finanziellen Mittel anderen, eigenständigeren Projekten der Gammagruppe zugeordnet wurden. In March 2000 GLAST was started on its way towards becoming the next NASA gamma-ray observatory after COMPTON. This observatory should be launched in 2006 and cover the energy range 20 MeV to 300 GeV. For the central instrument the proposal of the worldwide "Silicon-GLAST" collaboration was chosen. Although MPE was involved in the successful proposal, it will not be able to take part in the development of the main instrument, since the available manpower and financial resources were allocated to other institute-led projects of the gamma group.
Das Institut ist lediglich durch drei Wissenschaftler im Status von "Assoziierten Investigatoren" beteiligt. Von diesen werden neben der wissenschaftlichen Mitarbeit Beiträge im Bereich der Kalibrierungs- und Analysesoftware und personellen Unterstützung bei Beschleunigertests, etc. erwartet. Für das kommende Jahr bereitet die Kollaboration einen Ballonflug vor, mit welchem das erste von 16 Modulen des Instruments unter realistischem Hintergrund kosmischer Strahlung und hoher Ereignisrate getestet werden soll. Three scientists from the gamma-ray group of our institute are nevertheless involved with "Associated Investigator" status. These people are expected, in addition to the scientific work, to contribute to the calibration and analysis software and take part in accelerator tests etc. For next year the collaboration is preparing a balloon flight, where the first of 16 instrument modules will be tested under realistic conditions of cosmic ray background and high event rate.
Eine instrumentelle Beteiligung am GLAST-Projekt hat sich in kleinerem Umfang durch die Beteiligung am Burst-Monitor ergeben, der von der Gammagruppe des MPE in Zusammenarbeit mit der Gammaburstgruppe vom Marshall-Space-Flight Center und der Universität von Alabama in Huntsville vorgeschlagen und von der NASA ausgewählt worden war. Der GBM soll den Energiebereich des Hauptinstrumentes für die Untersuchung von Gammabursts zu niedrigen Energien hin erweitern mit dem Ziel, gut aufgelöste Energienspektren im Energiebereich von 5 keV bis 30 MeV zu messen. Er besteht aus zwölf runden NaJ-Kristallscheiben für den niedrigen (5-1000 keV) und zwei zylindrischen BGO-Kristallen für den hohen (0,15-30 MeV) Energiebereich (siehe Abb. III-18). Neben der Energiemessung soll der GBM mit seinen in verschiedene Richtungen orientierten NaJ-Kristallplatten aus deren jeweiligen Zählraten auch die grobe Richtung von Gammabursts messen und diese dem Hauptinstrument mitteilen, so dass dieses auch bei nichterkannten oder schwächeren Bursts nach einer Reorientierung in der Lage ist, ein eventuelles Nachglühen bei hohen Energien zu vermessen. An instrumental involvement in the GLAST project has been possible though the burst monitor, which was proposed by the MPE gamma-ray group in collaboration with the gamma-ray burst group from Marshall Space Flight Center and the University of Alabama in Huntsville, and which NASA selected in Spring 2000. The GBM will extend the energy range of the main EGRET instrument for the study of gamma-ray bursts to lower energies, with the goal of obtaining well-resolved spectra from 5 keV to 30 MeV. It consists of 12 circular NaI crystal sections for low energies (5-1000 keV) and two cylindrical BGO crystals for the high-energy range (0.15 - 30 MeV) (Fig. III-18). As well as the energy measurement, the GBM should be able to determine approximate positions of gamma-ray bursts using the count rates in the various NaI crystals with their different orientations; these positions can be sent to the main instrument so that, after repointing, it will be also able to detect afterglows of unrecognised or weak bursts.
Die Entwicklung eines Teleskops für die "Mittel-Energie Gamma-Astronomie" (MEGA) im Energiebereich von  .,4- 50 MeV hat in diesem Jahr große Fortschritte gemacht. MEGA registriert gamma-Photonen durch Comptonstreuung oder Paarerzeugung und bildet die in beiden Arten von Wechselwirkungen erzeugten niederenergetischen Elektronen in einem Stapel von Silizium-Streifendetektoren (Spurdetektor) ab. Die Absorption des gestreuten Photons, bzw. des e+e--Paares, wird in einem CsI-Kalorimeter dreidimensional aufgezeichnet. Der komplette Satz an Messgrößen für jedes registrierte Ereignis ermöglicht eine direkte Rekonstruktion der Richtung, Energie und eventuell der Polarisation des einfallenden Photons. Der Labor-Prototyp des MEGA-Teleskops wird nach seiner vollständigen Fertigstellung 11 Lagen von je 3 x 3 Si-Streifenzählern und 16 CsI-Modulen von unterschiedlicher Tiefe enthalten. Obwohl der Aufbau des Prototyp-Detektors noch nicht abgeschlossen ist, konnten die ersten Messungen mit radioaktiven Präparaten sowohl an den Einzel-Detektoren als auch am teilweise integrierten System durchgeführt werden. Die in Abb. III-19 dargestellten Quellen im Nahfeld des Teleskops haben die wesentlichen Eigenschaften, wie z.B. die Energie- und Ortsauflösung der Detektorkomponenten, bestätigt. Begleitet wird die Entwicklung des Detektors mit umfangreichen Monte-Carlo-Simulationen für unterschiedliche Konfigurationen der Detektoreinheiten und mit der Entwicklung von neuartigen Abbildungsmethoden. The development of a telescope for "medium energy gamma-ray astronomy" (MEGA) in the energy range 0.4 - 50 MeV made great strides this year. MEGA will detect gamma-ray photons by Compton scattering or pair-production and will track the low-energy electrons generated in both processes in a stack of silicon-strip detectors. The absorption of the scattered photon or the e+e- pair is registered in three dimensions in a CsI calorimeter. The complete set of measured parameters for each detected event enables a direct reconstruction of the direction, energy and possibly the polarization of the incoming photon. The laboratory prototype of the MEGA telescope will consist, in its final form, of 11 layers each with 3 x 3 silicon strip detectors and 16 CsI modules of various thickness. Although the construction of the prototype detector is not yet complete, it has been possible to make the first measurements with radioactive sources both for the individual detectors and for the partly integrated system. Using sources in the near field of the telescope, as shown in Fig. III-19, it has been possible to confirm the essential properties, such as the energy and positional resolution of the individual detectors. The development of the detectors has been accompanied by extensive Monte-Carlo simulations for different configurations of the detector elements and the development of new imaging methods.
Für die Planung einer Satellitenmission wurden im Berichtsjahr umfangreiche Studien zum Konzept, Betrieb und zur Sensitivität eines MEGA-Teleskops im Orbit durchgeführt. Die Anforderung an dieses neue Teleskop im spektralen Übergangsbereich von der harten Röntgenstrahlung (< 400 keV) zum reinen Paarerzeugungsbereich oberhalb von 50 MeV war primär eine Verbesserung der Sensitivität um mindestens einen Faktor 10 gegenüber den früheren Survey-Instrumenten COMPTEL und EGRET. Eine solche Verbesserung wird in den kommenden Jahren dringend notwendig werden um die, nach dem Ende von COMPTEL, offensichtliche "Lücke" in den multispektralen astronomischen Beobachtungen zu schließen. Die kommenden Missionen INTEGRAL und GLAST werden erst durch Messungen im MEGA-Bereich komplettiert und verbunden. For the planning of a satellite mission, we have undertaken extensive studies of the concept, operation and sensitivity of a MEGA telescope in orbit. The requirement for this new telescope in the spectral transition region from hard X-rays (<400 keV) to the pure pair-production region above 50 MeV was primarily an improvement in sensitivity by a factor 10 over that of the earlier survey instruments COMPTEL and EGRET. Such an improvement will be urgently required in the coming years in order to close the conspicuous "hole" in multiwavelength observations after the end of COMPTEL. The upcoming missions INTEGRAL and GLAST will only be completed with measurements in the MEGA range.
Die MEGA-Studien gipfelten im Vorschlag für eine Kleinsatelliten-Mission, der im August 2000 beim DLR eingereicht und im September vor dem Gutachterausschuss präsentiert wurde. MEGA wurde dabei von einer, unter Führung des MPE gebildeten, internationalen Kollaboration von Gruppen aus den USA und Frankreich unterstützt. Im Ergebnis wurde MEGA als zweites Projekt nach dem Astrometrie-Projekt DIVA eingestuft und soll entsprechend weiterentwickelt werden, um zu einem künftigen Zeitpunkt einsetzbar zu werden. The MEGA studies peaked with the proposal for a Small Satellite (Kleinsatellit) Mission, which was submitted to the DLR in August 2000 and presented to the selection committee in September. MEGA was supported by an international collaboration of groups from the USE and France, convened under the leadership of MPE. In the selection results MEGA was ranked as the second project after the astrometry project DIVA, and should be correspondingly developed further in order to be realisable at a future time.
Mit OPTIMA (Optical Pulsar Timing Analyser) wurde ein empfindliches optisches Hochgeschwindigkeitsphotometer entwickelt, um Messungen an Pulsaren und anderen schnell variablen optischen Quellen durchzuführen. OPTIMA wurde in Messkampagnen am 3,5-Meter-Teleskop auf dem Calar Alto (26. Dez. 1999 - 3. Jan. 2000), am 2,2-Meter-Teleskop auf La Silla (5. Juni - 8. Juni 2000) und am 1,35-Meter-Teleskop auf dem Skinakas (4. Juli - 8. Juli 2000) eingesetzt. Diese Messungen werden bisher nur im Weißlicht (Bereich 450 - 950 nm) ohne Filter durchgeführt. Messziele der Kampagne im Januar waren der Pulsar im Krebsnebel (primär zur Verifikation des Messgerätes) und der Hochenergie-Pulsar Geminga. Ergebnisse dieser Messungen werden im wissenschaftlichen Teil des Berichts beschrieben. Im Juni/Juli wurden neben der Beobachtung von kataklysmischen Variablen (für HU Aqr siehe im wissenschaftlichen Teil) auch gemeinsame Beobachtungen im optischen Bereich und mit dem Röntgensatelliten RXTE durchgeführt. Vor allem mit der Messung vom Skinakas-Observatorium gelangen sehr gute gleichzeitige Beobachtungen einer erst im Frühjahr 2000 entdeckten Röntgenquelle, RXJ 1118+48. In dieser transienten Quelle befindet sich wahrscheinlich ein akkretierendes schwarzes Loch im Umlauf um einen normalen Stern. Im Röntgenbereich waren schon am Anfang des Ausbruchs starke, quasiperiodische Intensitätsschwankungen gemessen worden. In der jetzt von OPTIMA gemessenen optischen Emission von RXJ 1118+48 zeigen sich auch starke Variationen. Die Analyse der Korrelation zwischen den Röntgen- und optischen Emissionen wird gegenwärtig ausgewertet und ist noch nicht abgeschlossen. With OPTIMA (Optical Pulsar Timing Analyser), a sensitive optical high-speed photometer has been developed in order to make measurements of pulsars and other rapidly varying sources. OPTIMA was operated in campaigns on the 3.5m telescope on Calar Alto (26 Dec 1999 - 3 Jan 2000), on the 2.2m telescope on La Silla (5 - 8 June 2000) and on the 1.35m telescope on Skinakas (4 - 8 July 2000). These measurements were up to now only performed in white light (wavelength range 450-950 nm) without a filter. The goal of the January campaign was the Crab pulsar (primarily to verify the instrument performance) and the high-energy pulsar Geminga. Results of these observations are described in the scientific results part of this report. In June/July observations of cataclysmic variables (for HU Aqr see the science section) were performed as well as simultaneous observations in the optical and with the X-ray satellite RXTE. In particular the measurements from the Skinakas Observatory resulted in very good simultaneous observations of the newly discovered (in April 2000) X-ray source RXJ 1118+48. This transient source probably consists of an accreting black hole in orbit around a normal star. In X-rays, strong quasi-periodic intensity variations had already been detected at the start of the outburst. Strong variations are also found in the optical emission from RXJ 1118+48 observed by OPTIMA. The analysis of correlations between X-ray and optical emission is at present underway and not yet complete.
Die GRO-Projekte COMPTEL und EGRET werden durch Mittel der DARA/DLR gefördert unter 50.QV.90968 und 50.QV.90955. INTEGRAL wird von der DLR unter 50.OG.9503.0, GLAST-Burst-Monitor unter 50.QV.0003 und MEGA unter 50.TT.97389 gefördert. Wir wurden aus Mitteln der Verbundforschung unterstützt (50.OR.9701.4). The GRO projects COMPTEL and EGRET are supported by DARA/DLR under 50.QV.90968 and 50.QV.90955. INTEGRAL is supported by DLR under 50.OG.9503.0, GLAST Burst Monitor under 50.QV.0003, and MEGA under 50.TT.97389. We have received support from the Verbundforschung (50.OR.9701.4).
Abb. III-15: Vergleich von COMPTEL und EGRET Antizentrums-Daten aus der letzten Beobachtungsperiode im Mai 2000 mit denen der ersten Beobachtungsperiode im Mai 1991. COMPTEL sieht im Antizentrum nur den Krebs-Supernova-Überrest und auch den Quasar PKS 0528+134; EGRET sieht zusätzlich Geminga.

Fig. III-15: Comparison of COMPTEL and EGRET sky maps of the Galactic anticentre from the last observation period in May 2000 with that from the first period in May 1991. COMPTEL detects the Crab supernova remnant and the quasar PKS 0528+134, and EGRET detects Geminga in addition.


Abb. III-18: Schemabild der Detektoreinheiten des GLAST-Burst-Monitors; links: zwei NaJ-Detektoren, rechts: ein Wismutgermanat-Detektor.

Fig. III-18: Schematic diagram of the detector elements of the GLAST Burst Monitor. Left: two NaI detectors, right: a bismuth germanate detector.

Abb. III-16: Kamera des Spektrometers SPI, bestehend aus 19 hexagonalen Germanium-Detektoren.

Fig. III-16: Camera of the spectrometer SPI, consisting of 19 hexagonal Germanium detectors.


Abb. III-17: Fotografie des unteren Teils des SPI-Antikoinzidenz-Subsystems.

Fig. III-17: Photograph of the lower section of the SPI anticoincidence subsystem.

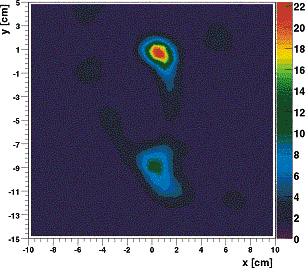

Abb. III-19: Abbildung von zwei radioaktiven Quellen (133Ba, 356 keV, Intensitätsverhältnis 3:1) im Nahfeld des MEGA-Teleskops.

Fig III-19: Image of two radioactive sources (133Ba, 356 keV, ratio of intensities 3:1) in the near field of the MEGA telescope.
