# Calibrated Bayes for X-ray spectra

Johannes Buchner (MPE)

http://arxiv.org/abs/1402.0004

• models with 3-30 parameters, numerical
• Author of
• APEMoST (PTMCMC)
• PyMultiNest
• BXA (+50 other projects on github)
• Bayesian inference since 7 years
• MCMC/nested sampling techniques
• before: optical/radio, now: X-ray AGN (spectra, LF)

## Overview

1. Introduction to model selection (graphically)
2. Methods for computing model selection
3. Calibrated Bayes, application to X-ray spectra
4. Current project: field inference

## Bayes theorem

$A\smallfrown B = B\smallfrown A \\ p(A\smallfrown B) = p(B\smallfrown A) \\ p(A|B)p(B) = p(B|A)p(A) \\ p(A|B) = \frac{p(B|A)p(A)}{p(B)} \\ p(\theta|D) = \frac{p(D|\theta)p(\theta)}{p(D)}$

Is this interpretation allowed?

## The likelihood function $p(D|\theta) = \cal{L}$

A process has N outcomes
• propensity/tendency for the process to produce a spectific outcome D?
• In the long run: frequency of D occurring
• Example: Gaussian process $$\cal{L} \sim \exp\left\{ -\frac{1}{2}\left(\frac{d-\mu}{\sigma}\right)^{2}\right\}$$

## The problem with likelihoods

Data: squeaky noise
1. Cat
• Meows
• walks around on stairs
• walks around on floor
2. Poltergeist
• makes squeaky noise
• Can construct a likelihood that produces always and only the observed data $\cal{L} = 1$
• But process not very probable - combine
• Interpretation of the data in context of other information (Discussion & Results)

## BI as update rule

$p(\theta|D) \sim p(\theta) \prod_{i}\exp\left\{ -\frac{1}{2}\left(\frac{d_{i}-\mu}{\sigma}\right)^{2}\right\}$
• More data: add terms to the right
• First term: absence of data, starting point for update rule

## Discrete introduction to BI:

• evaluate likelihood at every point
• how prone is the process to produce the observed data
• Compute relative importance: $$\cal{L} / \overline{{\cal L}}$$
• Grab those that
make up 90% of $\sum{\cal L}$
• $Z = \overline{{\cal L}}$ "evidence" is average likelihood

## How to place grid points

• Result is dependent on placement
• Equal spacing in $\theta_1$ or in $\log \theta_1$.
• Choice of spacing is called "prior"
• coin = investment in computing there, put coins where it is worthwhile

## Two models

• Compare two parameter spaces by $$\left.\sum{{\cal L}}\right|_{M1} / \left.\sum{{\cal L}}\right|_{M2}$$
• How many coins to put in M1, M2?
• model prior

## Parameter Estimation vs. Model Comparison

• prior is measure, rule of averaging, deformation of space to "natural variables", investment in/weighting of sub-regions
• most common priors: uniform, log-uniform.
• model priors are relative size of spaces
• Remove coins contributing less than 10%.
• Under Bayesian inference, same problem:
• comparing bags of hypotheses

## Prior transforms

$\int_a^b{f(x)g(x) dx} = \int_0^1{f(G^{-1}(u))~ du}$

where $G$ is the cumulative distribution of $g$:

$G(x) = \int_{-\infty}^{x}{g(x') dx'}, G(a) = 0, G(b) = 1$

• transformation through inverse of CDF
• compresses unimportant regions
• "native units": $P(\theta|D)\propto \int_0^1{P(D|u) du}$

## Exploration

• for dim≤3, grids are best
• otherwise,
• sparse grids or
• randomized methods (MCMC, nested sampling)

## MCMC Exploration

• Missing ingredient: transition kernel
• tune to the problems
• Fraction of visits ~ converges to ~ probability of hypothesis
• Where does chain spend 90% of its visits

## Comparing models

• With MCMC: RJMCMC
• Does not work: too difficult to make a good transition kernel
• How else? Just compute that integral for every space.

## MCMC problems

• Need transition kernel that can overcome separated maxima in likelihood
• Solutions: PTMCMC
• high-dim: acceptance can be very small, good region is tiny volume
• Solutions: HMCMC

## nested sampling idea

• MCMC: only consider likelihood ratios. Integration by vertical slices
• nested sampling: compute geometric size at various likelihood thresholds
• orthogonal, unique re-ordering of volume by likelihood
$$\sum\underbrace{\text{Shrinkage}\times\text{Likelihood}}_{\text{Importance of shell}}=Z$$

## nested sampling algorithm

• remove one, volume shrinks by 1/200.
• draw a new one excluding the removed volume
• Unique ordering of space required: via likelihood
draw a new uniformly random point, with higher likelihood
(the crux of nested sampling)
• Scanning up vertically, done at some point
• converges (flat at highest likelihood)

## Missing ingredients

• Insert tuned transition kernel into MCMC
• Insert constrained drawing algorithm into nested sampling
• General solutions: MultiNest, MCMC, HMCMC, Galilean, RadFriends
• Buchner (2014, submitted) - Statistical tests for nested sampling and the RadFriends algorithm

• Use existing points to guess contour
• Expand contour a little bit
• Draw uniformly from contour
• Reject points below likelihood threshold

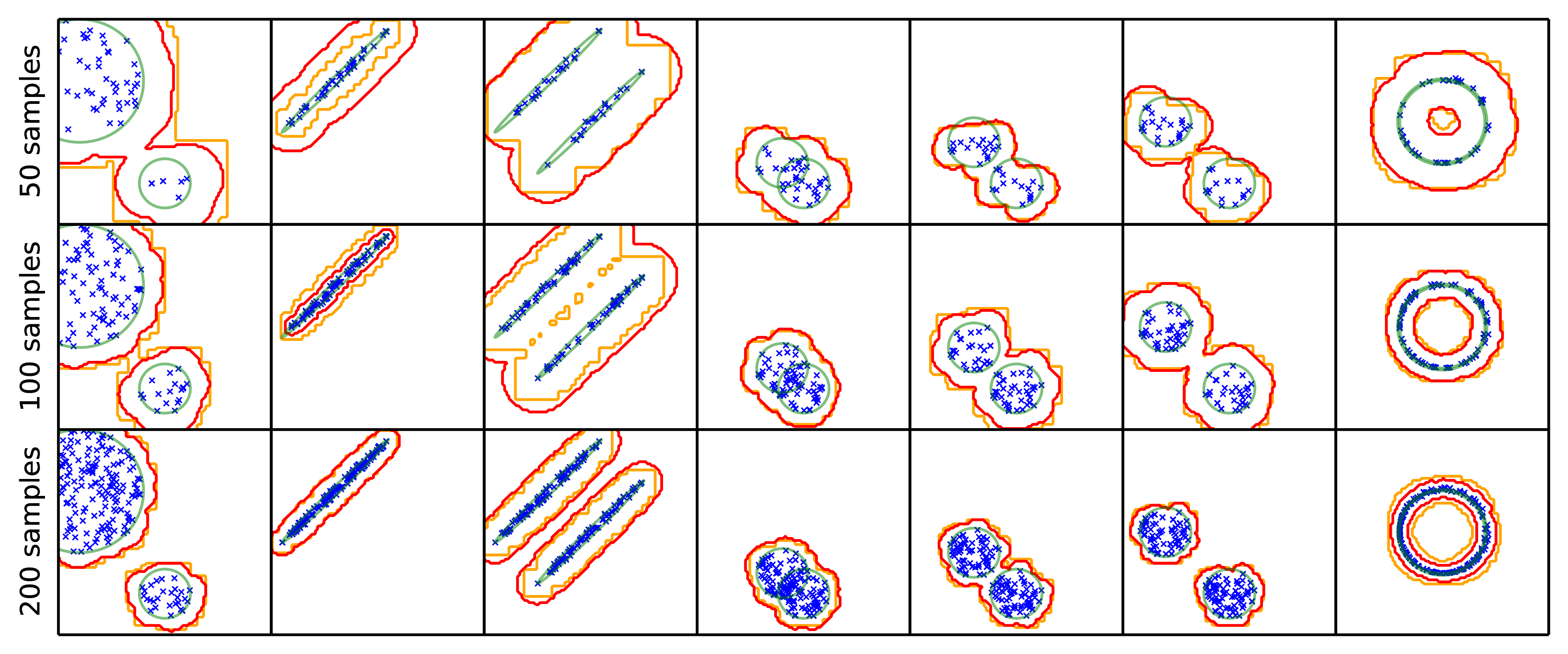

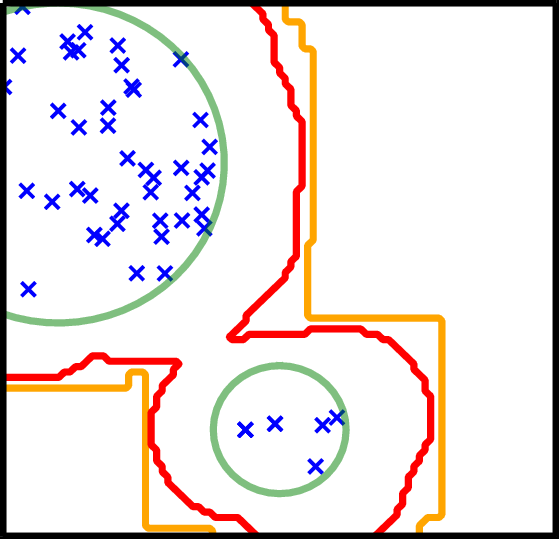

• RadFriends: Compute distance at which every point has a neighbor. Bootstrap (Leave out) for safety.
• MultiNest clusters and uses ellipses

• RadFriends: Compute distance at which every point has a neighbor. Bootstrap (Leave out) for safety.
• MultiNest clusters and uses ellipses
• ## What to do with Z

• Z1, Z2 $$\frac{p(M1|D)}{p(M2|D)}=\frac{Z1\cdot p(M1)}{Z2\cdot p(M2)}$$ $$\frac{p(M_{1}|D)}{\sum p(M_{i}|D)}=\frac{Z_{1}\cdot p(M_{i})}{\sum_{i}Z_{i}\cdot p(M_{i})}$$
• model priors: leave to reader or motivated by theory
• Discard highly improbable model or marginalise
• Does $\frac{p(M1|D)}{p(M2|D)} = 3/1$ mean M2 is correct in a quarter of the cases?

## Method summary

Problems with

• Multiple maxima
• low information state
• peculiar shapes in likelihood
• numerical likelihood
• Parameter estimation:
• low-dim:
Nested sampling - MultiNest
• high-dim: HMCMC with multiple chains - Stan
• Model selection:
• low-dim:
Nested sampling - MultiNest
• high-dim: fund me! NS + some MCMC variants -- experimental work needed!

## Alternative methods for model selection

As $n\rightarrow\infty$, information well constrained in a
• single
• prior-independent
• Gaussian-shaped maximum
• inside the parameter space
• $\Delta \left(- 2\log\cal{L}\right) \sim \chi^2$ distributed
• LaPlace Approximation, Wilks' theorem, F-test, LR-test, BIC, AIC
• Unification: Watanabe (2014), WBIC/WAIC.
• "Wilks's theorem should not apply — YET it works!!"
• Narrow field of validity. General solution is computing Z.

## II: Calibrated Bayes

• BI is theoretically motivated. Is it any good?
• Any application has approximations and assumptions in
• model, distributions, data extraction, prior
• Motivation for Bayes factor/level to cut at (free parameter?)

## Calibrated Bayes

Questions of Frequentists/Likelihoodists to their method:
1. How efficient is the method at ruling out?
2. What in the data drives the result (strength)?
• Is the method robust against changes in the data, prior choice
3. How often does the method give the wrong result?
4. How does the method behave when the model is wrong
• due to outliers, systematic effects from data reduction
5. How does failure look like?
If you answer these questions, you are doing calibrated Bayes.

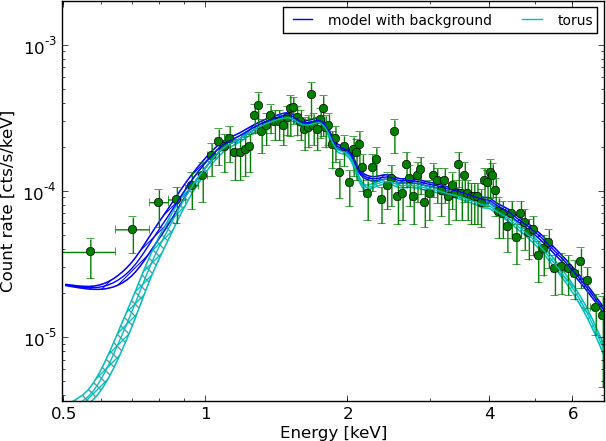

## Application: X-ray spectra

• Buchner et al. (2014) - X-ray spectral modeling of the AGN obscuring region in the CDFS: Bayesian model selection

## Efficiency of model comparison

true model $\rightarrow$ assigned model

1. A $\rightarrow$ A
2. B $\rightarrow$ B
3. A $\rightarrow$ B
4. B $\rightarrow$ A
• minimize error frequency (3 + 4, red)
• Frequentist analysis?
• vary data, analyse method: frequentist $D|H$
• vary hypotheses, analyse data: Bayesian $H|D$

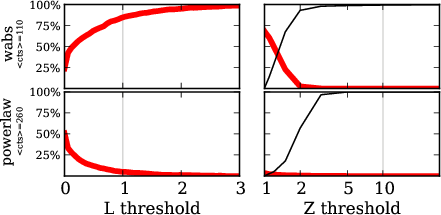

## Comparison $\hat{L}$ vs. $Z$

red: wabs $\rightarrow$ powerlaw

red: powerlaw $\rightarrow$ wabs

Appendix 2, Buchner et al. (2014)

## Model for all AGN

• Combine data sets by multiplicating Z $$\frac{p(M1|D,D')}{p(M2|D,D')}=\frac{Z1\cdot Z1'\cdot p(M1)}{Z2\cdot Z2'\cdot p(M2)}$$
• Is a single object / data set dominant?
• Bootstrap multiplication
• M1 is preferred in 100% of bootstraps -- not a peculiar sample. (Addressing: Is the method robust?)

## Robustness

• BI is not robust (technical term)
• because likelihood is not robust
"outliers" are taken seriously, all information is used (sensitive).

## Behaviour when model is wrong

posterior becomes very narrow and sensitive

## Behaviour when model is wrong

• flying blind with BI.
• likelihood, Z not informative for goodness of fit
• need outside help:
• visualisation, sanity checks, predictive posterior, ...
• posterior goes to borders of the parameter space, unphysical values
• posterior becomes very narrow

## Fixes

• Arrogant Bayesian answer: Just include the missing feature in the model
• general approach to make BI robust, but high-dim
• Remove potentially contaminated data (where model does not apply)

## Model discovery

• BI works only in a closed system (relative probabilities).
• AI: closed world assumption. Everything else does not exist
• can not break out of scheme. Humans can; creativity & expert knowledge required.
• Deductive reasoning vs Inductive reasoning

### Summary: Calibrated Bayes

Questions to the method (including assumptions/approximations):
1. How efficient is the method at ruling out?
2. What in the data drives the result (strength)?
• Is the method robust against changes in the data, prior choice
3. How often does the method give the wrong result?
4. How does the method behave when the model is wrong?
• due to outliers, systematic effects from data reduction
5. How does failure look like?
6. Go beyond the current model and discover a new model?

If you answer these questions, you are doing calibrated Bayes.
Using non-Bayesian methods (simulations, visualisation, p-values).

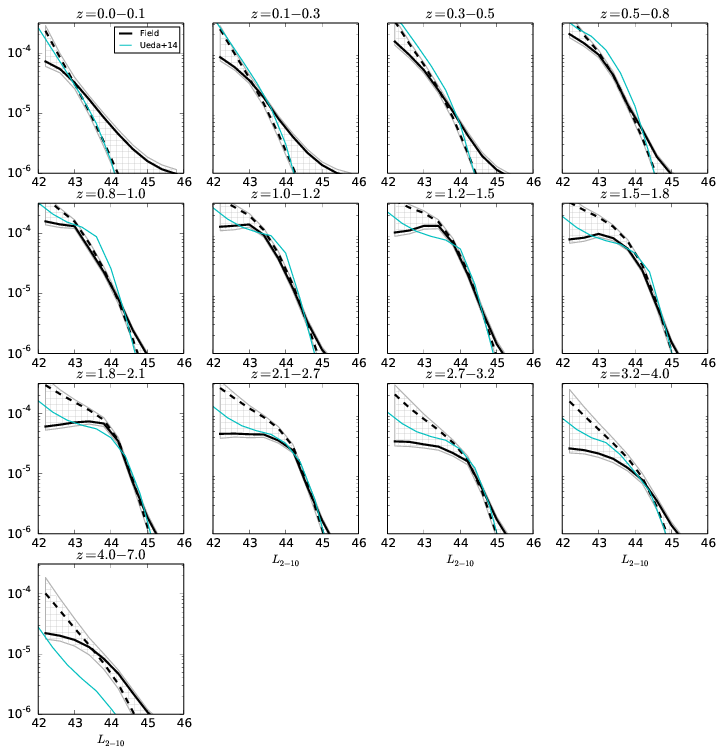

## Current project: AGN LF

• number density distribution $f(L_X, z, N_H)$
• selection function known, but not analytic
• probability clouds -- visualisation (binning) difficult

## Model: Smooth 3d field

• value constant, slope constant
• a way to encode a smoothness prior
• PE with HMCMC (Stan), 1000 dim.
