Gamma-ray Burst 060707

(All information courtesy of the instrument teams.)

Previous IAU Circulars

none

Results of Observations

GCN/BACODINE POSITION NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:30:58 UT
NOTICE_TYPE:     Swift-BAT GRB Position
TRIGGER_NUM:     217704,   Seg_Num: 0
GRB_RA:          357.079d {+23h 48m 19s} (J2000),
                 357.163d {+23h 48m 39s} (current),
                 356.434d {+23h 45m 44s} (1950)
GRB_DEC:         -17.923d {-17d 55' 21"} (J2000),
                 -17.887d {-17d 53' 11"} (current),
                 -18.201d {-18d 12' 02"} (1950)
GRB_ERROR:       3.00 [arcmin radius, statistical only]
GRB_INTEN:       17604 [cnts]    Image_Peak=380 [image_cnts]
TRIGGER_DUR:     4.096 [sec]
TRIGGER_INDEX:   302     E_range: 25-100 keV
BKG_INTEN:       154767 [cnts]
BKG_TIME:        77358.69 SOD {21:29:18.69} UT
BKG_DUR:         40 [sec]
GRB_DATE:        13923 TJD;   188 DOY;   06/07/07
GRB_TIME:        77419.49 SOD {21:30:19.49} UT
GRB_PHI:         -165.33 [deg]
GRB_THETA:        44.95 [deg]
SOLN_STATUS:     0x3
RATE_SIGNIF:     11.44 [sigma]
IMAGE_SIGNIF:    8.58 [sigma]
MERIT_PARAMS:     +1  +0  +0  +2  +2  +2  +0  +0 +41  +1
SUN_POSTN:       106.94d {+07h 07m 47s}  +22.52d {+22d 31' 26"}
SUN_DIST:        114.53 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      240.98d {+16h 03m 55s}  -25.42d {-25d 25' 26"}
MOON_DIST:       104.32 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       61.97,-72.79 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      350.04,-15.25 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Coordinates.
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 101.91,-12.03 [deg].

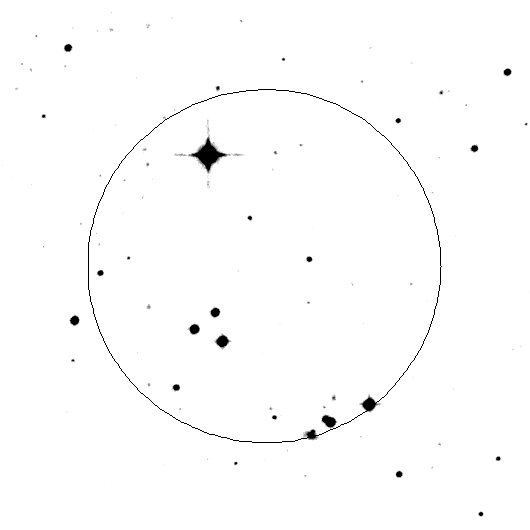

red DSS finding chart ps-file

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:33:19 UT
NOTICE_TYPE:     Swift-XRT Nack-Position
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.118d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.903d {-17d 54' 11"} (J2000)
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  77540.97 SOD {21:32:20.97} UT,   121.5 [sec] since BAT Trigger Time
COUNTS:          4    Min_needed= 20
STD_DEV:         0.00   Max_StdDev_for_Good=28.44 [arcsec]
PH2_ITER:        1    Max_iter_allowed= 4
ERROR_CODE:      1
COMMENTS:        SWIFT-XRT Nack Position.
COMMENTS:        No source found in the image.

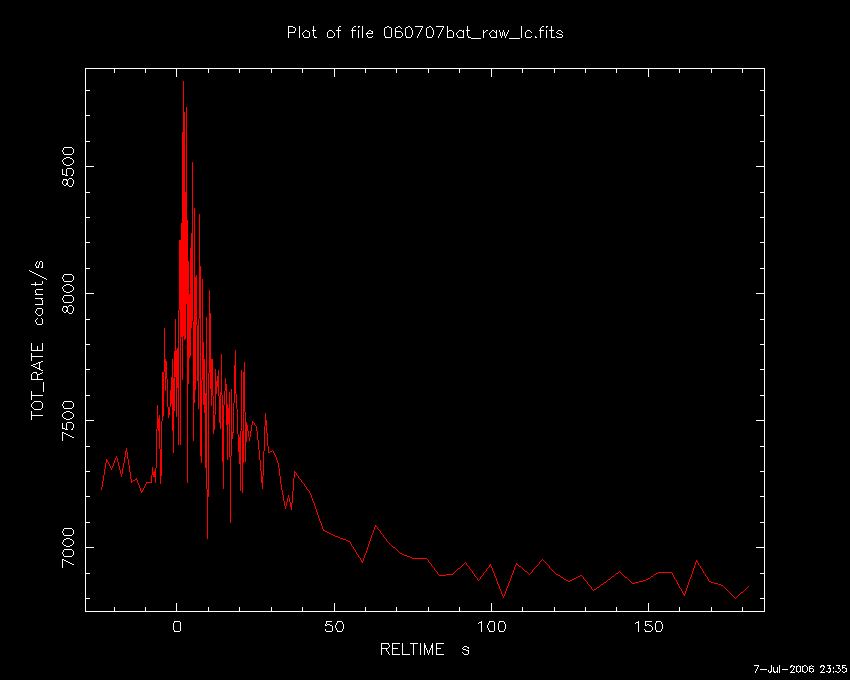

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:35:03 UT
NOTICE_TYPE:     Swift-BAT GRB Lightcurve
TRIGGER_NUM:     217704,   Seg_Num: 0
GRB_RA:          357.079d {+23h 48m 19s} (J2000),
                 357.163d {+23h 48m 39s} (current),
                 356.434d {+23h 45m 44s} (1950)
GRB_DEC:         -17.923d {-17d 55' 21"} (J2000),
                 -17.887d {-17d 53' 11"} (current),
                 -18.201d {-18d 12' 02"} (1950)
GRB_DATE:        13923 TJD;   188 DOY;   06/07/07
GRB_TIME:        77419.49 SOD {21:30:19.49} UT
TRIGGER_INDEX:   302
GRB_PHI:         -165.33 [deg]
GRB_THETA:        44.95 [deg]
DELTA_TIME:      0.00 [sec]
TRIGGER_DUR:     4.096 [sec]
SOLN_STATUS:     0x3
RATE_SIGNIF:     11.44 [sigma]
IMAGE_SIGNIF:    8.58 [sigma]
LC_URL:          sw00217704000msb.lc
SUN_POSTN:       106.95d {+07h 07m 47s}  +22.52d {+22d 31' 25"}
SUN_DIST:        114.53 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.02d {+16h 04m 05s}  -25.43d {-25d 25' 56"}
MOON_DIST:       104.29 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       61.97,-72.79 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      350.04,-15.25 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Lightcurve.
COMMENTS:
COMMENTS:        The next comments were copied from the BAT_POS Notice:
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 101.91,-12.03 [deg].

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:35:29 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.118d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.903d {-17d 54' 11"} (J2000)
POINT_ROLL:      72.835d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  77544.51 SOD {21:32:24.51} UT,   125.0 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        1.805
N_STARS:         90
X_OFFSET:        250 [pixels]
Y_OFFSET:        732 [pixels]
X_MAX:           1209 [pixels]
Y_MAX:           1691 [pixels]
DET_THRESH:      11
PHOTO_THRESH:    6
SL_URL:          sw00217704000msufc0125.fits
SUN_POSTN:       106.95d {+07h 07m 47s}  +22.52d {+22d 31' 25"}
SUN_DIST:        114.49 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.03d {+16h 04m 06s}  -25.43d {-25d 26' 00"}
MOON_DIST:       104.32 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       62.09,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:43:36 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.117d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.905d {-17d 54' 18"} (J2000)
ROLL:            72.838d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  77650.13 SOD {21:34:10.13} UT,   230.6 [sec] since BAT Trigger Time
FILTER:          3, V
EXPOSURE_ID:     174000851
X_OFFSET:        570 [pixels]
Y_OFFSET:        1052 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       730
Y_GRB_POS:       1212
BINNING_INDEX:   1
IM_URL:          sw00217704000msuni0230.fits
SUN_POSTN:       106.95d {+07h 07m 49s}  +22.52d {+22d 31' 23"}
SUN_DIST:        114.50 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.11d {+16h 04m 25s}  -25.45d {-25d 27' 01"}
MOON_DIST:       104.25 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       62.08,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:44:13 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.117d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.905d {-17d 54' 18"} (J2000)
ROLL:            72.838d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  77650.13 SOD {21:34:10.13} UT,   230.6 [sec] since BAT Trigger Time
FILTER:          3, V
EXPOSURE_ID:     174000851
X_OFFSET:        570 [pixels]
Y_OFFSET:        1052 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       730
Y_GRB_POS:       1212
BINNING_INDEX:   1
IM_URL:          sw00217704000msuni0230.fits
SUN_POSTN:       106.95d {+07h 07m 49s}  +22.52d {+22d 31' 23"}
SUN_DIST:        114.50 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.11d {+16h 04m 27s}  -25.45d {-25d 27' 05"}
MOON_DIST:       104.24 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       62.08,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

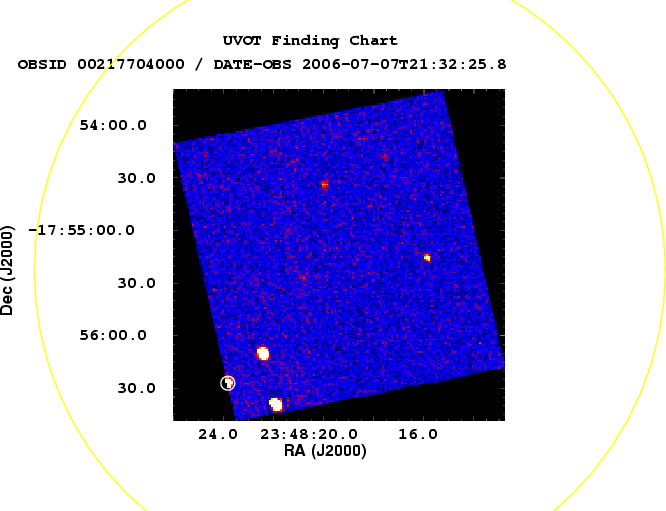

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:36:05 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.118d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.903d {-17d 54' 11"} (J2000)
ROLL:            72.835d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  77544.51 SOD {21:32:24.51} UT,   125.0 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     174000745
X_OFFSET:        570 [pixels]
Y_OFFSET:        1052 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       730
Y_GRB_POS:       1212
BINNING_INDEX:   1
IM_URL:          sw00217704000msuni0125.fits
SUN_POSTN:       106.95d {+07h 07m 47s}  +22.52d {+22d 31' 25"}
SUN_DIST:        114.49 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.03d {+16h 04m 08s}  -25.43d {-25d 26' 04"}
MOON_DIST:       104.32 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       62.09,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:37:27 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.118d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.903d {-17d 54' 11"} (J2000)
ROLL:            72.835d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  77544.51 SOD {21:32:24.51} UT,   125.0 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     174000745
X_OFFSET:        570 [pixels]
Y_OFFSET:        1052 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       730
Y_GRB_POS:       1212
BINNING_INDEX:   1
IM_URL:          sw00217704000msuni0125.fits
SUN_POSTN:       106.95d {+07h 07m 48s}  +22.52d {+22d 31' 25"}
SUN_DIST:        114.49 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.05d {+16h 04m 11s}  -25.44d {-25d 26' 14"}
MOON_DIST:       104.31 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       62.09,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

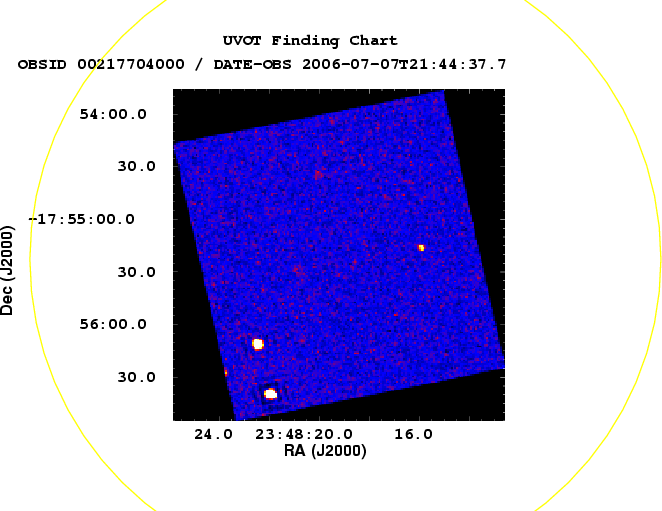

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:46:36 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.117d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.905d {-17d 54' 18"} (J2000)
POINT_ROLL:      72.838d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  78276.43 SOD {21:44:36.43} UT,   856.9 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        2.632
N_STARS:         89
X_OFFSET:        250 [pixels]
Y_OFFSET:        732 [pixels]
X_MAX:           1209 [pixels]
Y_MAX:           1691 [pixels]
DET_THRESH:      13
PHOTO_THRESH:    7
SL_URL:          sw00217704000msufc0856.fits
SUN_POSTN:       106.96d {+07h 07m 49s}  +22.52d {+22d 31' 22"}
SUN_DIST:        114.50 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.14d {+16h 04m 33s}  -25.46d {-25d 27' 23"}
MOON_DIST:       104.22 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       62.08,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:37:58 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.118d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.903d {-17d 54' 11"} (J2000)
POINT_ROLL:      72.835d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  77544.51 SOD {21:32:24.51} UT,   125.0 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        1.805
N_STARS:         90
X_OFFSET:        250 [pixels]
Y_OFFSET:        732 [pixels]
X_MAX:           1209 [pixels]
Y_MAX:           1691 [pixels]
DET_THRESH:      11
PHOTO_THRESH:    6
SL_URL:          sw00217704000msufc0125.fits
SUN_POSTN:       106.95d {+07h 07m 48s}  +22.52d {+22d 31' 24"}
SUN_DIST:        114.49 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.05d {+16h 04m 12s}  -25.44d {-25d 26' 18"}
MOON_DIST:       104.30 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       62.09,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:47:50 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.117d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.905d {-17d 54' 18"} (J2000)
POINT_ROLL:      72.838d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  78276.43 SOD {21:44:36.43} UT,   856.9 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        2.632
N_STARS:         89
X_OFFSET:        250 [pixels]
Y_OFFSET:        732 [pixels]
X_MAX:           1209 [pixels]
Y_MAX:           1691 [pixels]
DET_THRESH:      13
PHOTO_THRESH:    7
SL_URL:          sw00217704000msufc0856.fits
SUN_POSTN:       106.96d {+07h 07m 49s}  +22.52d {+22d 31' 22"}
SUN_DIST:        114.50 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.15d {+16h 04m 36s}  -25.46d {-25d 27' 32"}
MOON_DIST:       104.21 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       62.08,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:48:15 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.117d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.905d {-17d 54' 18"} (J2000)
ROLL:            72.838d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  78276.43 SOD {21:44:36.43} UT,   856.9 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     174001477
X_OFFSET:        570 [pixels]
Y_OFFSET:        1052 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       730
Y_GRB_POS:       1212
BINNING_INDEX:   1
IM_URL:          sw00217704000msuni0856.fits
SUN_POSTN:       106.96d {+07h 07m 50s}  +22.52d {+22d 31' 22"}
SUN_DIST:        114.50 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.15d {+16h 04m 37s}  -25.46d {-25d 27' 36"}
MOON_DIST:       104.21 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       62.08,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:49:23 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.117d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.905d {-17d 54' 18"} (J2000)
ROLL:            72.838d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  78276.43 SOD {21:44:36.43} UT,   856.9 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     174001477
X_OFFSET:        570 [pixels]
Y_OFFSET:        1052 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       730
Y_GRB_POS:       1212
BINNING_INDEX:   1
IM_URL:          sw00217704000msuni0856.fits
SUN_POSTN:       106.96d {+07h 07m 50s}  +22.52d {+22d 31' 21"}
SUN_DIST:        114.50 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.16d {+16h 04m 39s}  -25.46d {-25d 27' 44"}
MOON_DIST:       104.20 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       62.08,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:53:28 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.117d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.905d {-17d 54' 18"} (J2000)
POINT_ROLL:      72.838d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  78381.59 SOD {21:46:21.59} UT,   962.1 [sec] since BAT Trigger Time
FILTER:          3, V
BKG_MEAN:        3.380
N_STARS:         74
X_OFFSET:        250 [pixels]
Y_OFFSET:        732 [pixels]
X_MAX:           1209 [pixels]
Y_MAX:           1691 [pixels]
DET_THRESH:      15
PHOTO_THRESH:    8
SL_URL:          sw00217704000msufc0962.fits
SUN_POSTN:       106.96d {+07h 07m 50s}  +22.52d {+22d 31' 20"}
SUN_DIST:        114.50 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.20d {+16h 04m 49s}  -25.47d {-25d 28' 15"}
MOON_DIST:       104.16 [deg]
MOON_ILLUM:      88 [%]
GAL_COORDS:       62.08,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:53:51 UT
NOTICE_TYPE:     Swift-XRT Position
TRIGGER_NUM:     217704,   Seg_Num: 0
GRB_RA:          357.0792d {+23h 48m 19.0s} (J2000),
                 357.1633d {+23h 48m 39.1s} (current),
                 356.4335d {+23h 45m 44.0s} (1950)
GRB_DEC:         -17.9060d {-17d 54' 21.5"} (J2000),
                 -17.8698d {-17d 52' 11.1"} (current),
                 -18.1840d {-18d 11' 02.2"} (1950)
GRB_ERROR:       3.6 [arcsec radius, statistical plus systematic, 90% containment]
GRB_INTEN:       1.00e-10 [erg/cm2/sec]
GRB_SIGNIF:      5.00 [sigma]
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  77540.00 SOD {21:32:20.00} UT,   120.5 [sec] since BAT Trigger Time
TAM[0-3]:        327.61 237.19 261.35 242.66
AMPLIFIER:       2
WAVEFORM:        134
SUN_POSTN:       106.96d {+07h 07m 51s}  +22.52d {+22d 31' 20"}
SUN_DIST:        114.54 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.21d {+16h 04m 50s}  -25.47d {-25d 28' 17"}
MOON_DIST:       104.13 [deg]
MOON_ILLUM:      88 [%]
GAL_COORDS:       62.01,-72.78 [deg] galactic lon,lat of the burst
ECL_COORDS:      350.05,-15.24 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Coordinates.
COMMENTS:        This Notice was ground-generated -- not flight-generated.
COMMENTS:        TAM values are not valid.

GCN Circular #5287

TITLE:          GCN/SWIFT NOTICE
NOTICE_DATE:    Fri 07 Jul 06 21:53:51 UT
NOTICE_TYPE:    Swift-UVOT Nack-Position
TRIGGER_NUM:    217704,   Seg_Num: 0
SOURCE_RA:      357.0792d {+23h 48m 19.0s} (J2000)
SOURCE_DEC:     -17.9060d {-17d 54' 21.5"} (J2000)
SOURCE_ERROR:   3.6 [arcsec]
SOURCE:         2
IMG_START_DATE: 13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME: 77545.00 SOD {21:32:25.00} UT
MAG_LIMIT:      19.5
LIMIT_LEVEL:    3.00 [sigma]
FILTER:         10, WHITE
COMMENTS:

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:54:33 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.117d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.905d {-17d 54' 18"} (J2000)
POINT_ROLL:      72.838d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  78381.59 SOD {21:46:21.59} UT,   962.1 [sec] since BAT Trigger Time
FILTER:          3, V
BKG_MEAN:        3.380
N_STARS:         74
X_OFFSET:        250 [pixels]
Y_OFFSET:        732 [pixels]
X_MAX:           1209 [pixels]
Y_MAX:           1691 [pixels]
DET_THRESH:      15
PHOTO_THRESH:    8
SL_URL:          sw00217704000msufc0962.fits
SUN_POSTN:       106.96d {+07h 07m 51s}  +22.52d {+22d 31' 20"}
SUN_DIST:        114.50 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.21d {+16h 04m 51s}  -25.47d {-25d 28' 23"}
MOON_DIST:       104.15 [deg]
MOON_ILLUM:      88 [%]
GAL_COORDS:       62.08,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:54:56 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.117d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.905d {-17d 54' 18"} (J2000)
ROLL:            72.838d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  78381.59 SOD {21:46:21.59} UT,   962.1 [sec] since BAT Trigger Time
FILTER:          3, V
EXPOSURE_ID:     174001582
X_OFFSET:        570 [pixels]
Y_OFFSET:        1052 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       730
Y_GRB_POS:       1212
BINNING_INDEX:   1
IM_URL:          sw00217704000msuni0962.fits
SUN_POSTN:       106.96d {+07h 07m 51s}  +22.52d {+22d 31' 20"}
SUN_DIST:        114.50 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.22d {+16h 04m 52s}  -25.47d {-25d 28' 26"}
MOON_DIST:       104.15 [deg]
MOON_ILLUM:      88 [%]
GAL_COORDS:       62.08,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 07 Jul 06 21:56:03 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     217704,   Seg_Num: 0
POINT_RA:        357.117d {+23h 48m 28s} (J2000)
POINT_DEC:       -17.905d {-17d 54' 18"} (J2000)
ROLL:            72.838d
IMG_START_DATE:  13923 TJD;   188 DOY;   06/07/07
IMG_START_TIME:  78381.59 SOD {21:46:21.59} UT,   962.1 [sec] since BAT Trigger Time
FILTER:          3, V
EXPOSURE_ID:     174001582
X_OFFSET:        570 [pixels]
Y_OFFSET:        1052 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       730
Y_GRB_POS:       1212
BINNING_INDEX:   1
IM_URL:          sw00217704000msuni0962.fits
SUN_POSTN:       106.96d {+07h 07m 51s}  +22.52d {+22d 31' 19"}
SUN_DIST:        114.51 [deg]   Sun_angle= 7.3 [hr] (West of Sun)
MOON_POSTN:      241.23d {+16h 04m 55s}  -25.48d {-25d 28' 34"}
MOON_DIST:       104.14 [deg]
MOON_ILLUM:      88 [%]
GAL_COORDS:       62.08,-72.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      350.08,-15.25 [deg] ecliptic lon,lat of the pointing direction

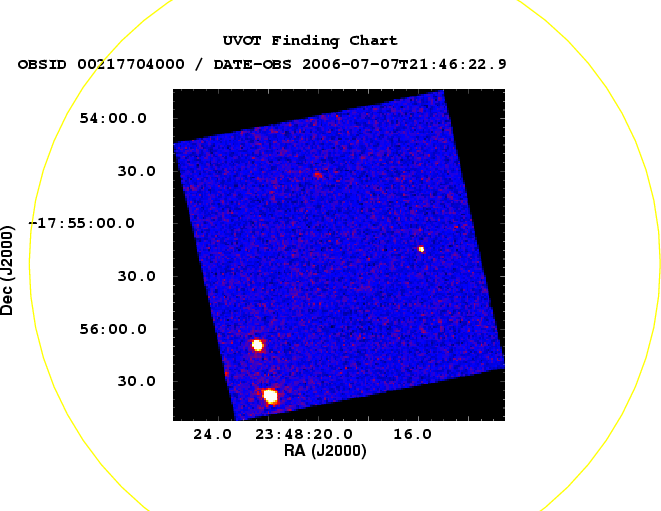

COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN Circular #5285
A. Moretti (INAF-OAB), S. D. Barthelmy (GSFC), P. T. Boyd (NASA/GSFC), P. J. Brown (PSU), M. M. Chester (PSU), N. Gehrels (NASA/GSFC), C. Guidorzi (Univ Bicocca&INAF-OAB), J. A. Kennea (PSU), C. B. Markwardt (GSFC/UMD), F. E. Marshall (NASA/GSFC), K. M. McLean (LANL/UTD), C. Pagani (PSU), D. M. Palmer (LANL), T. Sakamoto (NASA/ORAU), M. Stamatikos (NASA/ORAU) and D. E. Vanden Berk (PSU) report on behalf of the Swift Team:
At 21:30:19 UT, the Swift Burst Alert Telescope (BAT) triggered and located GRB 060707 (trigger=217704). Swift slewed immediately to the burst. The BAT on-board calculated location is RA,Dec 357.079, -17.923 {23h 48m 19s, -17d 55' 21"} (J2000) with an uncertainty of 3 arcmin (radius, 90% containment, including systematic uncertainty). The BAT light curve shows a single FRED-like peak at T_0 lasting about 30 sec. There is a hard precusor at T-45 sec. The total duration is ~75 sec. The peak count rate was ~1500 counts/sec (15-350 keV), at ~2 sec after the trigger.
The XRT began taking data at 21:32:20 UT, 122 seconds after the BAT trigger. The XRT on-board centroid algorithm did not find a source in the image and no prompt position is available. Down-linked data show a bright source at RA(2000)=23 48 19.00 DEC(2000):-17 54 21.8 with an error circle of 3.8". This position is 60" from the BAT position.
UVOT took a finding chart exposure of 100 seconds with the White (160-650 nm) filter starting 126 seconds after the BAT trigger. No afterglow candidate has been found in the initial data products. The 2.7'x2.7' sub-image covers 25% of the BAT error circle and 100% of the ground-determined XRT error circle. The typical 3-sigma upper limit has been about 18.5 mag. The 8'x8' region for the list of sources generated on-board covers 100% of the BAT error circle. The list of sources is typically complete to about 18 mag. No correction has been made for the expected extinction corresponding to E(B-V) of 0.02.
GCN Circular #5288
A. de Ugarte Postigo, J. Gorosabel and A.J.Castro-Tirado (IAA-CSIC) on behalf of the BOOTES-IR Collaboration.
"The BOOTES-IR 0.6m telescope, located at IAA-CSIC Observatorio de Sierra Nevada in Granada (Spain), observed the SWIFT error box for GRB 060707 (Moretti et al. GCNC 5285). R-band observations started at 01:20 UT(3:50 h after the burst, when it became observable from our location). A limiting R-band magnitude of ~20 is derived for the afteglow at ~ 1:45 UT.
This message is quotable".
GCN Circular #5289
M. Stamatikos (GSFC/ORAU), L. Barbier (GSFC), S. Barthelmy (GSFC), J. Cummings (GSFC/ORAU), E. Fenimore (LANL), N. Gehrels (GSFC), D. Hullinger (BYU-Idaho), H. Krimm (GSFC/USRA), M. Koss (GSFC/UMD), C. Markwardt (GSFC/UMD), D. Palmer (LANL), A. Parsons (GSFC), T. Sakamoto (GSFC/ORAU), G. Sato (GSFC/ISAS), J. Tueller (GSFC) on behalf of the Swift-BAT team:
Using the data set from T-120 to T+182 sec from recent telemetry downlinks, we report further analysis of BAT GRB 060707 (trigger #217704) (Moretti, et al., GCN 5285). The BAT ground-calculated position is RA,Dec = 357.073, -17.908 deg {23h 48m 17.4s, -17d 54' 27.4"} (J2000) +- 1.5 arcmin, (radius, sys+stat, 90% containment). The partial coding was 43%.
The mask-tagged lightcurve consists of two peaks. The first starts at T-50 sec, peaks at ~T-40 and then returns to a minumum at T-18 sec where it start to rise for the beginning of the second peak. The second peaks at ~T+5sec and ends at ~T+40 sec. There is no apparent further emission out to T+1400 sec. T90 (15-350 keV) is 68 +- 5 sec (estimated error including systematics).
The time-averaged spectrum from T-50 to T+25 is best fit by a power law with an exponential cutoff. This fit gives a photon index 0.66 +- 0.63, and Epeak of 66 (-10/+25) keV (chi squared 64.0 for 56 d.o.f.). For this model the total fluence in the 15-150 keV band is 1.7 +- 0.2 x 10^-6 erg/cm2 and the 1-sec peak flux measured from T+3.05 sec in the 15-150 keV band is 1.1 +- 0.2 ph/cm2/sec. A fit to a simple power law gives a photon index of 1.68 +- 0.13 (chi squared 73.4 for 57 d.o.f.). All the quoted errors are at the 90% confidence level.
GCN Circular #5290
A. de Ugarte Postigo, J.Gorosabel, M. Jelinek, R. Cunniffe,P. Kubanek, S. Vitek, A. J. Castro-Tirado (IAA-CSIC Granada),P. Kubanek (ASU AV CR Ondrejov & ISDC Versoix) and M. D. Sabau-Graziati (INTA Torrejon de Ardoz, Madrid) report
Main text: "The BOOTES-IR 0.6m telescope, located at IAA-CSIC Observatorio de Sierra Nevada in Granada (Spain), observed the SWIFT error box for GRB 060707 (Moretti et al. GCNC 5285).
Further analysis from the data of the night shows an object with R ~ 20.2 mag at coordinates R.A.= 23:48:19.00, Dec. = -17:54:17.0 (J2000) with estimated uncertanity of 0.7 arcsec is present on the frames and not visible on the DSS2 comparison images. Futher analysis are ongoing in order to check for variability and confirm its relationship to GRB 060707.
A finding chart will be soon available at: www.iaa.es/~deugarte/GRBs/GRB060707/grb060707.gif
This message is quotable".
GCN Circular #5291
A. Stefanescu, F. Schrey, G. Kanbach, S. Duscha, M. M=FChlegger, N. Prymak, H. Steinle (MPE Munich) of the OPTIMA-Burst Team report the following:
"OPTIMA-Burst at the 1.3m Skinakas Observatory, located on Crete, Greece observed the Swift XRT-Errorbox of GRB 060707 at 00:30 UT (3h after the Burst).
We detected a faint source at the edge of the XRT-error circle (GCN Circular #5285). We estimate the brightness of this source in a 10min white-light image as 20.3+-.5mag. The position of the source is RA 23:48:19 Dec -17:54:18.4 (J2000). There is no source at this position in the USNO-A2 Catalog, and no minor planet according to MPChecker.
This source seems compatible with the source reported in GCN Circular 5290"
GCN Circular #5293
C. Guidorzi (Univ Bicocca & INAF-OAB), A. Moretti (INAF-OAB), J. A. Kennea (PSU) on behalf of the Swift-XRT team:
We have analyzed the first two orbits of data of GRB060707 (Moretti et al 2006, GCN 5285). The XRT data set consists of 43 s exposure in Windowed Timing (WT) in the first orbit followed by 3.1 ks exposure in Photon Counting (PC).
The refined position of the source is
```
   RA  (2000) =  23h 48m 18.89s
   Dec (2000) = -17d 54' 20.4"
```
with an uncertainty of 3.9 arcsec (90% containment).
This position is 2.1 arcsec from the XRT position first reported (Moretti et al 2006, GCN 5285), 3.7 arcsec from the IR optical afterglow candidate position (de Ugarte-Postigo et al., GCN 5290) and 22.4 arcsec from the BAT ground-calculated position (Stamatikos et al. 2006, GCN 5289).
The 0.3-10 keV X-ray light curve shows the typical steep-to-shallow decay, with an initial power-law index of alpha ~ 1.6, followed by alpha ~ 0.7, break time around 600s from the BAT trigger time.
The PC spectrum is well fitted by an absorbed power law with photon index 2.0 +/- 0.1 and N_H consistent with the Galactic value (1.8e20 cm^-2). The average 0.3-10 keV unabsorbed flux during the second orbit is 5.5e-12 erg cm^-2 s^-1.
Assuming alpha ~ 0.7, the extrapolated unabsorbed flux at 24 hours is 9e-13 erg cm^-2 s^-1.
This Circular is an official product of the Swift XRT Team.
GCN Circular #5294
P. Schady (UCL-MSSL), A. Moretti (INAF-OAB) report on behalf of the Swift/UVOT team:
The Swift/UVOT began observing the field of GRB 060707 at 21:32:24 UT on 2006-07-07, 126 s after the BAT trigger (Moretti et al., GCN 5285). An optical counterpart is detected in coadded images in the white, V and B-band within the XRT error circle (Guidorzi et al. GCN 5293) and consistent with the position reported by de Ugarte Postigo et al. (GCN 5288). The photometry results are given for the 7 filters below:
```
Filter  T_Obs(s)  Exposure(s)  Magnitude/3sig_UL

WHITE   128-7040  679          20.37 +/- 0.29
V       224-6016  702          19.65 +/- 0.49
B       704-6832  397          19.57 +/- 0.17
U       688-6624  251          19.32 (3 sigma UL)
W1      656-6416  247          19.24 (3 sigma UL)
M2      640-6224  254          19.56 (3 sigma UL)
W2      736-7232  409          19.47 (3 sigma UL)
```
The values quoted above are not corrected for the expected Galactic extinction E(B-V)=0.022
GCN Circular #5298
Pall Jakobsson, Nial Tanvir (Univ. of Hertfordshire), Brian L. Jensen, Johan P. U. Fynbo (DARK, NBI), Antonio de Ugarte Postigo, Javier Gorosabel (IAA-CSIC Granada), Sylvio Klose (TLS Tautenburg) and Paul Vreeswijk (ESO) report on behalf of a larger collaboration:
Using FORS1 on the Very Large Telescope, we have obtained 3*30 min spectra (300V) of the GRB 060707 field (Moretti et al., GCN 5285). The acquisition image shows that the proposed optical afterglow (de Ugarte Postigo et al., GCN 5290) has faded by approximately two magnitudes. Using photometric zeropoints from the ESO webpages we estimate the afterglow magnitude to be R ~ 22.4 on July 9.329 (1.432 days post-burst).
The combined spectrum displays a strong absorption feature around 5386 AA, with the flux dropping substantially blueward of this feature. Associating it with Ly-alpha gives a redshift of z = 3.43 for the burst. At this redshift we find several other absorption features, including Ly-beta, Si II, Si IV, C IV, Al II and O III].
GCN Circular #5314
A. Stefanescu, G. Kanbach, S. Duscha, F. Schrey, M. Muehlegger, N. Prymak, H. Steinle (MPE Garching) of the OPTIMA-Burst Team report the following: "OPTIMA-Burst at the 1.3m Skinakas Observatory, of the University of Crete, Greece observed the Swift UVOT-Errorcircle of GRB 060714 at 19:53UT (4:42h after the Burst). We detected a faint source at the UVOT-Position (GCN Circular #5311). We estimate the brightness of this source in a 10min white-light image as 19.9+-.5mag. The position overlaps the UVOT errorcircle. There is no source at this position in the USNO-A2 Catalog, and no minor planet according to MPChecker.
GCN Circular #5485
P. Chandra (UVA/NRAO) and D. A. Frail (NRAO) report on behalf of the Caltech-NRAO-Carnegie GRB Collaboration:
"We observed the field centered on the BAT position of the Swift burst GRB 060707 (GCN#5290) using the VLA at a frequency of 8.46 GHz and starting at 9.24 UT on Aug 20, about 45 days after the burst. There is no detection of the GRB with 2-sigma upper limit of 82 microJy.
The National Radio Astronomy Observatory is a facility of the National Science Foundation operated under cooperative agreement by Associated Universities, Inc."
astro-ph/0609450 from 15 Sep 2006
Jakobsson et al: HI column densities of z > 2 Swift gamma-ray bursts
Context: Before the launch of the Swift satellite, the majority of the gamma-ray burst (GRB) afterglows for which Ly-alpha was redshifted into the observable spectrum showed evidence for a damped Ly-alpha absorber. This small sample indicated that GRBs explode either in galaxies, or regions within them, having high neutral hydrogen column densities. Aims: To increase the spectroscopic sample of GRBs with z > 2 and hence establish the N(HI) distribution along GRB lines-of-sight. Methods: We have obtained six z > 2 GRB afterglow spectra and fitted the Ly-alpha absorption line in each case to determine N(HI). This has been complemented with 12 other Swift N(HI) values from the literature. Results: We show that the peak of the GRB N(HI) distribution is qualitatively consistent with a model where GRBs originate in Galactic-like molecular clouds. However, a systematic difference, in particular an excess of low column-density systems compared to the predictions, indicates that selection effects and conditions within the cloud (e.g. strong ionization) influence the observed N(HI) range. We also report the discovery of Ly-alpha emission from the GRB 060714 host, corresponding to a star-formation rate of approximately 0.8 M_Sun/year. Finally, we present accurate redshifts of the six bursts: z = 3.240 +/- 0.001 (GRB 050319), z = 2.198 +/- 0.002 (GRB 050922C), z = 3.221 +/- 0.001 (GRB 060526), z = 3.425 +/- 0.002 (GRB 060707), z = 2.711 +/- 0.001 (GRB 060714) and z = 3.686 +/- 0.002 (GRB 060906).

Back to JG's homepage

Jochen Greiner, last update: 18-Oct-2006 [Disclaimer]
