Gamma-ray Burst 070209

(All information courtesy of the instrument teams.)

Previous IAU Circulars

none

Results of Observations

GCN/BACODINE POSITION NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:33:54 UT
NOTICE_TYPE:     Swift-BAT GRB Position
TRIGGER_NUM:     259803,   Seg_Num: 0
GRB_RA:           46.237d {+03h 04m 57s} (J2000),
                  46.297d {+03h 05m 11s} (current),
                  45.815d {+03h 03m 16s} (1950)
GRB_DEC:         -47.370d {-47d 22' 11"} (J2000),
                 -47.343d {-47d 20' 33"} (current),
                 -47.563d {-47d 33' 47"} (1950)
GRB_ERROR:       3.00 [arcmin radius, statistical only]
GRB_INTEN:       511 [cnts]    Image_Peak=74 [image_cnts]
TRIGGER_DUR:     0.064 [sec]
TRIGGER_INDEX:   10418     E_range: 25-100 keV
BKG_INTEN:       26454 [cnts]
BKG_TIME:        12806.24 SOD {03:33:26.24} UT
BKG_DUR:         8 [sec]
GRB_DATE:        14140 TJD;    40 DOY;   07/02/09
GRB_TIME:        12821.92 SOD {03:33:41.92} UT
GRB_PHI:          -1.48 [deg]
GRB_THETA:        26.74 [deg]
SOLN_STATUS:     0x3
RATE_SIGNIF:     18.70 [sigma]
IMAGE_SIGNIF:    9.09 [sigma]
MERIT_PARAMS:     +1  +0  +0  -4  +2  +6  +0  +0 -26  +1
SUN_POSTN:       322.40d {+21h 29m 37s}  -14.82d {-14d 48' 55"}
SUN_DIST:         75.06 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.30d {+14h 09m 11s}  -17.34d {-17d 20' 30"}
MOON_DIST:       114.10 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.74,-57.02 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:       18.43,-60.41 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Coordinates.
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 136.89,-4.20 [deg].

red DSS finding chart ps-file

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:35:06 UT
NOTICE_TYPE:     Swift-XRT Nack-Position
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.375d {-47d 22' 30"} (J2000)
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  12899.37 SOD {03:34:59.37} UT,   77.5 [sec] since BAT Trigger Time
COUNTS:          39    Min_needed= 20
STD_DEV:         42.48   Max_StdDev_for_Good=28.44 [arcsec]
PH2_ITER:        3    Max_iter_allowed= 4
ERROR_CODE:      3
COMMENTS:        SWIFT-XRT Nack Position.
COMMENTS:        Standard deviation too large.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:37:04 UT

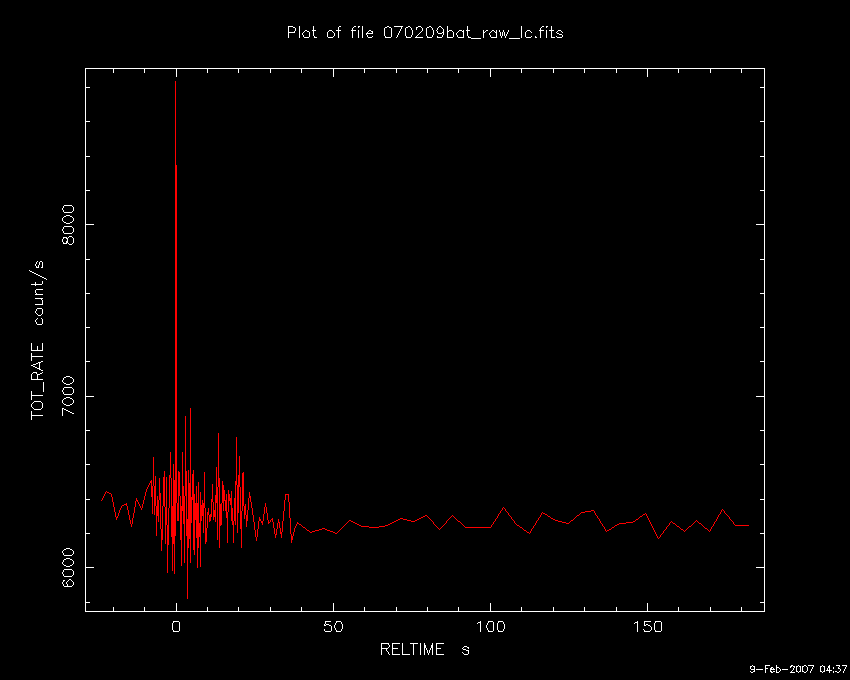

NOTICE_TYPE:     Swift-BAT GRB Lightcurve
TRIGGER_NUM:     259803,   Seg_Num: 0
GRB_RA:           46.237d {+03h 04m 57s} (J2000),
                  46.297d {+03h 05m 11s} (current),
                  45.815d {+03h 03m 16s} (1950)
GRB_DEC:         -47.370d {-47d 22' 11"} (J2000),
                 -47.343d {-47d 20' 33"} (current),
                 -47.563d {-47d 33' 47"} (1950)
GRB_DATE:        14140 TJD;    40 DOY;   07/02/09
GRB_TIME:        12821.94 SOD {03:33:41.94} UT
TRIGGER_INDEX:   10418
GRB_PHI:          -1.48 [deg]
GRB_THETA:        26.74 [deg]
DELTA_TIME:      30.00 [sec]
TRIGGER_DUR:     0.064 [sec]
SOLN_STATUS:     0x3
RATE_SIGNIF:     18.70 [sigma]
IMAGE_SIGNIF:    9.09 [sigma]
LC_URL:          sw00259803000msb.lc
SUN_POSTN:       322.41d {+21h 29m 37s}  -14.81d {-14d 48' 52"}
SUN_DIST:         75.06 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.32d {+14h 09m 17s}  -17.35d {-17d 21' 07"}
MOON_DIST:       114.10 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.74,-57.02 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:       18.43,-60.41 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Lightcurve.
COMMENTS:
COMMENTS:        The next comments were copied from the BAT_POS Notice:
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 136.89,-4.20 [deg].

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:38:28 UT

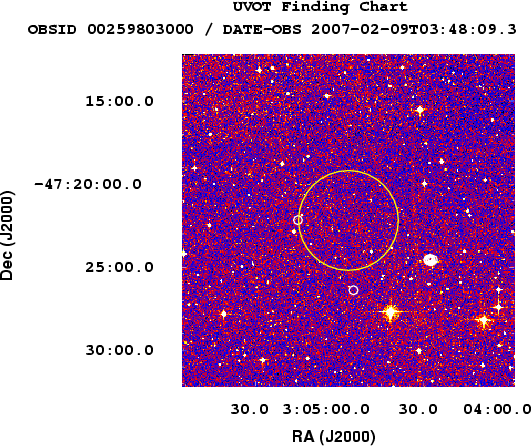

NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.247d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.376d {-47d 22' 33"} (J2000)
POINT_ROLL:      264.254d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  12905.15 SOD {03:35:05.15} UT,   83.2 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        4.766
N_STARS:         13
X_OFFSET:        545 [pixels]
Y_OFFSET:        588 [pixels]
X_MAX:           1504 [pixels]
Y_MAX:           1547 [pixels]
DET_THRESH:      18
PHOTO_THRESH:    10
SL_URL:          sw00259803000msufc0083.fits
SUN_POSTN:       322.41d {+21h 29m 38s}  -14.81d {-14d 48' 51"}
SUN_DIST:         75.07 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.33d {+14h 09m 20s}  -17.36d {-17d 21' 23"}
MOON_DIST:       114.09 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:38:47 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.247d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.376d {-47d 22' 33"} (J2000)
POINT_ROLL:      264.254d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  12905.15 SOD {03:35:05.15} UT,   83.2 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        4.766
N_STARS:         13
X_OFFSET:        545 [pixels]
Y_OFFSET:        588 [pixels]
X_MAX:           1504 [pixels]
Y_MAX:           1547 [pixels]
DET_THRESH:      18
PHOTO_THRESH:    10
SL_URL:          sw00259803000msufc0083.fits
SUN_POSTN:       322.41d {+21h 29m 38s}  -14.81d {-14d 48' 51"}
SUN_DIST:         75.07 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.34d {+14h 09m 20s}  -17.36d {-17d 21' 27"}
MOON_DIST:       114.09 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:40:29 UT

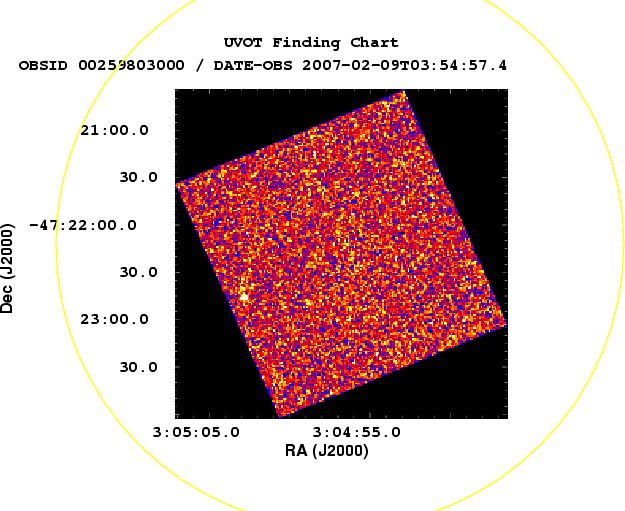

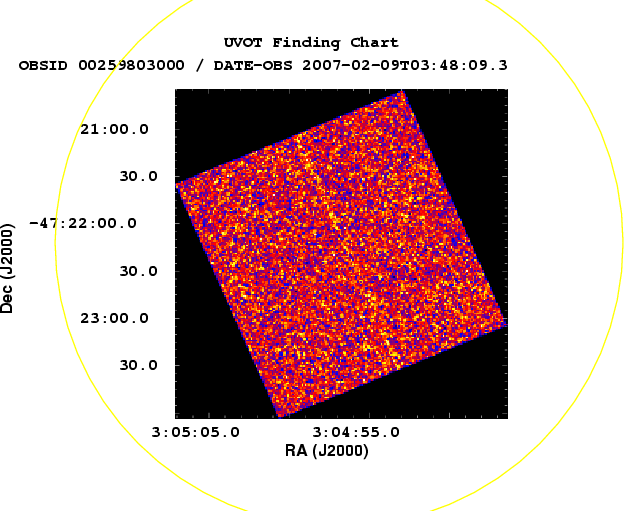

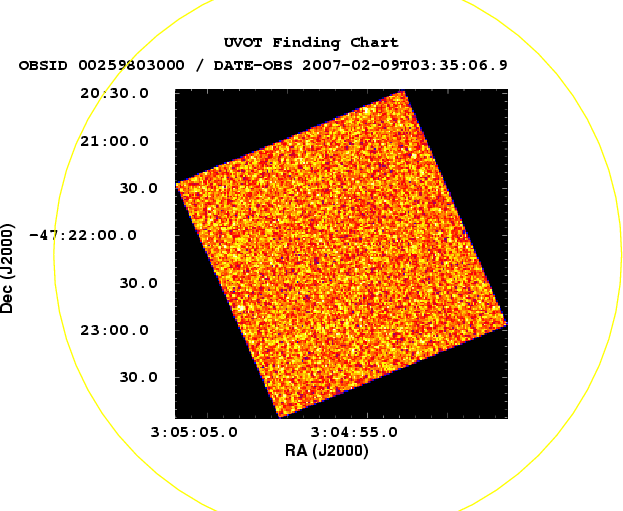

NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.247d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.376d {-47d 22' 33"} (J2000)
ROLL:            264.254d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  12905.15 SOD {03:35:05.15} UT,   83.2 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     192684906
X_OFFSET:        864 [pixels]
Y_OFFSET:        907 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1024
Y_GRB_POS:       1067
BINNING_INDEX:   1
IM_URL:          sw00259803000msuni0083.fits
SUN_POSTN:       322.41d {+21h 29m 38s}  -14.81d {-14d 48' 49"}
SUN_DIST:         75.07 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.35d {+14h 09m 24s}  -17.36d {-17d 21' 47"}
MOON_DIST:       114.08 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:40:47 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.247d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.376d {-47d 22' 33"} (J2000)
ROLL:            264.254d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  12905.15 SOD {03:35:05.15} UT,   83.2 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     192684906
X_OFFSET:        864 [pixels]
Y_OFFSET:        907 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1024
Y_GRB_POS:       1067
BINNING_INDEX:   1
IM_URL:          sw00259803000msuni0083.fits
SUN_POSTN:       322.41d {+21h 29m 38s}  -14.81d {-14d 48' 49"}
SUN_DIST:         75.07 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.35d {+14h 09m 24s}  -17.36d {-17d 21' 50"}
MOON_DIST:       114.08 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:50:28 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.378d {-47d 22' 40"} (J2000)
POINT_ROLL:      264.256d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  13010.34 SOD {03:36:50.34} UT,   188.4 [sec] since BAT Trigger Time
FILTER:          3, V
BKG_MEAN:        4.150
N_STARS:         17
X_OFFSET:        545 [pixels]
Y_OFFSET:        588 [pixels]
X_MAX:           1504 [pixels]
Y_MAX:           1547 [pixels]
DET_THRESH:      17
PHOTO_THRESH:    10
SL_URL:          sw00259803000msufc0188.fits
SUN_POSTN:       322.42d {+21h 29m 40s}  -14.81d {-14d 48' 41"}
SUN_DIST:         75.07 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.43d {+14h 09m 43s}  -17.40d {-17d 23' 43"}
MOON_DIST:       114.06 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:50:47 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.378d {-47d 22' 40"} (J2000)
POINT_ROLL:      264.256d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  13010.34 SOD {03:36:50.34} UT,   188.4 [sec] since BAT Trigger Time
FILTER:          3, V
BKG_MEAN:        4.150
N_STARS:         17
X_OFFSET:        545 [pixels]
Y_OFFSET:        588 [pixels]
X_MAX:           1504 [pixels]
Y_MAX:           1547 [pixels]
DET_THRESH:      17
PHOTO_THRESH:    10
SL_URL:          sw00259803000msufc0188.fits
SUN_POSTN:       322.42d {+21h 29m 40s}  -14.81d {-14d 48' 41"}
SUN_DIST:         75.07 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.43d {+14h 09m 43s}  -17.40d {-17d 23' 46"}
MOON_DIST:       114.06 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:51:51 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.378d {-47d 22' 40"} (J2000)
ROLL:            264.256d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  13010.34 SOD {03:36:50.34} UT,   188.4 [sec] since BAT Trigger Time
FILTER:          3, V
EXPOSURE_ID:     192685012
X_OFFSET:        864 [pixels]
Y_OFFSET:        907 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1024
Y_GRB_POS:       1067
BINNING_INDEX:   1
IM_URL:          sw00259803000msuni0188.fits
SUN_POSTN:       322.42d {+21h 29m 40s}  -14.81d {-14d 48' 40"}
SUN_DIST:         75.06 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.44d {+14h 09m 45s}  -17.40d {-17d 23' 59"}
MOON_DIST:       114.06 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:52:04 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.378d {-47d 22' 40"} (J2000)
ROLL:            264.256d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  13010.34 SOD {03:36:50.34} UT,   188.4 [sec] since BAT Trigger Time
FILTER:          3, V
EXPOSURE_ID:     192685012
X_OFFSET:        864 [pixels]
Y_OFFSET:        907 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1024
Y_GRB_POS:       1067
BINNING_INDEX:   1
IM_URL:          sw00259803000msuni0188.fits
SUN_POSTN:       322.42d {+21h 29m 40s}  -14.81d {-14d 48' 40"}
SUN_DIST:         75.06 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.44d {+14h 09m 46s}  -17.40d {-17d 24' 01"}
MOON_DIST:       114.06 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        If you have elected to receive attachments:
COMMENTS:        The uvot_catalog_image.fits.gz file does not exist; skipping the attachment.

GCN Circular #6086
G. Sato (GSFC/ISAS), S. D. Barthelmy (GSFC), D. N. Burrows (PSU), M. M. Chester (PSU), C. Gronwall (PSU), S. T. Holland (CRESST/GSFC/USRA), S. Immler (GSFC/USRA), F. E. Marshall (NASA/GSFC), D. M. Palmer (LANL), M. Perri (ASDC), M. Stamatikos (NASA/ORAU), G. Stratta (ASDC) and D. E. Vanden Berk (PSU) report on behalf of the Swift Team:
At 03:33:41 UT, the Swift Burst Alert Telescope (BAT) triggered and located GRB 070209 (trigger=259803). Swift slewed immediately to the burst. The BAT on-board calculated location is RA, Dec 46.237, -47.370 which is
```
   RA(J2000)  =  03h 04m 57s
   Dec(J2000) = -47d 22' 11"
```
with an uncertainty of 3 arcmin (radius, 90% containment, including systematic uncertainty). The BAT light curve shows a single spike with a duration of about 0.2 sec. The peak count rate was ~2500 counts/sec (15-350 keV), at ~0 sec after the trigger.
The XRT began taking data at 03:34:59 UT, 78 seconds after the BAT trigger. The XRT on-board centroid algorithm did not find a source in the image and no prompt position is available. We are waiting for down-linked data to detect and determine a position for the source.
UVOT took a finding chart exposure of 100 seconds with the White (160-650 nm) filter starting 83 seconds after the BAT trigger. No afterglow candidate has been found in the initial data products. The 2.7'x2.7' sub-image covers 25% of the BAT error circle. The typical 3-sigma upper limit has been about 18.5 mag. The 8'x8' region for the list of sources generated on-board covers 100% of the BAT error circle. The list of sources is typically complete to about 18 mag. No correction has been made for the expected extinction corresponding to E(B-V) of 0.01.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:55:04 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.378d {-47d 22' 40"} (J2000)
POINT_ROLL:      264.255d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  13687.55 SOD {03:48:07.55} UT,   865.6 [sec] since BAT Trigger Time
FILTER:          3, V
BKG_MEAN:        1.739
N_STARS:         24
X_OFFSET:        545 [pixels]
Y_OFFSET:        588 [pixels]
X_MAX:           1504 [pixels]
Y_MAX:           1547 [pixels]
DET_THRESH:      11
PHOTO_THRESH:    5
SL_URL:          sw00259803000msufc0865.fits
SUN_POSTN:       322.42d {+21h 29m 40s}  -14.81d {-14d 48' 38"}
SUN_DIST:         75.06 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.46d {+14h 09m 51s}  -17.41d {-17d 24' 36"}
MOON_DIST:       114.06 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:55:23 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.378d {-47d 22' 40"} (J2000)
POINT_ROLL:      264.255d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  13687.55 SOD {03:48:07.55} UT,   865.6 [sec] since BAT Trigger Time
FILTER:          3, V
BKG_MEAN:        1.739
N_STARS:         24
X_OFFSET:        545 [pixels]
Y_OFFSET:        588 [pixels]
X_MAX:           1504 [pixels]
Y_MAX:           1547 [pixels]
DET_THRESH:      11
PHOTO_THRESH:    5
SL_URL:          sw00259803000msufc0865.fits
SUN_POSTN:       322.42d {+21h 29m 40s}  -14.81d {-14d 48' 37"}
SUN_DIST:         75.06 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.47d {+14h 09m 52s}  -17.41d {-17d 24' 40"}
MOON_DIST:       114.05 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:56:28 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.378d {-47d 22' 40"} (J2000)
ROLL:            264.255d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  13687.55 SOD {03:48:07.55} UT,   865.6 [sec] since BAT Trigger Time
FILTER:          3, V
EXPOSURE_ID:     192685689
X_OFFSET:        864 [pixels]
Y_OFFSET:        907 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1024
Y_GRB_POS:       1067
BINNING_INDEX:   1
IM_URL:          sw00259803000msuni0865.fits
SUN_POSTN:       322.42d {+21h 29m 41s}  -14.81d {-14d 48' 37"}
SUN_DIST:         75.06 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.48d {+14h 09m 54s}  -17.41d {-17d 24' 52"}
MOON_DIST:       114.05 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:56:51 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.378d {-47d 22' 40"} (J2000)
ROLL:            264.255d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  13687.55 SOD {03:48:07.55} UT,   865.6 [sec] since BAT Trigger Time
FILTER:          3, V
EXPOSURE_ID:     192685689
X_OFFSET:        864 [pixels]
Y_OFFSET:        907 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1024
Y_GRB_POS:       1067
BINNING_INDEX:   1
IM_URL:          sw00259803000msuni0865.fits
SUN_POSTN:       322.42d {+21h 29m 41s}  -14.81d {-14d 48' 36"}
SUN_DIST:         75.06 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.48d {+14h 09m 55s}  -17.42d {-17d 24' 57"}
MOON_DIST:       114.05 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        If you have elected to receive attachments:
COMMENTS:        The uvot_catalog_image.fits.gz file does not exist; skipping the attachment.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:56:58 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.378d {-47d 22' 39"} (J2000)
POINT_ROLL:      264.255d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  14095.66 SOD {03:54:55.66} UT,   1273.7 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        1.370
N_STARS:         16
X_OFFSET:        545 [pixels]
Y_OFFSET:        588 [pixels]
X_MAX:           1504 [pixels]
Y_MAX:           1547 [pixels]
DET_THRESH:      10
PHOTO_THRESH:    5
SL_URL:          sw00259803000msufc1273.fits
SUN_POSTN:       322.42d {+21h 29m 41s}  -14.81d {-14d 48' 36"}
SUN_DIST:         75.06 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.48d {+14h 09m 55s}  -17.42d {-17d 24' 58"}
MOON_DIST:       114.05 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:57:25 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.378d {-47d 22' 39"} (J2000)
POINT_ROLL:      264.255d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  14095.66 SOD {03:54:55.66} UT,   1273.7 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        1.370
N_STARS:         16
X_OFFSET:        545 [pixels]
Y_OFFSET:        588 [pixels]
X_MAX:           1504 [pixels]
Y_MAX:           1547 [pixels]
DET_THRESH:      10
PHOTO_THRESH:    5
SL_URL:          sw00259803000msufc1273.fits
SUN_POSTN:       322.42d {+21h 29m 41s}  -14.81d {-14d 48' 36"}
SUN_DIST:         75.06 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.48d {+14h 09m 56s}  -17.42d {-17d 25' 03"}
MOON_DIST:       114.05 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:58:09 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.378d {-47d 22' 39"} (J2000)
ROLL:            264.255d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  14095.66 SOD {03:54:55.66} UT,   1273.7 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     192686097
X_OFFSET:        864 [pixels]
Y_OFFSET:        907 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1024
Y_GRB_POS:       1067
BINNING_INDEX:   1
IM_URL:          sw00259803000msuni1273.fits
SUN_POSTN:       322.42d {+21h 29m 41s}  -14.81d {-14d 48' 35"}
SUN_DIST:         75.06 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.49d {+14h 09m 57s}  -17.42d {-17d 25' 12"}
MOON_DIST:       114.05 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Fri 09 Feb 07 03:58:30 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     259803,   Seg_Num: 0
POINT_RA:         46.248d {+03h 04m 59s} (J2000)
POINT_DEC:       -47.378d {-47d 22' 39"} (J2000)
ROLL:            264.255d
IMG_START_DATE:  14140 TJD;    40 DOY;   07/02/09
IMG_START_TIME:  14095.66 SOD {03:54:55.66} UT,   1273.7 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     192686097
X_OFFSET:        864 [pixels]
Y_OFFSET:        907 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1024
Y_GRB_POS:       1067
BINNING_INDEX:   1
IM_URL:          sw00259803000msuni1273.fits
SUN_POSTN:       322.42d {+21h 29m 41s}  -14.81d {-14d 48' 35"}
SUN_DIST:         75.06 [deg]   Sun_angle= -5.6 [hr] (East of Sun)
MOON_POSTN:      212.49d {+14h 09m 58s}  -17.42d {-17d 25' 16"}
MOON_DIST:       114.05 [deg]
MOON_ILLUM:      62 [%]
GAL_COORDS:      259.75,-57.01 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:       18.43,-60.42 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN Circular #6087
T. Sakamoto (GSFC/ORAU), L. Barbier (GSFC), S. D. Barthelmy (GSFC), J. Cummings (GSFC/UMBC), E. Fenimore (LANL), N. Gehrels (GSFC), H. Krimm (GSFC/USRA), C. Markwardt (GSFC/UMD), D. Palmer (LANL), A. Parsons (GSFC), G. Sato (GSFC/ISAS), M. Stamatikos (GSFC/ORAU), J. Tueller (GSFC) on behalf of the Swift-BAT team:
Using the data set from T-240 to T+302 sec from the recent telemetry downlink, we report further analysis of BAT GRB 070209 (trigger #259803) (Sato, et al., GCN Circ. 6086). The BAT ground-calculated position is RA, Dec = 46.213, -47.376 deg which is
```
   RA(J2000)  =  03h 4m 51.2s
   Dec(J2000) = -47d 22' 34.2"
```
with an uncertainty of 2.8 arcmin, (radius, sys+stat, 90% containment). The partial coding was 85%.
The mask-weighted lightcurve has a single peak. T90 (15-350 keV) is 0.1 +- 0.02 sec (estimated error including systematics).
The time-averaged spectrum from T+0.0 to T+0.1 is best fit by a simple power-law model. The power law index of the time-averaged spectrum is 1.55 +- 0.39. The fluence in the 15-150 keV band is 1.1 +- 0.3 x 10^-8 erg/cm2. The 1-sec peak photon flux measured from T+0.00 sec in the 15-150 keV band is 2.4 +- 0.6 ph/cm2/sec. All the quoted errors are at the 90% confidence level.
GCN Report 32.1
GCN_Report 32.1 has been posted: http://gcn.gsfc.nasa.gov/reports/report_32_1.pdf by G. Sato at GSFC titled: "Swift Observations of GRB 070209"
GCN Circular #6095
G. Stratta, M. Perri, M. L. Conciatore (ASDC), D. N. Burrows (PSU) and G. Sato (GSFC/ISAS) report on behalf of the Swift/XRT team:
We have analysed the first 12 orbits of Swift XRT data on the BAT GRB 070209 (Sato et al., GCN Circ. 6086). Data in Photon Counting mode started at 03:35:10 UT, 89 s after the BAT trigger. With an exposure time of 26.9 ks we did not find X-ray sources within the BAT refined error circle (Sakamoto et al., GCN Circ. 6087). We note that the following X-ray sources are detected in the 0.7-10 keV band in the proximity of the BAT error circle:
```
Source #1: CR = (1.1+/-0.3)e-3 cts/s RA/Dec(J2000)=03 04 57.3 -47 19 35.6
Source #2: CR = (7.5+/-2.2)e-4 cts/s RA/Dec(J2000)=03 05 04.9 -47 18 42.8
Source #3: CR = (1.4+/-0.3)e-3 cts/s RA/Dec(J2000)=03 04 39.1 -47 27 57.3
```
The estimated uncertainty of the positions of the three sources is about 5 arcsec (90% containment).
Source #1 lies 3.1 arcmin from the refined BAT position, just outside the error circle. We note that this source may be fading, but due to the small number of counts we are unable to determine clearly if the source is decaying. A Swift follow-up observation will be performed in a few days to confirm whether source #1 is fading or not.
This circular is an official product of the Swift XRT Team.
GCN Report 32.2
GCN_Report 32.2 has been posted: http://gcn.gsfc.nasa.gov/reports/report_32_2.pdf by G. Sato at GSFC titled: "Updated Swift Observations of GRB 070209"
GCN Circular #6101
E. Berger (Carnegie Observatories) and D. Fox (Penn State) report on behalf of a larger collaboration:
"Using GMOS on the Gemini-south telescope we obtained a 2400 spectrum of an apparent galaxy located within the error circle of XRT source #1 (GCN 6095). This is the only X-ray source which exhibits signs of fading and is the nearest to the BAT error circle of this burst (GCN 6087). We find that the redshift of the galaxy is z=0.314 based on the detection of CaII H&K, as well as [OII] and [OIII] emission lines. At this redshift, the isotropic-equivalent energy of the burst is 2.6e48 erg."
GCN Circular #6119
G. Stratta, M. Perri, M. L. Conciatore (ASDC), D. N. Burrows (PSU) and G. Sato (GSFC/ISAS) report on behalf of the Swift/XRT team:
The field of the short hard BAT GRB 070209 (Sato et al., GCN Circ. 6086) has been re-observed by Swift in two epochs at about T+5 days and T+9 days after the BAT trigger. The XRT exposures in Photon Counting mode were 19.4 ks and 22.8 ks, respectively. We found no X-ray sources within the BAT refined error circle (Sakamoto et al., GCN Circ. 6087). The three X-ray sources reported by Stratta et al. (GCN Circ. 6095) close to the BAT error circle are still detected at the same count rate level of the first follow-up observation. We conclude that none of these sources is the afterglow of the burst.
The three sigma upper limit on the 0.7-10 keV count rate during the first observation within the BAT error circle was about 7e-4 cts/s. Assuming an absorbed power-law spectral model with Galactic NH (2.3e20 cm-2) and a photon index of 2 this corresponds to an observed 0.7-10 keV flux of about 3e-14 erg cm-2 s-1.
This circular is an official product of the Swift XRT Team.

GCN Circular #6218
S. Johnson, D. Reichart, J. Haislip, M. Nysewander, A. LaCluyze, K. Ivarsen, J. A. Crain, A. Foster and A. Trotter report on behalf of the University of North Carolina:
Skynet observed the localization of short-hard GRB 070209 (Sato et al., GCN 6086) with one of the 16" PROMPT telescopes at CTIO beginning 67 seconds after the burst in BVIR.
Our images include nearly all of the BAT error circle, as well as all three X-ray sources of Stratta et al. (GCN 6095). No new source is detected within this region to the following 3-sigma limiting magnitudes:

Filter  Mean Time       Integration     Limiting        Calibration
        Since GRB       Time (sec)      Magnitude       Stars*

B       0:01:12         10              16.07           1-3
V       0:01:39         10              16.83           1-4,7
R       0:02:11         20              17.33           9-12
I       0:02:49         20              17.24           9-12
B       0:03:27         10              16.27           1-4
V       0:04:11         40              18.08           1-6
R       0:05:16         40              17.94           9-14
I       0:06:13         40              17.68           9-12,15
B       0:07:35         80              18.17           1-6
V       0:09:14         80              18.57           1-6
R       0:10:57         80              18.62           9-15
I       0:12:36         80              18.26           9-14
B       0:14:44         120             18.82           1-6
V       0:17:28         120             19.12           1-6
R       0:20:14         120             18.81           9-14
I       0:23:00         120             18.66           9-15
B       0:25:43         120             18.41           1-6
V       0:29:33         240             19.36           1-6
R       0:34:34         240             19.19           9-14,16
I       0:40:19         240             18.64           9-14,16
B       0:45:45         240             18.41           1-6
V       0:51:06         240             19.37           1-2,4-6
R       0:58:55         560             19.77           9-10,12-14,16
I       1:10:51         560             19.32           9-10,12-14,16
B       1:21:29         480             19.09           1-2,4-7
V       1:33:25         560             19.72           1-2,4-8

*We calibrated the field in B and V using stars from the NOMAD catalog and in R and I using stars from the USNO-B1.0 catalog. The NOMAD calibration stars are (1) 0426-0037919, (2) 0426-0037965, (3) 0425-0038295, (4) 0425-0038481, (5) 0425-0038222, (6) 0426-0037846, (7) 0427-0037455 and (8) 0426-0038099. The USNO-B1.0 calibrations stars are (9) 0426-0037895, (10) 0426-0037941, (11) 0425-0038287, (12) 0425-0038472, (13) 0425-0038213, (14) 0426-0037820, (15) 8058-00193-1 and (16) 0426-0038075.

Back to JG's homepage

Jochen Greiner, last update: 19-Mar-2007 [Disclaimer]
