Gamma-ray Burst 070506

(All information courtesy of the instrument teams.)

Previous IAU Circulars

none

Results of Observations

GCN/BACODINE POSITION NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 05:37:14 UT
NOTICE_TYPE:     Swift-BAT GRB Position
TRIGGER_NUM:     278693,   Seg_Num: 0
GRB_RA:          347.217d {+23h 08m 52s} (J2000),
                 347.310d {+23h 09m 14s} (current),
                 346.589d {+23h 06m 21s} (1950)
GRB_DEC:         +10.728d {+10d 43' 42"} (J2000),
                 +10.768d {+10d 46' 05"} (current),
                 +10.457d {+10d 27' 26"} (1950)
GRB_ERROR:       3.00 [arcmin radius, statistical only]
GRB_INTEN:       0 [cnts]    Image_Peak=2083 [image_cnts]
TRIGGER_DUR:     64.000 [sec]
TRIGGER_INDEX:   20000     E_range: 15-50 keV
BKG_INTEN:       0 [cnts]
BKG_TIME:        0.00 SOD {00:00:00.00} UT
BKG_DUR:         0 [sec]
GRB_DATE:        14226 TJD;   126 DOY;   07/05/06
GRB_TIME:        20158.06 SOD {05:35:58.06} UT
GRB_PHI:          22.01 [deg]
GRB_THETA:        15.31 [deg]
SOLN_STATUS:     0x13
RATE_SIGNIF:     0.00 [sigma]
IMAGE_SIGNIF:    8.48 [sigma]
MERIT_PARAMS:     +1  +0  +0  +6  +1  -1  +0  +0 -58  +1
SUN_POSTN:        42.87d {+02h 51m 28s}  +16.43d {+16d 25' 58"}
SUN_DIST:         54.14 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      267.75d {+17h 51m 00s}  -28.38d {-28d 22' 33"}
MOON_DIST:        86.11 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.19,-44.70 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      352.54, 14.91 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Coordinates.
COMMENTS:        This is an image trigger.  (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 336.42,1.84 [deg].

red DSS finding chart ps-file

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 05:38:35 UT
NOTICE_TYPE:     Swift-XRT Image
TRIGGER_NUM:     278693,   Seg_Num: 0
GRB_RA:          347.2194d {+23h 08m 52.6s} (J2000),
                 347.3118d {+23h 09m 14.8s} (current),
                 346.5907d {+23h 06m 21.7s} (1950)
GRB_DEC:         +10.7204d {+10d 43' 13.4"} (J2000),
                 +10.7603d {+10d 45' 36.9"} (current),
                 +10.4492d {+10d 26' 57.2"} (1950)
GRB_ERROR:       7.6 [arcsec, radius, statistical plus systematic]
GRB_INTEN:       20 [cnts]
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  20285.05 SOD {05:38:05.05} UT,   127.0 [sec] since BAT Trigger Time
CENTROID_X:      302.86,  raw= 303  [pixels]
CENTROID_Y:      279.12,  raw= 279  [pixels]
ROLL:            77.39 [deg]
GAIN:            1
MODE:            3, Long Image mode
WAVEFORM:        134
EXPO_TIME:       2.50 [sec]
GRB_POS_XRT_Y:   -44.50
GRB_POS_XRT_Z:   1.33
IMAGE_URL:       sw00278693000msxps_rw.img
SUN_POSTN:        42.87d {+02h 51m 28s}  +16.43d {+16d 25' 59"}
SUN_DIST:         54.14 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      267.76d {+17h 51m 04s}  -28.38d {-28d 22' 33"}
MOON_DIST:        86.10 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.19,-44.71 [deg] galactic lon,lat of the burst
ECL_COORDS:      352.54, 14.90 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Image.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 05:38:38 UT
NOTICE_TYPE:     Swift-XRT Processed Image
TRIGGER_NUM:     278693,   Seg_Num: 0
GRB_RA:          347.2194d {+23h 08m 52.6s} (J2000),
                 347.3118d {+23h 09m 14.8s} (current),
                 346.5907d {+23h 06m 21.7s} (1950)
GRB_DEC:         +10.7204d {+10d 43' 13.4"} (J2000),
                 +10.7603d {+10d 45' 36.9"} (current),
                 +10.4492d {+10d 26' 57.2"} (1950)
GRB_ERROR:       7.6 [arcsec, radius, statistical plus systematic]
GRB_INTEN:       20 [cnts]
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  20285.05 SOD {05:38:05.05} UT,   127.0 [sec] since BAT Trigger Time
CENTROID_X:      302.86,  raw= 303  [pixels]
CENTROID_Y:      279.12,  raw= 279  [pixels]
ROLL:            77.39 [deg]
GAIN:            1
MODE:            3, Long Image mode
WAVEFORM:        134
EXPO_TIME:       2.50 [sec]
GRB_POS_XRT_Y:   -44.50
GRB_POS_XRT_Z:   1.33
IMAGE_URL:       sw00278693000msxps_rw.img
SUN_POSTN:        42.87d {+02h 51m 28s}  +16.43d {+16d 25' 59"}
SUN_DIST:         54.14 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      267.77d {+17h 51m 04s}  -28.38d {-28d 22' 33"}
MOON_DIST:        86.10 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.19,-44.71 [deg] galactic lon,lat of the burst
ECL_COORDS:      352.54, 14.90 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Processed Image.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 05:38:34 UT
NOTICE_TYPE:     Swift-XRT Position
TRIGGER_NUM:     278693,   Seg_Num: 0
GRB_RA:          347.2194d {+23h 08m 52.6s} (J2000),
                 347.3118d {+23h 09m 14.8s} (current),
                 346.5907d {+23h 06m 21.7s} (1950)
GRB_DEC:         +10.7204d {+10d 43' 13.4"} (J2000),
                 +10.7603d {+10d 45' 36.9"} (current),
                 +10.4492d {+10d 26' 57.2"} (1950)
GRB_ERROR:       7.6 [arcsec radius, statistical plus systematic, 90% containment]
GRB_INTEN:       2.53e-10 [erg/cm2/sec]
GRB_SIGNIF:      4.47 [sigma]
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  20285.05 SOD {05:38:05.05} UT,   127.0 [sec] since BAT Trigger Time
TAM[0-3]:        327.64 237.22 261.24 243.61
AMPLIFIER:       2
WAVEFORM:        134
SUN_POSTN:        42.87d {+02h 51m 28s}  +16.43d {+16d 25' 59"}
SUN_DIST:         54.14 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      267.76d {+17h 51m 04s}  -28.38d {-28d 22' 33"}
MOON_DIST:        86.10 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.19,-44.71 [deg] galactic lon,lat of the burst
ECL_COORDS:      352.54, 14.90 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Coordinates.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 05:39:55 UT

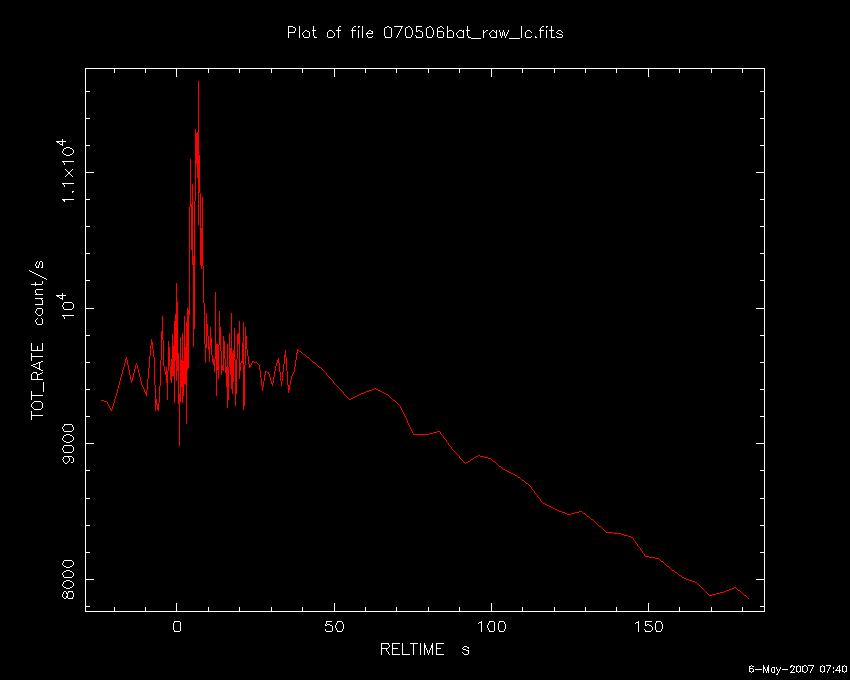

NOTICE_TYPE:     Swift-BAT GRB Lightcurve
TRIGGER_NUM:     278693,   Seg_Num: 0
GRB_RA:          347.217d {+23h 08m 52s} (J2000),
                 347.310d {+23h 09m 14s} (current),
                 346.589d {+23h 06m 21s} (1950)
GRB_DEC:         +10.728d {+10d 43' 42"} (J2000),
                 +10.768d {+10d 46' 05"} (current),
                 +10.457d {+10d 27' 26"} (1950)
GRB_DATE:        14226 TJD;   126 DOY;   07/05/06
GRB_TIME:        20158.06 SOD {05:35:58.06} UT
TRIGGER_INDEX:   20000
GRB_PHI:          22.01 [deg]
GRB_THETA:        15.31 [deg]
DELTA_TIME:      0.00 [sec]
TRIGGER_DUR:     64.000 [sec]
SOLN_STATUS:     0x13
RATE_SIGNIF:     0.00 [sigma]
IMAGE_SIGNIF:    8.48 [sigma]
LC_URL:          sw00278693000msb.lc
SUN_POSTN:        42.87d {+02h 51m 29s}  +16.43d {+16d 26' 00"}
SUN_DIST:         54.14 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      267.78d {+17h 51m 07s}  -28.38d {-28d 22' 33"}
MOON_DIST:        86.09 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.19,-44.70 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      352.54, 14.91 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Lightcurve.
COMMENTS:
COMMENTS:        The next comments were copied from the BAT_POS Notice:
COMMENTS:        This is an image trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 336.42,1.84 [deg].

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 05:46:07 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     278693,   Seg_Num: 0
POINT_RA:        347.218d {+23h 08m 52s} (J2000)
POINT_DEC:       +10.735d {+10d 44' 05"} (J2000)
POINT_ROLL:      77.388d
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  20616.65 SOD {05:43:36.65} UT,   458.6 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        3.575
N_STARS:         19
X_OFFSET:        488 [pixels]
Y_OFFSET:        598 [pixels]
X_MAX:           1447 [pixels]
Y_MAX:           1557 [pixels]
DET_THRESH:      16
PHOTO_THRESH:    9
SL_URL:          sw00278693000msufc0458.fits
SUN_POSTN:        42.87d {+02h 51m 30s}  +16.43d {+16d 26' 04"}
SUN_DIST:         54.15 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      267.84d {+17h 51m 21s}  -28.38d {-28d 22' 32"}
MOON_DIST:        86.04 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.20,-44.70 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      352.55, 14.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 05:46:55 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     278693,   Seg_Num: 0
POINT_RA:        347.218d {+23h 08m 52s} (J2000)
POINT_DEC:       +10.735d {+10d 44' 05"} (J2000)
POINT_ROLL:      77.388d
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  20616.65 SOD {05:43:36.65} UT,   458.6 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        3.575
N_STARS:         19
X_OFFSET:        488 [pixels]
Y_OFFSET:        598 [pixels]
X_MAX:           1447 [pixels]
Y_MAX:           1557 [pixels]
DET_THRESH:      16
PHOTO_THRESH:    9
SL_URL:          sw00278693000msufc0458.fits
SUN_POSTN:        42.87d {+02h 51m 30s}  +16.43d {+16d 26' 05"}
SUN_DIST:         54.15 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      267.85d {+17h 51m 23s}  -28.38d {-28d 22' 31"}
MOON_DIST:        86.03 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.20,-44.70 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      352.55, 14.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 05:47:54 UT

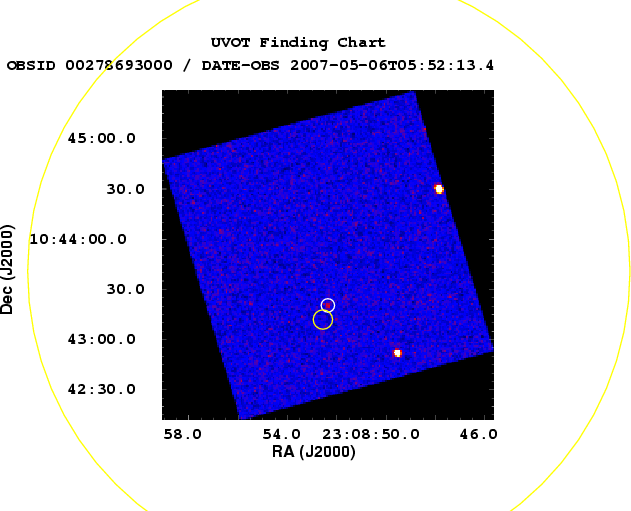

NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     278693,   Seg_Num: 0
POINT_RA:        347.218d {+23h 08m 52s} (J2000)
POINT_DEC:       +10.735d {+10d 44' 05"} (J2000)
ROLL:            77.388d
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  20616.65 SOD {05:43:36.65} UT,   458.6 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     200123018
X_OFFSET:        807 [pixels]
Y_OFFSET:        917 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       967
Y_GRB_POS:       1077
BINNING_INDEX:   1
IM_URL:          sw00278693000msuni0458.fits
SUN_POSTN:        42.87d {+02h 51m 30s}  +16.43d {+16d 26' 06"}
SUN_DIST:         54.15 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      267.86d {+17h 51m 25s}  -28.38d {-28d 22' 31"}
MOON_DIST:        86.02 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.20,-44.70 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      352.55, 14.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 05:48:13 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     278693,   Seg_Num: 0
POINT_RA:        347.218d {+23h 08m 52s} (J2000)
POINT_DEC:       +10.735d {+10d 44' 05"} (J2000)
ROLL:            77.388d
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  20616.65 SOD {05:43:36.65} UT,   458.6 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     200123018
X_OFFSET:        807 [pixels]
Y_OFFSET:        917 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       967
Y_GRB_POS:       1077
BINNING_INDEX:   1
IM_URL:          sw00278693000msuni0458.fits
SUN_POSTN:        42.88d {+02h 51m 30s}  +16.43d {+16d 26' 06"}
SUN_DIST:         54.15 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      267.86d {+17h 51m 26s}  -28.38d {-28d 22' 31"}
MOON_DIST:        86.02 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.20,-44.70 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      352.55, 14.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 05:58:49 UT
NOTICE_TYPE:     Swift-UVOT Position
TRIGGER_NUM:     278693,   Seg_Num: 0
GRB_RA:          347.2182d {+23h 08m 52.36s} (J2000),
                 347.3106d {+23h 09m 14.53s} (current),
                 346.5895d {+23h 06m 21.47s} (1950)
GRB_DEC:         +10.7223d {+10d 43' 20.2"} (J2000),
                 +10.7622d {+10d 45' 43.8"} (current),
                 +10.4511d {+10d 27' 04.0"} (1950)
GRB_ERROR:       0.4 [arcsec radius, statistical only]
GRB_MAG:         19.39 +/- 0.50 [mag]
FILTER:          10, White
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  20617.00 SOD {05:43:37.00} UT,   458.9 [sec] since BAT Trigger Time
SUN_POSTN:        42.88d {+02h 51m 32s}  +16.44d {+16d 26' 13"}
SUN_DIST:         54.16 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      267.96d {+17h 51m 51s}  -28.37d {-28d 22' 29"}
MOON_DIST:        85.93 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.19,-44.71 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      352.54, 14.90 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT UVOT Position Notice.
COMMENTS:        This Notice was ground-generated -- not flight-generated.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 06:05:22 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     278693,   Seg_Num: 0
POINT_RA:        347.217d {+23h 08m 52s} (J2000)
POINT_DEC:       +10.734d {+10d 44' 03"} (J2000)
POINT_ROLL:      77.389d
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  21025.83 SOD {05:50:25.83} UT,   867.8 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        3.598
N_STARS:         16
X_OFFSET:        488 [pixels]
Y_OFFSET:        598 [pixels]
X_MAX:           1447 [pixels]
Y_MAX:           1557 [pixels]
DET_THRESH:      16
PHOTO_THRESH:    9
SL_URL:          sw00278693000msufc0867.fits
SUN_POSTN:        42.89d {+02h 51m 33s}  +16.44d {+16d 26' 18"}
SUN_DIST:         54.16 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      268.03d {+17h 52m 06s}  -28.37d {-28d 22' 27"}
MOON_DIST:        85.88 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.19,-44.70 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      352.55, 14.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN Circular #6375
C. Pagani (PSU), M. M. Chester (PSU), C. Guidorzi (Univ Bicocca&INAF-OAB), S. Immler (GSFC/USRA), C. B. Markwardt (GSFC/UMD), D. M. Palmer (LANL), J. L. Racusin (PSU), T. Sakamoto (NASA/ORAU), M. Stamatikos (NASA/ORAU) and L. Vetere (PSU) report on behalf of the Swift Team:
At 05:35:58 UT, the Swift Burst Alert Telescope (BAT) triggered and located GRB 070506 (trigger=278693). Swift slewed to the burst immediately after the end of the 64 second image trigger. The BAT on-board calculated location is RA, Dec 347.217, +10.728 which is
```
   RA(J2000) = 23h 08m 52s
   Dec(J2000) = +10d 43' 42"
```
with an uncertainty of 3 arcmin (radius, 90% containment, including systematic uncertainty). The BAT light curve showed a double-peaked structure with a duration of about 6 sec. The peak count rate was ~1700 counts/sec (15-350 keV), at ~6 sec after the trigger.
The XRT began observing the field at 05:38:05 UT, 127 seconds after the BAT trigger. Using ground-processed quick-look data, XRT found an uncatalogued X-ray source located at RA, Dec 347.2192, +10.7224 which is
```
   RA(J2000) = 23h 08m 52.6s
   Dec(J2000) = 10d 43' 20.7"
```
with an uncertainty of 9.0 arcseconds (radius, 90% containment). This location is 22 arcseconds from the BAT on-board position, within the BAT error circle. The initial flux in the 2.5s image was 2.5e-10 erg/cm2/s (0.2-10 keV).
UVOT took a finding chart exposure of 100 seconds with the White (160-650 nm) filter starting 459 seconds after the BAT trigger. There is a candidate afterglow in the rapidly available 2.7'x2.7' sub-image at
```
   RA(J2000) =	23h 08m 52.39s (= 347.2183d)
   DEC(J2000) = +10d 43' 20.3" (= 10.7223d)
```
with a 1-sigma error radius of about 0.5 arc sec. This position is 3.0 arcseconds from the center of the XRT error circle. The estimated magnitude is 19.4 with a 1-sigma error of about 0.5 mag. No correction has been made for galactic reddening of E(B-V) = 0.040.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 06:06:44 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     278693,   Seg_Num: 0
POINT_RA:        347.217d {+23h 08m 52s} (J2000)
POINT_DEC:       +10.734d {+10d 44' 03"} (J2000)
ROLL:            77.389d
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  21025.83 SOD {05:50:25.83} UT,   867.8 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     200123427
X_OFFSET:        807 [pixels]
Y_OFFSET:        917 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       967
Y_GRB_POS:       1077
BINNING_INDEX:   1
IM_URL:          sw00278693000msuni0867.fits
SUN_POSTN:        42.89d {+02h 51m 33s}  +16.44d {+16d 26' 19"}
SUN_DIST:         54.16 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      268.04d {+17h 52m 10s}  -28.37d {-28d 22' 27"}
MOON_DIST:        85.87 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.19,-44.70 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      352.55, 14.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 06:07:06 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     278693,   Seg_Num: 0
POINT_RA:        347.217d {+23h 08m 52s} (J2000)
POINT_DEC:       +10.734d {+10d 44' 03"} (J2000)
ROLL:            77.389d
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  21025.83 SOD {05:50:25.83} UT,   867.8 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     200123427
X_OFFSET:        807 [pixels]
Y_OFFSET:        917 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       967
Y_GRB_POS:       1077
BINNING_INDEX:   1
IM_URL:          sw00278693000msuni0867.fits
SUN_POSTN:        42.89d {+02h 51m 33s}  +16.44d {+16d 26' 19"}
SUN_DIST:         54.16 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      268.04d {+17h 52m 10s}  -28.37d {-28d 22' 27"}
MOON_DIST:        85.86 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.19,-44.70 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      352.55, 14.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        If you have elected to receive attachments:
COMMENTS:        The uvot_catalog_image.fits.gz file does not exist; skipping the attachment.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 06:07:32 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     278693,   Seg_Num: 0
POINT_RA:        347.218d {+23h 08m 52s} (J2000)
POINT_DEC:       +10.734d {+10d 44' 04"} (J2000)
POINT_ROLL:      77.389d
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  21131.42 SOD {05:52:11.42} UT,   973.4 [sec] since BAT Trigger Time
FILTER:          3, V
BKG_MEAN:        3.737
N_STARS:         24
X_OFFSET:        488 [pixels]
Y_OFFSET:        598 [pixels]
X_MAX:           1447 [pixels]
Y_MAX:           1557 [pixels]
DET_THRESH:      16
PHOTO_THRESH:    9
SL_URL:          sw00278693000msufc0973.fits
SUN_POSTN:        42.89d {+02h 51m 33s}  +16.44d {+16d 26' 20"}
SUN_DIST:         54.16 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      268.05d {+17h 52m 11s}  -28.37d {-28d 22' 27"}
MOON_DIST:        85.86 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.20,-44.70 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      352.55, 14.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 06:08:12 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     278693,   Seg_Num: 0
POINT_RA:        347.218d {+23h 08m 52s} (J2000)
POINT_DEC:       +10.734d {+10d 44' 04"} (J2000)
POINT_ROLL:      77.389d
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  21131.42 SOD {05:52:11.42} UT,   973.4 [sec] since BAT Trigger Time
FILTER:          3, V
BKG_MEAN:        3.737
N_STARS:         24
X_OFFSET:        488 [pixels]
Y_OFFSET:        598 [pixels]
X_MAX:           1447 [pixels]
Y_MAX:           1557 [pixels]
DET_THRESH:      16
PHOTO_THRESH:    9
SL_URL:          sw00278693000msufc0973.fits
SUN_POSTN:        42.89d {+02h 51m 33s}  +16.44d {+16d 26' 20"}
SUN_DIST:         54.16 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      268.05d {+17h 52m 13s}  -28.37d {-28d 22' 27"}
MOON_DIST:        85.85 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.20,-44.70 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      352.55, 14.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 06:08:54 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     278693,   Seg_Num: 0
POINT_RA:        347.218d {+23h 08m 52s} (J2000)
POINT_DEC:       +10.734d {+10d 44' 04"} (J2000)
ROLL:            77.389d
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  21131.42 SOD {05:52:11.42} UT,   973.4 [sec] since BAT Trigger Time
FILTER:          3, V
EXPOSURE_ID:     200123533
X_OFFSET:        807 [pixels]
Y_OFFSET:        917 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       967
Y_GRB_POS:       1077
BINNING_INDEX:   1
IM_URL:          sw00278693000msuni0973.fits
SUN_POSTN:        42.89d {+02h 51m 33s}  +16.44d {+16d 26' 21"}
SUN_DIST:         54.16 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      268.06d {+17h 52m 15s}  -28.37d {-28d 22' 27"}
MOON_DIST:        85.85 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.20,-44.70 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      352.55, 14.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sun 06 May 07 06:09:08 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     278693,   Seg_Num: 0
POINT_RA:        347.218d {+23h 08m 52s} (J2000)
POINT_DEC:       +10.734d {+10d 44' 04"} (J2000)
ROLL:            77.389d
IMG_START_DATE:  14226 TJD;   126 DOY;   07/05/06
IMG_START_TIME:  21131.42 SOD {05:52:11.42} UT,   973.4 [sec] since BAT Trigger Time
FILTER:          3, V
EXPOSURE_ID:     200123533
X_OFFSET:        807 [pixels]
Y_OFFSET:        917 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       967
Y_GRB_POS:       1077
BINNING_INDEX:   1
IM_URL:          sw00278693000msuni0973.fits
SUN_POSTN:        42.89d {+02h 51m 33s}  +16.44d {+16d 26' 21"}
SUN_DIST:         54.16 [deg]   Sun_angle= 3.7 [hr] (West of Sun)
MOON_POSTN:      268.06d {+17h 52m 15s}  -28.37d {-28d 22' 26"}
MOON_DIST:        85.85 [deg]
MOON_ILLUM:      87 [%]
GAL_COORDS:       86.20,-44.70 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      352.55, 14.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN Circular #6376
L. Barbier (GSFC), S. D. Barthelmy (GSFC), J. Cummings (GSFC/UMBC), E. Fenimore (LANL), N. Gehrels (GSFC), H. Krimm (GSFC/USRA), C. Markwardt (GSFC/UMD), D. Palmer (LANL), A. Parsons (GSFC), T. Sakamoto (GSFC/ORAU), G. Sato (GSFC/ISAS), M. Stamatikos (GSFC/ORAU), J. Tueller (GSFC) on behalf of the Swift-BAT team:
Using the data set from T-239 to T+963 sec from the recent telemetry downlink, we report further analysis of BAT GRB 070506 (trigger #278693) (Pagani, et al., GCN Circ. 6375). The BAT ground-calculated position is RA, Dec = 347.203, 10.711 deg which is
```
   RA(J2000) = 23h 8m 48.8s
   Dec(J2000) = 10d 42' 40.3"
```
with an uncertainty of 2 arcmin, (radius, sys+stat, 90% containment). The partial coding was 96%.
The mask-weighted light curve begins to rises at ~T+2 sec, peaks at ~T+6.5 sec, and returns to the background level by ~T+10 sec, with trivial emission above 100 keV. T90 (15-350 keV) is 4.3 +- 0.3 sec (estimated error including systematics).
The time-averaged spectrum from T+4.1 to T+9.0 is best fit by a simple power-law model. The power law index of the time-averaged spectrum is 1.72 +- 0.17. The fluence in the 15-150 keV band is 2.1 +- 0.2 x 10^-7 erg/cm^2. The 1-sec peak photon flux measured from T+6.16 sec in the 15-150 keV band is 1.0 +- 0.1 ph/cm^2/sec. All the quoted errors are at the 90% confidence level.
GCN Circular #6377
C. Pagani, L. Vetere, J. L. Racusin and J. A. Kennea (PSU) report on behalf of the Swift Team:
We have analysed the first two orbits of Swift XRT data from GRB 070506 (trigger number 278693, GCN Circ 6375.), for a total photon counting mode exposure of 2.8ks. The XRT started collecting data in Image mode at 05:38:05 UT, 127 seconds after the BAT trigger, but observations in Photon Counting mode were delayed due to the SAA, starting 432 seconds after the trigger. The refined XRT position from 2.8ks of PC data is RA,DEC(J200) = 347.2179, +10.7217 which is
```
RA(J2000) = 23d 08m 52.30s
DEC(J200) = +10d 43' 18.2"
```
with an uncertainty of 5.4 arcsec (radius, 90% containment). This is 5.1 arcsec from the initial X-ray position and 2.4 arcsec from the UVOT optical counterpart (GCN 6375).
The XRT light curve created from the first two orbits of PC data reveals a decaying source with hints of flaring activity. A power law fit yields a decay slope of 0.55+/-0.06.
The X-ray spectrum of the PC data, modeled with an absorbed power law gives a photon index of 2.5+/-0.5 and a total column density of NH= (1.8+/-1.1)e21 cm**-2, in excess of the Galactic value of 0.4e21 cm**-2. The absorbed (unabsorbed) 0.3-10.0keV flux for this spectrum was 3.0E-12 (5.5E-12) ergs cm^-2 s^-1.
Assuming the source continues to decay at the same rate, we predict an XRT count rate of 2.2e-2 count/s at T+24 hours, which corresponds to an observed (unabsorbed) flux of 0.8E-12 (1.5E-12) ergs cm^-2 s^-1.
This circular is an official product of the Swift XRT team.
GCN Circular #6378
W. Landsman (SSAI/GSFC) and C. Pagani (PSU) report on behalf of the Swift/UVOT team:
The Swift/UVOT began taking data in the field of GRB070506 459s after the BAT trigger (Pagani et al., GCN 6375). A fading afterglow is weakly detected in the White, B and V UVOT filters, but not in the U or UV filters. We use the combined white image to obtain an improved position of
RA(J2000) = 23h 08m 52.39s Dec(J2000) = +10d 43' 20.8"
with a 1-sigma uncertainty radius of about 0.5". This is 0.5" from the UVOT position reported by Pagani et al. (GCN 6375) and 2.9" from the refined XRT position reported by Pagani et al. (GCN 6377).
Photometry results are given for the 7 UVOT filters below.
```
           Tstart   Tstop    Exp          Mag

White        459      558      98         19.7+/-0.18
             868      967      98         19.9+/-0.22
            7371     7570     196         20.4+/-0.28

V            974     1373     393         19.1+/-0.2
            7781     7980     197        >19.3 (3 sigma)

B            638     2245     136         19.8+/-0.34
            7167     7366     197        >20.4 (3 sigma)

U            638     5853     261        >20.1 (3 sigma)
UVW1         614     5741     352        >20.4 (3-sigma)
UWM2        7984     8142     155        >19.6 (3-sigma)
UVW2         840     7775     294        >20.4 (3-sigma)
```
No correction has been made for the expected Galactic reddening of E(B-V)=0.04
GCN Circular #6379
Christina C. Thoene (DARK), Andreas O. Jaunsen (Univ. Oslo), Johan P. U. Fynbo (DARK), Pall Jakobsson (Univ. of Hertfordshire) and Paul M. Vreeswijk (ESO) report:
We obtained 2x15min spectra of the OT of GRB 070506 (Pagani et al., GCN 6375 and 6378) on May 6.41 with FORS1/VLT during twilight. The grism used (300V) covers the wavelength range from 3000 to 9000 A.
The identification of a strong Lyman-alpha absorption together with SiII, FeII, CIV, AlII, AlIII and ZnII absorption lines leads to a redshift of z=2.31 for GRB 070506.
We thank the staff at Paranal for excellent support.
GCN Report 53.1
GCN_Report 53.1 has been posted: http://gcn.gsfc.nasa.gov/reports/report_53_1.pdf by C. Pagani at PSU titled: "Swift observations of GRB 070506"

Back to JG's homepage

Jochen Greiner, last update: 07-May-2007 [Disclaimer]
