Gamma-ray Burst 110407A

(All information courtesy of the instrument teams.)

Previous IAU Circulars

none

Results of Observations

GCN/BACODINE POSITION NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:07:59 UT
NOTICE_TYPE:     Swift-BAT GRB Position
TRIGGER_NUM:     450884,   Seg_Num: 0
GRB_RA:          185.997d {+12h 23m 59s} (J2000),
                 186.139d {+12h 24m 33s} (current),
                 185.364d {+12h 21m 27s} (1950)
GRB_DEC:         +15.718d {+15d 43' 04"} (J2000),
                 +15.655d {+15d 39' 20"} (current),
                 +15.995d {+15d 59' 41"} (1950)
GRB_ERROR:       3.00 [arcmin radius, statistical only]
GRB_INTEN:       0 [cnts]    Image_Peak=3064 [image_cnts]
TRIGGER_DUR:     64.000 [sec]
TRIGGER_INDEX:   20000     E_range: 15-50 keV
BKG_INTEN:       0 [cnts]
BKG_TIME:        0.00 SOD {00:00:00.00} UT
BKG_DUR:         0 [sec]
GRB_DATE:        15658 TJD;    97 DOY;   11/04/07
GRB_TIME:        50801.16 SOD {14:06:41.16} UT
GRB_PHI:         135.41 [deg]
GRB_THETA:        20.02 [deg]
SOLN_STATUS:     0x13
RATE_SIGNIF:     0.00 [sigma]
IMAGE_SIGNIF:    14.72 [sigma]
MERIT_PARAMS:     +1  +0  +0  +6  +1  +3  +0  +0 +90  +0
SUN_POSTN:        16.05d {+01h 04m 13s}   +6.84d {+06d 50' 09"}
SUN_DIST:        155.46 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.78d {+03h 55m 08s}  +22.48d {+22d 28' 49"}
MOON_DIST:       115.89 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.36, 76.93 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      179.07, 16.77 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Coordinates.
COMMENTS:        This is an image trigger.  (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 149.86,-9.97 [deg].

red DSS finding chart ps-file

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:09:54 UT
NOTICE_TYPE:     Swift-XRT Position
TRIGGER_NUM:     450884,   Seg_Num: 0
GRB_RA:          186.0333d {+12h 24m 07.99s} (J2000),
                 186.1757d {+12h 24m 42.17s} (current),
                 185.4007d {+12h 21m 36.15s} (1950)
GRB_DEC:         +15.7115d {+15d 42' 41.3"} (J2000),
                 +15.6491d {+15d 38' 56.9"} (current),
                 +15.9885d {+15d 59' 18.6"} (1950)
GRB_ERROR:       5.2 [arcsec radius, statistical plus systematic, 90% containment]
GRB_INTEN:       1.82e-09 [erg/cm2/sec]
GRB_SIGNIF:      8.24 [sigma]
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  50960.45 SOD {14:09:20.45} UT,   159.3 [sec] since BAT Trigger Time
TAM[0-3]:        327.66 237.21 261.56 243.71
AMPLIFIER:       2
WAVEFORM:        134
SUN_POSTN:        16.06d {+01h 04m 13s}   +6.84d {+06d 50' 11"}
SUN_DIST:        155.48 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.80d {+03h 55m 13s}  +22.48d {+22d 28' 57"}
MOON_DIST:       115.91 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.51, 76.94 [deg] galactic lon,lat of the burst
ECL_COORDS:      179.11, 16.78 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Coordinates.
COMMENTS:        The XRT position is 2.15 arcmin from the BAT position.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:10:04 UT
NOTICE_TYPE:     Swift-XRT Image
TRIGGER_NUM:     450884,   Seg_Num: 0
GRB_RA:          186.0333d {+12h 24m 07.9s} (J2000),
                 186.1757d {+12h 24m 42.1s} (current),
                 185.4007d {+12h 21m 36.1s} (1950)
GRB_DEC:         +15.7115d {+15d 42' 41.3"} (J2000),
                 +15.6491d {+15d 38' 56.9"} (current),
                 +15.9885d {+15d 59' 18.6"} (1950)
GRB_ERROR:       5.0 [arcsec, radius, statistical plus systematic]
GRB_INTEN:       68 [cnts]
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  50960.45 SOD {14:09:20.45} UT,   159.3 [sec] since BAT Trigger Time
CENTROID_X:      365.06,  raw= 365  [pixels]
CENTROID_Y:      292.11,  raw= 292  [pixels]
ROLL:            335.45 [deg]
GAIN:            1
MODE:            3, Long Image mode
WAVEFORM:        134
EXPO_TIME:       2.50 [sec]
GRB_POS_XRT_Y:   -13.88
GRB_POS_XRT_Z:   147.95
IMAGE_URL:       sw00450884000msxps_rw.img
SUN_POSTN:        16.06d {+01h 04m 13s}   +6.84d {+06d 50' 11"}
SUN_DIST:        155.48 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.80d {+03h 55m 13s}  +22.48d {+22d 28' 57"}
MOON_DIST:       115.91 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.51, 76.94 [deg] galactic lon,lat of the burst
ECL_COORDS:      179.11, 16.78 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Image.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:10:12 UT
NOTICE_TYPE:     Swift-XRT Processed Image
TRIGGER_NUM:     450884,   Seg_Num: 0
GRB_RA:          186.0333d {+12h 24m 07.9s} (J2000),
                 186.1757d {+12h 24m 42.1s} (current),
                 185.4007d {+12h 21m 36.1s} (1950)
GRB_DEC:         +15.7115d {+15d 42' 41.3"} (J2000),
                 +15.6491d {+15d 38' 56.9"} (current),
                 +15.9885d {+15d 59' 18.6"} (1950)
GRB_ERROR:       5.0 [arcsec, radius, statistical plus systematic]
GRB_INTEN:       68 [cnts]
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  50960.45 SOD {14:09:20.45} UT,   159.3 [sec] since BAT Trigger Time
CENTROID_X:      365.06,  raw= 365  [pixels]
CENTROID_Y:      292.11,  raw= 292  [pixels]
ROLL:            335.45 [deg]
GAIN:            1
MODE:            3, Long Image mode
WAVEFORM:        134
EXPO_TIME:       2.50 [sec]
GRB_POS_XRT_Y:   -13.88
GRB_POS_XRT_Z:   147.95
IMAGE_URL:       sw00450884000msxps_rw.img
SUN_POSTN:        16.06d {+01h 04m 13s}   +6.84d {+06d 50' 11"}
SUN_DIST:        155.48 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.80d {+03h 55m 13s}  +22.48d {+22d 28' 58"}
MOON_DIST:       115.91 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.51, 76.94 [deg] galactic lon,lat of the burst
ECL_COORDS:      179.11, 16.78 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Processed Image.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:10:39 UT
NOTICE_TYPE:     Swift-BAT GRB Lightcurve
TRIGGER_NUM:     450884,   Seg_Num: 0
GRB_RA:          185.997d {+12h 23m 59s} (J2000),
                 186.139d {+12h 24m 33s} (current),
                 185.364d {+12h 21m 27s} (1950)
GRB_DEC:         +15.718d {+15d 43' 04"} (J2000),
                 +15.655d {+15d 39' 20"} (current),
                 +15.995d {+15d 59' 41"} (1950)
GRB_DATE:        15658 TJD;    97 DOY;   11/04/07
GRB_TIME:        50801.16 SOD {14:06:41.16} UT
TRIGGER_INDEX:   20000
GRB_PHI:         135.41 [deg]
GRB_THETA:        20.02 [deg]
DELTA_TIME:      0.00 [sec]
TRIGGER_DUR:     64.000 [sec]
SOLN_STATUS:     0x13
RATE_SIGNIF:     0.00 [sigma]
IMAGE_SIGNIF:    14.72 [sigma]
LC_URL:          sw00450884000msb.lc
SUN_POSTN:        16.06d {+01h 04m 13s}   +6.84d {+06d 50' 12"}
SUN_DIST:        155.46 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.81d {+03h 55m 14s}  +22.48d {+22d 28' 59"}
MOON_DIST:       115.87 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.36, 76.93 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      179.07, 16.77 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Lightcurve.
COMMENTS:
COMMENTS:        The next comments were copied from the BAT_POS Notice:
COMMENTS:        This is an image trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 149.86,-9.97 [deg].

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:12:15 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     450884,   Seg_Num: 0
POINT_RA:        186.012d {+12h 24m 03s} (J2000)
POINT_DEC:       +15.747d {+15d 44' 50"} (J2000)
POINT_ROLL:      335.451d
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  50968.70 SOD {14:09:28.70} UT,   167.5 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        2.317
N_STARS:         16
X_OFFSET:        256 [pixels]
Y_OFFSET:        456 [pixels]
X_MAX:           1215 [pixels]
Y_MAX:           1415 [pixels]
DET_THRESH:      13
PHOTO_THRESH:    6
SL_URL:          sw00450884000msufc0167.fits
SUN_POSTN:        16.06d {+01h 04m 14s}   +6.84d {+06d 50' 13"}
SUN_DIST:        155.43 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.82d {+03h 55m 18s}  +22.48d {+22d 29' 06"}
MOON_DIST:       115.85 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.35, 76.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      179.07, 16.80 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:12:42 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     450884,   Seg_Num: 0
POINT_RA:        186.012d {+12h 24m 03s} (J2000)
POINT_DEC:       +15.747d {+15d 44' 50"} (J2000)
POINT_ROLL:      335.451d
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  50968.70 SOD {14:09:28.70} UT,   167.5 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        2.317
N_STARS:         16
X_OFFSET:        256 [pixels]
Y_OFFSET:        456 [pixels]
X_MAX:           1215 [pixels]
Y_MAX:           1415 [pixels]
DET_THRESH:      13
PHOTO_THRESH:    6
SL_URL:          sw00450884000msufc0167.fits
SUN_POSTN:        16.06d {+01h 04m 14s}   +6.84d {+06d 50' 14"}
SUN_DIST:        155.43 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.83d {+03h 55m 19s}  +22.49d {+22d 29' 07"}
MOON_DIST:       115.85 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.35, 76.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      179.07, 16.80 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

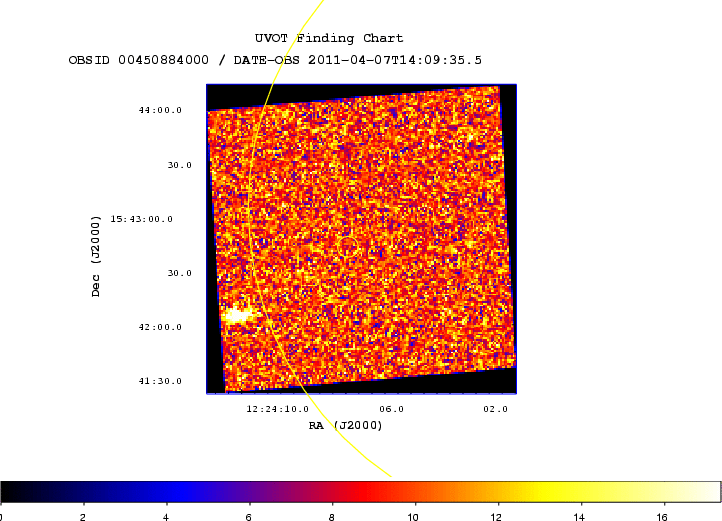

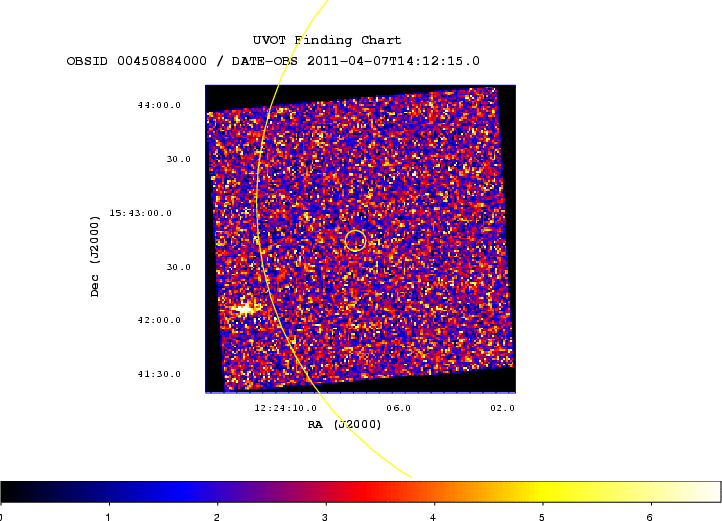

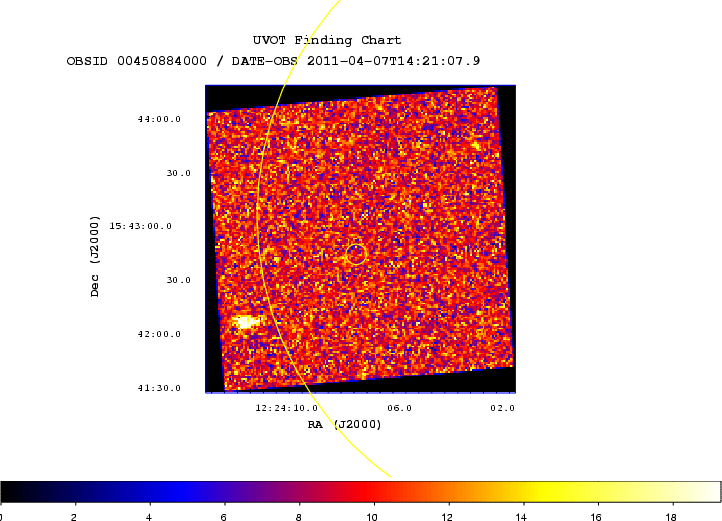

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:14:42 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     450884,   Seg_Num: 0
POINT_RA:        186.012d {+12h 24m 03s} (J2000)
POINT_DEC:       +15.747d {+15d 44' 50"} (J2000)
ROLL:            335.451d
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  50968.70 SOD {14:09:28.70} UT,   167.5 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     323878175
X_OFFSET:        550 [pixels]
Y_OFFSET:        1034 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       710
Y_GRB_POS:       1194
BINNING_INDEX:   1
IM_URL:          sw00450884000msuni0174.fits
SUN_POSTN:        16.06d {+01h 04m 14s}   +6.84d {+06d 50' 16"}
SUN_DIST:        155.43 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.85d {+03h 55m 23s}  +22.49d {+22d 29' 15"}
MOON_DIST:       115.83 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.35, 76.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      179.07, 16.80 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:14:54 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     450884,   Seg_Num: 0
POINT_RA:        186.012d {+12h 24m 03s} (J2000)
POINT_DEC:       +15.747d {+15d 44' 50"} (J2000)
ROLL:            335.451d
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  50968.70 SOD {14:09:28.70} UT,   167.5 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     323878175
X_OFFSET:        550 [pixels]
Y_OFFSET:        1034 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       710
Y_GRB_POS:       1194
BINNING_INDEX:   1
IM_URL:          sw00450884000msuni0174.fits
SUN_POSTN:        16.06d {+01h 04m 14s}   +6.84d {+06d 50' 16"}
SUN_DIST:        155.43 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.85d {+03h 55m 23s}  +22.49d {+22d 29' 16"}
MOON_DIST:       115.83 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.35, 76.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      179.07, 16.80 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:16:34 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     450884,   Seg_Num: 0
POINT_RA:        186.013d {+12h 24m 03s} (J2000)
POINT_DEC:       +15.747d {+15d 44' 50"} (J2000)
POINT_ROLL:      335.455d
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  51128.18 SOD {14:12:08.18} UT,   327.0 [sec] since BAT Trigger Time
FILTER:          7, U
BKG_MEAN:        0.641
N_STARS:         6
X_OFFSET:        230 [pixels]
Y_OFFSET:        714 [pixels]
X_MAX:           1189 [pixels]
Y_MAX:           1673 [pixels]
DET_THRESH:      7
PHOTO_THRESH:    3
SL_URL:          sw00450884000msufc0327.fits
SUN_POSTN:        16.06d {+01h 04m 14s}   +6.84d {+06d 50' 17"}
SUN_DIST:        155.43 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.86d {+03h 55m 27s}  +22.49d {+22d 29' 22"}
MOON_DIST:       115.82 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.36, 76.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      179.08, 16.80 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:16:53 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     450884,   Seg_Num: 0
POINT_RA:        186.013d {+12h 24m 03s} (J2000)
POINT_DEC:       +15.747d {+15d 44' 50"} (J2000)
POINT_ROLL:      335.455d
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  51128.18 SOD {14:12:08.18} UT,   327.0 [sec] since BAT Trigger Time
FILTER:          7, U
BKG_MEAN:        0.641
N_STARS:         6
X_OFFSET:        230 [pixels]
Y_OFFSET:        714 [pixels]
X_MAX:           1189 [pixels]
Y_MAX:           1673 [pixels]
DET_THRESH:      7
PHOTO_THRESH:    3
SL_URL:          sw00450884000msufc0327.fits
SUN_POSTN:        16.06d {+01h 04m 14s}   +6.84d {+06d 50' 18"}
SUN_DIST:        155.43 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.87d {+03h 55m 28s}  +22.49d {+22d 29' 23"}
MOON_DIST:       115.82 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.36, 76.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      179.08, 16.80 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:17:41 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     450884,   Seg_Num: 0
POINT_RA:        186.013d {+12h 24m 03s} (J2000)
POINT_DEC:       +15.747d {+15d 44' 50"} (J2000)
ROLL:            335.455d
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  51128.18 SOD {14:12:08.18} UT,   327.0 [sec] since BAT Trigger Time
FILTER:          7, U
EXPOSURE_ID:     323878335
X_OFFSET:        550 [pixels]
Y_OFFSET:        1034 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       710
Y_GRB_POS:       1194
BINNING_INDEX:   1
IM_URL:          sw00450884000msuni0334.fits
SUN_POSTN:        16.06d {+01h 04m 15s}   +6.84d {+06d 50' 18"}
SUN_DIST:        155.43 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.87d {+03h 55m 30s}  +22.49d {+22d 29' 26"}
MOON_DIST:       115.81 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.36, 76.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      179.08, 16.80 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:18:00 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     450884,   Seg_Num: 0
POINT_RA:        186.013d {+12h 24m 03s} (J2000)
POINT_DEC:       +15.747d {+15d 44' 50"} (J2000)
ROLL:            335.455d
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  51128.18 SOD {14:12:08.18} UT,   327.0 [sec] since BAT Trigger Time
FILTER:          7, U
EXPOSURE_ID:     323878335
X_OFFSET:        550 [pixels]
Y_OFFSET:        1034 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       710
Y_GRB_POS:       1194
BINNING_INDEX:   1
IM_URL:          sw00450884000msuni0334.fits
SUN_POSTN:        16.06d {+01h 04m 15s}   +6.84d {+06d 50' 19"}
SUN_DIST:        155.43 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.88d {+03h 55m 30s}  +22.49d {+22d 29' 28"}
MOON_DIST:       115.81 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.36, 76.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      179.08, 16.80 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN Circular #11894
C. W. Wolf (PSU), S. D. Barthelmy (GSFC), A. P. Beardmore (U Leicester), S. Campana (INAF-OAB), V. D'Elia (ASDC), P. A. Evans (U Leicester), N. Gehrels (NASA/GSFC), J. M. Gelbord (PSU), B. Gendre (ASDC), C. Guidorzi (U Ferrara), S. T. Holland (CRESST/USRA/GSFC), J. A. Kennea (PSU), H. A. Krimm (CRESST/GSFC/USRA), O. M. Littlejohns (U Leicester), V. Mangano (INAF-IASFPA), P. T. O'Brien (U Leicester), J. P. Osborne (U Leicester), C. Pagani (U Leicester), K. L. Page (U Leicester), P. Romano (INAF-IASFPA), M. H. Siegel (PSU), E. Sonbas (GSFC/USRA/Adiyaman Univ.), R. L. C. Starling (U Leicester), G. Stratta (ASDC), M. C. Stroh (PSU), C. A. Swenson (PSU), G. Tagliaferri (INAF-OAB), E. Troja (NASA/GSFC/ORAU) and T. N. Ukwatta (MSU) report on behalf of the Swift Team:
At 14:06:41 UT, the Swift Burst Alert Telescope (BAT) triggered and located GRB 110407A (trigger=450884). Swift slewed immediately to the burst. The BAT on-board calculated location is RA, Dec 185.997, +15.718 which is
```
   RA(J2000)  =  12h 23m 59s
   Dec(J2000) = +15d 43' 04"
```
with an uncertainty of 3 arcmin (radius, 90% containment, including systematic uncertainty). Even for an image trigger, the BAT lightcurve shows a smooth peak about 100 sec long with a peak roughly at T+20 sec.
The XRT began observing the field at 14:09:20.4 UT, 159.3 seconds after the BAT trigger. XRT found a bright, uncatalogued X-ray source located at RA, Dec 186.0333, +15.7115 which is equivalent to:
```
   RA(J2000)  = 12h 24m 07.99s
   Dec(J2000) = +15d 42' 41.3"
```
with an uncertainty of 5.2 arcseconds (radius, 90% containment). This location is 127 arcseconds from the BAT onboard position, within the BAT error circle. No event data are yet available to determine the column density using X-ray spectroscopy.
UVOT took a finding chart exposure of 150 seconds with the White filter starting 167 seconds after the BAT trigger. No credible afterglow candidate has been found in the initial data products. The 2.7'x2.7' sub-image covers 100% of the XRT error circle. The typical 3-sigma upper limit has been about 19.6 mag. The 8'x8' region for the list of sources generated on-board covers 100% of the XRT error circle. The list of sources is typically complete to about 18 mag. No correction has been made for the expected extinction corresponding to E(B-V) of 0.03.
Burst Advocate for this burst is C. W. Wolf (cwolf AT astro.psu.edu). Please contact the BA by email if you require additional information regarding Swift followup of this burst. In extremely urgent cases, after trying the Burst Advocate, you can contact the Swift PI by phone (see Swift TOO web site for information: http://www.swift.psu.edu/too.html.)
GCN Circular #11895
C. W. Wolf (PSU), S. D. Barthelmy (GSFC), A. P. Beardmore (U Leicester), S. Campana (INAF-OAB), V. D'Elia (ASDC), P. A. Evans (U Leicester), N. Gehrels (NASA/GSFC), J. M. Gelbord (PSU), B. Gendre (ASDC), C. Guidorzi (U Ferrara), S. T. Holland (CRESST/USRA/GSFC), J. A. Kennea (PSU), H. A. Krimm (CRESST/GSFC/USRA), O. M. Littlejohns (U Leicester), V. Mangano (INAF-IASFPA), P. T. O'Brien (U Leicester), J. P. Osborne (U Leicester), C. Pagani (U Leicester), K. L. Page (U Leicester), P. Romano (INAF-IASFPA), M. H. Siegel (PSU), E. Sonbas (GSFC/USRA/Adiyaman Univ.), R. L. C. Starling (U Leicester), G. Stratta (ASDC), M. C. Stroh (PSU), C. A. Swenson (PSU), G. Tagliaferri (INAF-OAB), E. Troja (NASA/GSFC/ORAU) and T. N. Ukwatta (MSU) report on behalf of the Swift Team:
At 14:06:41 UT, the Swift Burst Alert Telescope (BAT) triggered and located GRB 110407A (trigger=450884). Swift slewed immediately to the burst. The BAT on-board calculated location is RA, Dec 185.997, +15.718 which is
```
   RA(J2000)  =  12h 23m 59s
   Dec(J2000) = +15d 43' 04"
```
with an uncertainty of 3 arcmin (radius, 90% containment, including systematic uncertainty). Even for an image trigger, the BAT lightcurve shows a smooth peak about 100 sec long with a peak roughly at T+20 sec.
The XRT began observing the field at 14:09:20.4 UT, 159.3 seconds after the BAT trigger. XRT found a bright, uncatalogued X-ray source located at RA, Dec 186.0333, +15.7115 which is equivalent to:
```
   RA(J2000)  = 12h 24m 07.99s
   Dec(J2000) = +15d 42' 41.3"
```
with an uncertainty of 5.2 arcseconds (radius, 90% containment). This location is 127 arcseconds from the BAT onboard position, within the BAT error circle. No event data are yet available to determine the column density using X-ray spectroscopy.
UVOT took a finding chart exposure of 150 seconds with the White filter starting 167 seconds after the BAT trigger. No credible afterglow candidate has been found in the initial data products. The 2.7'x2.7' sub-image covers 100% of the XRT error circle. The typical 3-sigma upper limit has been about 19.6 mag. The 8'x8' region for the list of sources generated on-board covers 100% of the XRT error circle. The list of sources is typically complete to about 18 mag. No correction has been made for the expected extinction corresponding to E(B-V) of 0.03.
Burst Advocate for this burst is C. W. Wolf (cwolf AT astro.psu.edu). Please contact the BA by email if you require additional information regarding Swift followup of this burst. In extremely urgent cases, after trying the Burst Advocate, you can contact the Swift PI by phone (see Swift TOO web site for information: http://www.swift.psu.edu/too.html.)

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:24:04 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     450884,   Seg_Num: 0
POINT_RA:        186.013d {+12h 24m 03s} (J2000)
POINT_DEC:       +15.747d {+15d 44' 50"} (J2000)
POINT_ROLL:      335.455d
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  51661.03 SOD {14:21:01.03} UT,   859.9 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        2.369
N_STARS:         51
X_OFFSET:        0 [pixels]
Y_OFFSET:        474 [pixels]
X_MAX:           1439 [pixels]
Y_MAX:           1913 [pixels]
DET_THRESH:      13
PHOTO_THRESH:    7
SL_URL:          sw00450884000msufc0859.fits
SUN_POSTN:        16.06d {+01h 04m 16s}   +6.84d {+06d 50' 24"}
SUN_DIST:        155.43 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.93d {+03h 55m 44s}  +22.50d {+22d 29' 51"}
MOON_DIST:       115.76 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.36, 76.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      179.08, 16.80 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:24:18 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     450884,   Seg_Num: 0
POINT_RA:        186.013d {+12h 24m 03s} (J2000)
POINT_DEC:       +15.747d {+15d 44' 50"} (J2000)
POINT_ROLL:      335.455d
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  51661.03 SOD {14:21:01.03} UT,   859.9 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        2.369
N_STARS:         51
X_OFFSET:        0 [pixels]
Y_OFFSET:        474 [pixels]
X_MAX:           1439 [pixels]
Y_MAX:           1913 [pixels]
DET_THRESH:      13
PHOTO_THRESH:    7
SL_URL:          sw00450884000msufc0859.fits
SUN_POSTN:        16.06d {+01h 04m 16s}   +6.84d {+06d 50' 25"}
SUN_DIST:        155.43 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.93d {+03h 55m 44s}  +22.50d {+22d 29' 52"}
MOON_DIST:       115.76 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.36, 76.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      179.08, 16.80 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:24:43 UT
NOTICE_TYPE:     Swift-XRT Position UPDATE
TRIGGER_NUM:     450884,   Seg_Num: 0
GRB_RA:          186.0309d {+12h 24m 07.41s} (J2000),
                 186.1733d {+12h 24m 41.60s} (current),
                 185.3983d {+12h 21m 35.58s} (1950)
GRB_DEC:         +15.7118d {+15d 42' 42.4"} (J2000),
                 +15.6494d {+15d 38' 58.0"} (current),
                 +15.9888d {+15d 59' 19.7"} (1950)
GRB_ERROR:       2.4 [arcsec radius, statistical plus systematic, 90% containment]
GRB_INTEN:       1.00e-10 [erg/cm2/sec]
GRB_SIGNIF:      10.00 [sigma]
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  51485.00 SOD {14:18:05.00} UT,   683.8 [sec] since BAT Trigger Time
TAM[0-3]:        100.00 100.00 100.00 100.00
AMPLIFIER:       1
WAVEFORM:        31
SUN_POSTN:        16.07d {+01h 04m 16s}   +6.84d {+06d 50' 25"}
SUN_DIST:        155.47 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.94d {+03h 55m 45s}  +22.50d {+22d 29' 53"}
MOON_DIST:       115.79 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.50, 76.94 [deg] galactic lon,lat of the burst
ECL_COORDS:      179.11, 16.78 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Coordinates.
COMMENTS:        This Notice was ground-generated -- not flight-generated.
COMMENTS:        This is an Update Notice -- the RA,Dec values herein supersede the previous XRT_POS Notice.
COMMENTS:        TAM values, flux and significance fields are not valid.
COMMENTS:        This position was automatically generated on the ground using
COMMENTS:        Photon Counting data telemetered via TDRSS (SPER data).
COMMENTS:        See http://www.swift.ac.uk/sper/docs.php for details.
COMMENTS:        This position was enhanced using UVOT field astrometry.
COMMENTS:        The probability that this is a serendipitous source in the
COMMENTS:        SPER window is 0.58% < P(seren) < 1.1%.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:25:29 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     450884,   Seg_Num: 0
POINT_RA:        186.013d {+12h 24m 03s} (J2000)
POINT_DEC:       +15.747d {+15d 44' 50"} (J2000)
ROLL:            335.455d
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  51661.03 SOD {14:21:01.03} UT,   859.9 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     323878867
X_OFFSET:        559 [pixels]
Y_OFFSET:        1033 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       719
Y_GRB_POS:       1193
BINNING_INDEX:   1
IM_URL:          sw00450884000msuni0866.fits
SUN_POSTN:        16.07d {+01h 04m 16s}   +6.84d {+06d 50' 26"}
SUN_DIST:        155.43 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.94d {+03h 55m 47s}  +22.50d {+22d 29' 56"}
MOON_DIST:       115.75 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.36, 76.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      179.08, 16.80 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 07 Apr 11 14:25:43 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     450884,   Seg_Num: 0
POINT_RA:        186.013d {+12h 24m 03s} (J2000)
POINT_DEC:       +15.747d {+15d 44' 50"} (J2000)
ROLL:            335.455d
IMG_START_DATE:  15658 TJD;    97 DOY;   11/04/07
IMG_START_TIME:  51661.03 SOD {14:21:01.03} UT,   859.9 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     323878867
X_OFFSET:        559 [pixels]
Y_OFFSET:        1033 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       719
Y_GRB_POS:       1193
BINNING_INDEX:   1
IM_URL:          sw00450884000msuni0866.fits
SUN_POSTN:        16.07d {+01h 04m 16s}   +6.84d {+06d 50' 26"}
SUN_DIST:        155.43 [deg]   Sun_angle= -11.3 [hr] (East of Sun)
MOON_POSTN:       58.95d {+03h 55m 47s}  +22.50d {+22d 29' 57"}
MOON_DIST:       115.75 [deg]
MOON_ILLUM:      14 [%]
GAL_COORDS:      272.36, 76.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      179.08, 16.80 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN Circular #11896
P.A. Evans (U. Leicester) reports on behalf of the Swift-XRT team:
Using promptly downlinked XRT event data for GRB 110407A, we find an enhanced XRT position of the afterglow: RA, Dec: 186.0313, 15.7117 which is equivalent to:
```
   RA (J2000)  = 12 24 7.51
   Dec (J2000) = +15 42 42.1
```
with an uncertainty of 2.1 arc sec (radius, 90% confidence). Analysis of the promptly available data is online at http://www.swift.ac.uk/sper/450884.
Position enhancement is is described by Goad et al. (2007, A&A, 476, 1401) and Evans et al. (2009, MNRAS, 397, 1177).
This circular is an official product of the Swift-XRT team.
GCN Circular #11897
V.Yurkov, Yu.Sergienko, D.Varda, I.Kudelina Blagoveschensk Educational State University, Blagoveschensk
E. Gorbovskoy, V. Lipunov, V.Kornilov, D.Kuvshinov, A.Belinski, N.Tyurina, N.Shatskiy, P.Balanutsa, V.V.Chazov, P.V.Kortunov, A.Kuznetsov, D.Zimnukhov, M. Kornilov, A.Kuznetsov, D.Zimnukhov, M. Kornilov, A.Sankovich Sternberg Astronomical Institute, Moscow State University
A. Tlatov, A.V. Parhomenko, D. Dormidontov Kislovodsk Solar Station of the Pulkovo Observatory
V.Krushinski, I.Zalozhnich, T.Kopytova, A. Popov Ural State University, Kourovka
K.Ivanov, S.Yazev, N.M.Budnev, E.Konstantinov, V.Lenok, O.Gres, O.Chuvalaev, V.A.Poleshchuk Irkutsk State University
MASTER II robotic telescope (MASTER-Net: http://observ.pereplet.ru) located in Blagoveschensk was pointed to the GRB110407 25 sec s after notice time and 107 sec after GRB time at 2011-04-07 14:08:28.65 UT. On our first (20s exposure) set we haven`t found optical transient within SWIFT-BAT error-box. The 5-sigma unfiltred upper limit has been about 17.8 mag
MASTER II robotic telescope in Tunka also pointed on GRB110407 at same time in two polarizations. Unfortunately during this moment there was a strong clouds in the given direction and a upper limit very small.
The message may be cited.
GCN Circular #11898
L.P. Xin, Y. Urata, Z. X. Ling, Y.L. Qiu, J.Y. Wei, J. Wang, J.S. Deng, C. Wu, X. H. Han on behalf of EAFON report:
We began to observe GRB110407A ( Wolf et al., GCN 11894) with Xinglong TNT telescope at 14:28:05(UT), 21.5min after the burst, under the dusty and cloudy wheather. A series of R-band images were obtained. No any new source was found within the errorbox of X-ray counterpart ( Wolf et al., GCN 11894 ), down to 3 sigma upper limit of R ~ 18.3 mag, derived from USNO B1.0 R2 magnitude, at the mean time of 26 min after the burst
This message may be cited.
GCN Circular #11899
GRB 110407A : Lulin optical afterglow detection
C.J. Chuang, C.S. Lin, Y. Urata (NCU) and K.Y. Huang (ASIAA) on behalf of the EAFON cooperation:
The 1-m telescope at Lulin Observatory started to observe GRB110407A (Wolf et al. GCN 11849) at 21 minutes after the BAT trigger. A series of our r'-band observations found a fading optical source in the XRT error region reported by Evans (GCN 11896). The position of the optical afterglow candidate is
```
RA(J200) = 12:24:07.534
Dec(J200) = +15:42:46.63
```
with 1" error.
We estimated the brightness of the optical transient against with several SDSS stars.
```
Time (sec)  mag(AB)  error
1438        20.9     0.1
4758        22.7     0.3
```
This message may be cited
GCN Circular #11901
GRB 100407A : Errata of afterglow position in GCN 11899
C.J. Chuang, C.S. Lin, Y. Urata (NCU) and K.Y. Huang (ASIAA) on behalf of the EAFON cooperation:
We made a typo on optical afterglow position reported in GCN 11899. The correct afterglow position is
```
RA(J2000) = 12:24:07.534, with 1" error
Dec(J2000) = +15:42:42.63,with 1" error

```
We apologize for the possible inconvenience.
GCN Circular #11902
T. N. Ukwatta (MSU), S. D. Barthelmy (GSFC), W. H. Baumgartner (GSFC/UMBC), J. R. Cummings (GSFC/UMBC), N. Gehrels (GSFC), H. A. Krimm (GSFC/USRA), C. B. Markwardt (GSFC), D. M. Palmer (LANL), T. Sakamoto (GSFC/UMBC), M. Stamatikos (OSU), J. Tueller (GSFC), C. W. Wolf (PSU) (i.e. the Swift-BAT team):
Using the data set from T-239 to T+800 sec from recent telemetry downlinks, we report further analysis of BAT GRB 110407A (trigger #450884) (Wolf, et al., GCN Circ. 11894). The BAT ground-calculated position is RA, Dec = 186.022, 15.726 deg, which is
```
   RA(J2000)  =  12h 24m 05.3s
   Dec(J2000) = +15d 43' 33.2"
```
with an uncertainty of 1.5 arcmin, (radius, sys+stat, 90% containment). The partial coding was 77%.
The mask-weighted light curve shows several overlapping peaks starting at ~T-10 sec, peaking at ~T+15 sec, and ending around T+275 sec. T90 (15-350 keV) is 145 +- 15 sec (estimated error including systematics).
The time-averaged spectrum from T-2.9 to T+158.8 sec is best fit by a power law with an exponential cutoff. This fit gives a photon index 0.73 +- 0.64, and Epeak of 57.9 +- 15.1 keV (chi squared 46.5 for 56 d.o.f.). For this model the total fluence in the 15-150 keV band is 1.7 +- 0.2 x 10^-6 erg/cm2 and the 1-sec peak flux measured from T+27.64 sec in the 15-150 keV band is 0.5 +- 0.1 ph/cm2/sec. A fit to a simple power law gives a photon index of 1.73 +- 0.12 (chi squared 55.6 for 57 d.o.f.). All the quoted errors are at the 90% confidence level.
The results of the batgrbproduct analysis are available at http://gcn.gsfc.nasa.gov/notices_s/450884/BA/
GCN Circular #11903
P.A. Evans, M.R. Goad, J.P. Osborne and A.P. Beardmore (U. Leicester) report on behalf of the Swift-XRT team.
Using 2767 s of XRT Photon Counting mode data and 6 UVOT images for GRB 110407A, we find an astrometrically corrected X-ray position (using the XRT-UVOT alignment and matching UVOT field sources to the USNO-B1 catalogue): RA, Dec = 186.03111, +15.71170 which is equivalent to:
```
RA (J2000): 12h 24m 7.47s
Dec (J2000): +15d 42' 42.1"
```
with an uncertainty of 1.7 arcsec (radius, 90% confidence).
This position may be improved as more data are received. The latest position can be viewed at http://www.swift.ac.uk/xrt_positions. Position enhancement is described by Goad et al. (2007, A&A, 476, 1401) and Evans et al. (2009, MNRAS, 397, 1177).
This circular was automatically generated, and is an official product of the Swift-XRT team.
GCN Circular #11904
Daniele Malesani (DARK/NBI), Paul Vreeswijk (Univ. Iceland), Dong Xu (WIS), Johan Fynbo (DARK/NBI), Pall Jakobsson (Univ. Iceland), Ingvar Svardh (NOT), and Martin Nielsen (NOT), report on behalf of a larger collaboration:
We observed the field of GRB 110407A (Wolf et al., GCN 11895) with the Nordic Optical Telescope equipped with MOSCA. Observations were carried out in the R band, with a seeing of ~1.6", for a total observation time of 50 minutes. The mean time of the observation was Apr 7.943 UT (8.52 hr after the GRB).
At the position of the optical and X-ray transient (Chuang et al., GCNs 11899, 11901; Evans et al., GCN 11903), we detect a source close to the detection limit. Its magnitude is R = 23.2 +- 0.20 (Vega) based on calibration against the SDSS r band.
GCN Circular #11905
D. Kuroda, (OAO, NAOJ), H. Hanayama (IAO, NAOJ), K. Yanagisawa, Y. Shimizu, H. Toda (OAO, NAOJ), T. Miyaji J. Watanabe, (IAO, NAOJ), S.Nagayama (NAOJ), M. Yoshida (Hiroshima), K. Ohta (Kyoto) and N. Kawai(Tokyo Tech) report on behalf of the MITSuME collaboration:
We observed the field of GRB 110407A (Wolf et al., GCN 11894) with the optical three color (g', Rc and Ic) CCD camera attached to the MITSuME 50cm telescope of Okayama Astrophysical Observatory and the Murikabushi 1m telescope of Ishigakijima Astronomical Observatory.
We did not find any new point source within the enhanced XRT error circle (Evans et al., GCNC 11903) in all the three bands. We could not detect the previously reported afterglow (Chuang et al., GCN 11899).
Three sigma upper limits of the OT are listed below. We used SDSS catalog for flux calibration.
Okayama Astrophysical Observatory: The observation started on 2011-04-07 14:08:27, (1.8 min after the burst).
```
T0+[day]   MID-UT   T-EXP[sec]    g'     Rc     Ic
------------------------------------------------------
0.00472    14:13:28     540.0    >19.3  >19.1  >18.2
0.07701    15:57:35    6840.0    >20.3  >20.2  >19.4
------------------------------------------------------
```
T0+ : Elapsed time after the burst [day] T-EXP: Total Exposure time [sec]
Ishigakijima Astronomical Observatory: The observation started on2011-04-07 15:51:28 UT, (1.7 h after the burst).
```
T0+[day]   MID-UT   T-EXP[sec]    g'     Rc     Ic
------------------------------------------------------
0.12244    17:02:59    1080.0    >20.9  >20.7  >19.7
------------------------------------------------------
```
T0+ : Elapsed time after the burst [day] T-EXP: Total Exposure time [sec]
GCN Circular #11906
D. A. Kann (TLS Tautenburg), P. Schady and J. Greiner (both MPE Garching) report on behalf of the GROND team:
We observed the field of GRB 110407A (Swift trigger 450884; Wolf et al., GCN #11894) simultaneously in g'r'i'z'JHK with GROND (Greiner et al. 2008, PASP 120, 405) mounted at the 2.2 m MPI/ESO telescope at La Silla Observatory (Chile).
Observations started at 00:50 UT on April 8, 11 hours after the GRB trigger, and continued until ~03:30 UT. They were performed at a seeing of 1.5-2.5" and at an average airmass of 1.5.
We detect a point source within the 1.7 arcsec enhanced Swift-XRT error circle (Evans et al., GCN #11903), consistent with the optical afterglow detection reported by Chuang et al. (GCN #11901) and Malesani et al. (GCN #11904) in the g'r'i'z' bands. In an exposure of 102 mins at a mid-observing time of 02:31 UT (12.5 hours after the BAT trigger), we estimate a preliminary r'-band magnitude (in the AB system) of 23.9+/-0.1.
The r'-band magnitude is calibrated against SDSS field stars and has not been corrected for the expected Galactic foreground extinction corresponding to a reddening of E_(B-V)=0.03 mag in the direction of the burst (Schlegel et al. 1998).
GCN Circular #11907
S. R. Oates (MSSL-UCL) & C. W. Wolf (PSU) report on behalf of the Swift-UVOT team
The Swift/UVOT began settled observations of the field of GRB 110407A 168s after the trigger (Wolf et al., GCN Circ. 11895). We do not detect a source at the position of the X-ray (Evans et al., GCN Circ. 11896, 11903) or optical afterglow reported by Lulin (Chuang et al, GCN Circ. 11899, 11901), NOT (Malesani et al., GCN Circ. 11904) and GROND (Kann et al, GCN Circ. 11906).
Preliminary magnitudes using the UVOT photometric system (Poole et al. 2008,MNRAS, 383, 627) for the finding chart (FC) and summed exposures at the location of the optical afterglow are:
```
Filter  T_start(s)  T_stop(s)   Exp(s)       Mag/3sigUL
#####################################################
wh (FC)    168        317       147          >20.82
wh	   607        6514      580          >21.59
u (FC)	   327        577       246          >20.11
u          732        6104      413          >20.41
v          658        6873      382          >19.74
b	   583        6309      432          >20.75
uvw1	   708        5899      413          >20.34
uvm2	   5493       5693      197          >19.75
uvw2       808        6719      413          >20.68
#####################################################
```
The values quoted above are not corrected for the Galactic extinction due to the reddening of E(B-V) = 0.03 in the direction of the burst (Schlegel et al. 1998).
GCN Circular #11908
V.Yurkov, Yu.Sergienko, D.Varda, I.Kudelina Blagoveschensk Educational State University, Blagoveschensk
E. Gorbovskoy, V. Lipunov, V.Kornilov, D.Kuvshinov, A.Belinski, N.Tyurina, N.Shatskiy, P.Balanutsa, V.V.Chazov, P.V.Kortunov, A.Kuznetsov, D.Zimnukhov, M. Kornilov, A.Kuznetsov, D.Zimnukhov, M. Kornilov, A.Sankovich Sternberg Astronomical Institute, Moscow State University
A. Tlatov, A.V. Parhomenko, D. Dormidontov Kislovodsk Solar Station of the Pulkovo Observatory
V.Krushinski, I.Zalozhnich, T.Kopytova, A. Popov Ural State University, Kourovka
K.Ivanov, S.Yazev, N.M.Budnev, E.Konstantinov, V.Lenok, O.Gres, O.Chuvalaev, V.A.Poleshchuk Irkutsk State University
MASTER II robotic telescope (MASTER-Net: http://observ.pereplet.ru) located in Blagoveschensk was pointed to the GRB110407 25 sec after notice time and 107 sec after GRB time at 2011-04-07 14:08:28.65 UT. On our first (20s exposure) set we haven`t found optical transient within SWIFT-BAT error-box up to 17.8 mag (5 sigma unfiltered)(Yurkov et al., GCN Circ No 11897).
The results of the follow observations are:
```
T_mean-Tgrb [s]   Tstart 	   exptime   3 sigma-mlimit    Coadd
     209          14:08:28           200            19.7       5
    1143   	 14:14:03          1220            21.3      10
    2341 	 14:14:03          3380            22.0      22
    3640  	 14:14:03          5720            22.5      35
```
There is no OT at the Lulin position (Chuang et al., GCN Circ 11899)
The message may be cited.
GCN Circular #11912
B. E. Cobb (GWU), reports:
Using the ANDICAM instrument on the SMARTS 1.3m telescope at CTIO, we obtained optical imaging of the error region of GRB 110407A (GCN 11894, Wolf et al.) with a mid-exposure time of 2011-04-08 02:12 UT (~12.1 hrs post-burst). The total summed exposure time amounted to 36 minutes in I.
No optical sources is detected at the position of the optical afterglow of GRB 110407A (GCN 11901, Chuang et al.; GCN 11904, Malesani et al.; GCN 11906, Kann et al.) to a limit of I > 20.3. Optical photometry is calibrated against Landolt standard stars.
GCN Circular #11914
Matus Kocka (AI AS CR), Rudolf Slosiar (Rudy BASE Observatory Bojnice), Vladimir Karlovsky (Observatory Hlohovec), Richard Marko (AI AS CR), Jan Karlovsky (Observatory Hlohovec), Rene Hudec (AI AS CR)
We observed the ionospheric perturbation on Apr. 7th which started at 14:06:21 UT from 3 different VLF receivers, so called SID monitors (Sudden Ionospheric Disturbance) on ICV channel 20.27kHz. This event is with a high probability GRB 110407A (Wolf et al., GCN 11895). The detectors are located in Bojnice (Slovakia), Hlohovec (Slovakia) and Brno (Czech Republic). Those places are so far apart that we can rule out a possibility of a local disturbance.
The plot from all three SID-monitors is here: http://zeus.asu.cas.cz/~koci/grb110407a/GRB110407A_vlf.png
Further analysis is ongoing.
GCN Circular #11916
C. W. Wolf (PSU) reports on behalf of the Swift-XRT team:
We have analysed 26 ks of XRT data for GRB 110407A (Wolf et al. GCN Circ. 11894), from 147 s to 272.1 ks after the BAT trigger. The data comprise 593 s in Windowed Timing (WT) mode (the first 10 s were taken while Swift was slewing) with the remainder in Photon Counting (PC) mode. The enhanced XRT position for this burst was given by Evans et al. (GCN. Circ 11896).
After initial flaring (T>0.9 ks), the light curve can be modeled by a broken power-law model, with an initial decay index of alpha1=2.19 (+0.12, -0.11). A break occurs at T+13.6 ks followed by a plateau phase with a decay index of alpha2 = 0.4 (+0.5, -0.7).
A spectrum formed from the WT mode data can be fitted with an absorbed power-law with a photon spectral index of 1.80 (+/-0.05). The best-fitting absorption column is 1.00 (+/-0.13) x 10^21 cm^-2, in excess of the Galactic value of 2.0 x 10^20 cm^-2 (Kalberla et al. 2005). The PC mode spectrum has a photon index of 1.87 (+0.21, -0.11) and a best-fitting absorption column of 8.4 (+5.1, -2.7) x 10^20 cm^-2. The counts to observed (unabsorbed) 0.3-10 keV flux conversion factor deduced from this spectrum is 4.2 x 10^-11 (5.0 x 10^-11) erg cm^-2 count^-1.
A summary of the PC-mode spectrum is thus:
```
Total column:	     8.4 (+5.1, -2.7) x 10^20 cm^-2
Galactic foreground: 2.0 x 10^20 cm^-2
Excess significance: 5.2 sigma
Photon index:	     1.87 (+0.21, -0.11)
```
The results of the XRT-team automatic analysis are available at http://www.swift.ac.uk/xrt_products/00450884.
This circular is an official product of the Swift-XRT team.
GCN Report 374.1
GCN_Report 374.1 has been posted: http://gcn.gsfc.nasa.gov/reports/report_374_1.pdf by C.A. Wolf at PSU titled: "Swift Observations of GRB 110407A"

Back to JG's homepage

Jochen Greiner, last update: 11-Apr-2011 [Disclaimer]
