Gamma-ray Burst 201128A

(All information courtesy of the instrument teams.)

Previous IAU Circulars

none

Results of Observations

GCN/BACODINE POSITION NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:29:00 UT
NOTICE_TYPE:     Swift-BAT GRB Position
TRIGGER_NUM:     1009679,   Seg_Num: 0
GRB_RA:          223.136d {+14h 52m 33s} (J2000),
                 223.363d {+14h 53m 27s} (current),
                 222.591d {+14h 50m 22s} (1950)
GRB_DEC:         +26.678d {+26d 40' 41"} (J2000),
                 +26.593d {+26d 35' 36"} (current),
                 +26.882d {+26d 52' 55"} (1950)
GRB_ERROR:       3.00 [arcmin radius, statistical only]
GRB_INTEN:       14966 [cnts]    Image_Peak=334 [image_cnts]
TRIGGER_DUR:     5.504 [sec]
TRIGGER_INDEX:   476     E_range: 25-100 keV
BKG_INTEN:       118085 [cnts]
BKG_TIME:        23205.94 SOD {06:26:45.94} UT
BKG_DUR:         48 [sec]
GRB_DATE:        19181 TJD;   333 DOY;   20/11/28
GRB_TIME:        23278.32 SOD {06:27:58.32} UT
GRB_PHI:         -171.73 [deg]
GRB_THETA:        24.85 [deg]
SOLN_STATUS:     0x3
RATE_SIGNIF:     12.36 [sigma]
IMAGE_SIGNIF:    7.45 [sigma]
MERIT_PARAMS:     +1  +0  +0  +2  +2  -2  +0  +0 -61  +0
SUN_POSTN:       244.63d {+16h 18m 31s}  -21.39d {-21d 23' 20"}
SUN_DIST:         52.22 [deg]   Sun_angle= 1.4 [hr] (West of Sun)
MOON_POSTN:       41.82d {+02h 47m 17s}  +12.77d {+12d 46' 04"}
MOON_DIST:       140.61 [deg]
MOON_ILLUM:      96 [%]
GAL_COORDS:       38.98, 63.06 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      210.36, 40.92 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Coordinates.
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 94.20,-17.73 [deg].

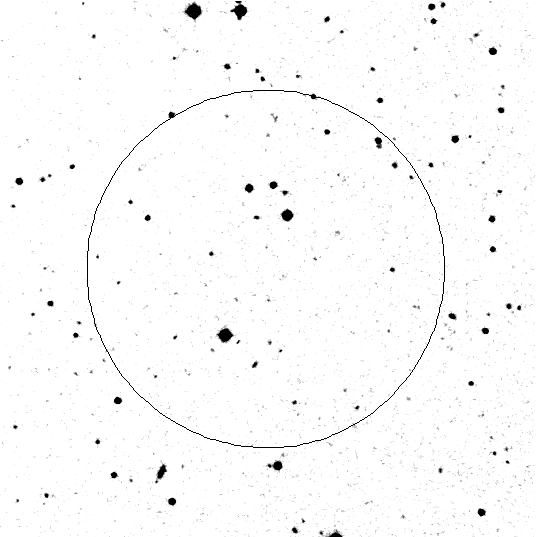

red DSS finding chart ps-file

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:30:11 UT
NOTICE_TYPE:     Swift-XRT Nack-Position
TRIGGER_NUM:     1009679,   Seg_Num: 0
POINT_RA:        223.132d {+14h 52m 32s} (J2000)
POINT_DEC:       +26.679d {+26d 40' 45"} (J2000)
IMG_START_DATE:  19181 TJD;   333 DOY;   20/11/28
IMG_START_TIME:  23404.86 SOD {06:30:04.86} UT,   126.5 [sec] since BAT Trigger Time
COUNTS:          2    Min_needed= 20
STD_DEV:         0.00   Max_StdDev_for_Good=28.44 [arcsec]
PH2_ITER:        1    Max_iter_allowed= 4
ERROR_CODE:      1
COMMENTS:        SWIFT-XRT Nack Position.
COMMENTS:        No source found in the image.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:32:02 UT

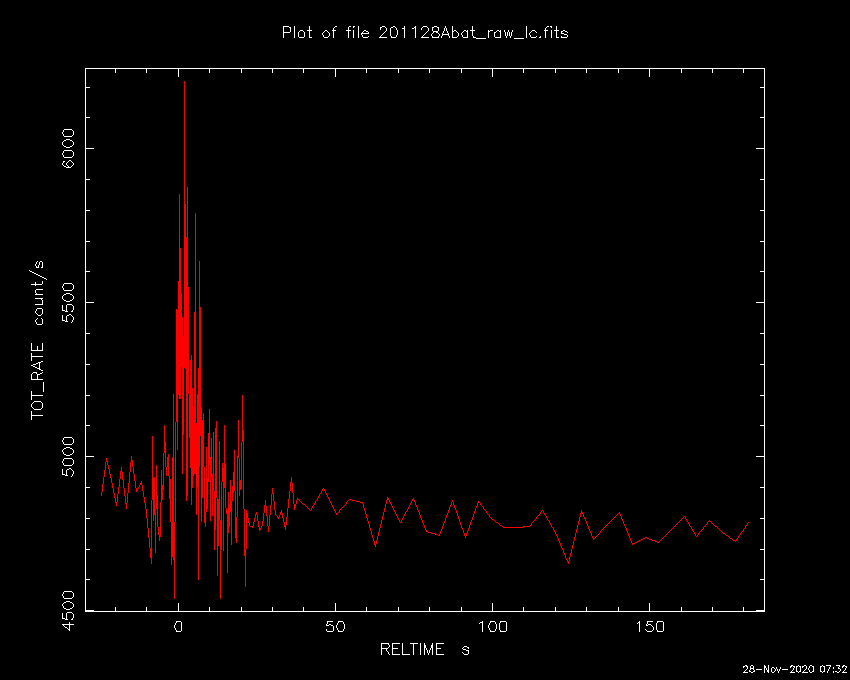

NOTICE_TYPE:     Swift-BAT GRB Lightcurve
TRIGGER_NUM:     1009679,   Seg_Num: 0
GRB_RA:          223.136d {+14h 52m 33s} (J2000),
                 223.363d {+14h 53m 27s} (current),
                 222.591d {+14h 50m 22s} (1950)
GRB_DEC:         +26.678d {+26d 40' 41"} (J2000),
                 +26.593d {+26d 35' 36"} (current),
                 +26.882d {+26d 52' 55"} (1950)
GRB_DATE:        19181 TJD;   333 DOY;   20/11/28
GRB_TIME:        23278.32 SOD {06:27:58.32} UT
TRIGGER_INDEX:   476
GRB_PHI:         -171.73 [deg]
GRB_THETA:        24.85 [deg]
DELTA_TIME:      -37.00 [sec]
TRIGGER_DUR:     5.504 [sec]
SOLN_STATUS:     0x3
RATE_SIGNIF:     12.36 [sigma]
IMAGE_SIGNIF:    7.45 [sigma]
LC_URL:          sw01009679000msb.lc
SUN_POSTN:       244.63d {+16h 18m 32s}  -21.39d {-21d 23' 21"}
SUN_DIST:         52.22 [deg]   Sun_angle= 1.4 [hr] (West of Sun)
MOON_POSTN:       41.84d {+02h 47m 23s}  +12.78d {+12d 46' 37"}
MOON_DIST:       140.60 [deg]
MOON_ILLUM:      96 [%]
GAL_COORDS:       38.98, 63.06 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      210.36, 40.92 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Lightcurve.
COMMENTS:
COMMENTS:        The next comments were copied from the BAT_POS Notice:
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 94.20,-17.73 [deg].

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:34:55 UT

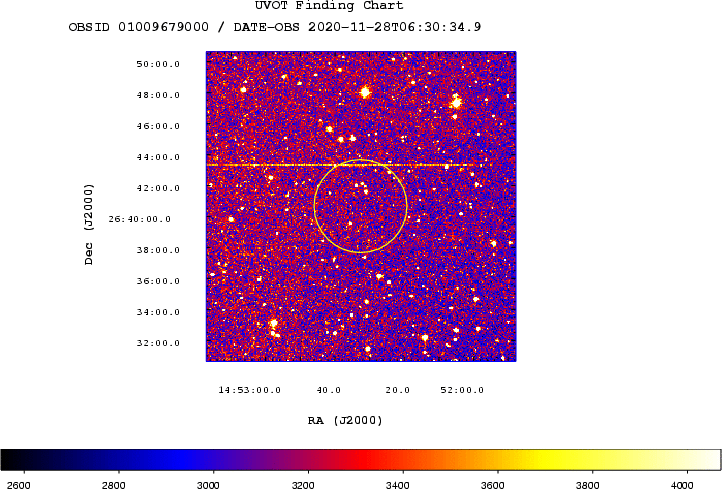

NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     1009679,   Seg_Num: 0
POINT_RA:        223.132d {+14h 52m 32s} (J2000)
POINT_DEC:       +26.679d {+26d 40' 44"} (J2000)
POINT_ROLL:      154.505d
IMG_START_DATE:  19181 TJD;   333 DOY;   20/11/28
IMG_START_TIME:  23408.80 SOD {06:30:08.80} UT,   130.5 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        6.678
N_STARS:         12
X_OFFSET:        475 [pixels]
Y_OFFSET:        517 [pixels]
X_MAX:           1434 [pixels]
Y_MAX:           1476 [pixels]
DET_THRESH:      22
PHOTO_THRESH:    13
SL_URL:          sw01009679000msufc0130.fits
SUN_POSTN:       244.64d {+16h 18m 32s}  -21.39d {-21d 23' 23"}
SUN_DIST:         52.22 [deg]   Sun_angle= 1.4 [hr] (West of Sun)
MOON_POSTN:       41.87d {+02h 47m 28s}  +12.79d {+12d 47' 08"}
MOON_DIST:       140.59 [deg]
MOON_ILLUM:      96 [%]
GAL_COORDS:       38.98, 63.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      210.35, 40.92 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:34:01 UT
NOTICE_TYPE:     Swift-XRT Position
TRIGGER_NUM:     1009679,   Seg_Num: 0
GRB_RA:          223.1079d {+14h 52m 25.89s} (J2000),
                 223.3358d {+14h 53m 20.59s} (current),
                 222.5629d {+14h 50m 15.10s} (1950)
GRB_DEC:         +26.6858d {+26d 41' 08.8"} (J2000),
                 +26.6010d {+26d 36' 03.5"} (current),
                 +26.8900d {+26d 53' 23.8"} (1950)
GRB_ERROR:       4.2 [arcsec radius, statistical plus systematic, 90% containment]
GRB_INTEN:       1.00e-10 [erg/cm2/sec]
GRB_SIGNIF:      10.00 [sigma]
IMG_START_DATE:  19181 TJD;   333 DOY;   20/11/28
IMG_START_TIME:  23412.00 SOD {06:30:12.00} UT,   133.7 [sec] since BAT Trigger Time
TAM[0-3]:        100.00 100.00 100.00 100.00
AMPLIFIER:       1
WAVEFORM:        31
SUN_POSTN:       244.63d {+16h 18m 32s}  -21.39d {-21d 23' 22"}
SUN_DIST:         52.24 [deg]   Sun_angle= 1.4 [hr] (West of Sun)
MOON_POSTN:       41.86d {+02h 47m 26s}  +12.78d {+12d 46' 58"}
MOON_DIST:       140.59 [deg]
MOON_ILLUM:      96 [%]
GAL_COORDS:       38.99, 63.09 [deg] galactic lon,lat of the burst
ECL_COORDS:      210.33, 40.91 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Coordinates.
COMMENTS:        This Notice was ground-generated -- not flight-generated.
COMMENTS:        TAM values, flux and significance fields are not valid.
COMMENTS:        This position was automatically generated on the ground using
COMMENTS:        Photon Counting data telemetered via TDRSS (SPER data).
COMMENTS:        See http://www.swift.ac.uk/sper/docs.php for details.
COMMENTS:        The probability that this is a serendipitous source in the
COMMENTS:        SPER window is 0.58% < P(seren) < 1.1%.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:35:09 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     1009679,   Seg_Num: 0
POINT_RA:        223.132d {+14h 52m 32s} (J2000)
POINT_DEC:       +26.679d {+26d 40' 44"} (J2000)
POINT_ROLL:      154.505d
IMG_START_DATE:  19181 TJD;   333 DOY;   20/11/28
IMG_START_TIME:  23408.80 SOD {06:30:08.80} UT,   130.5 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        6.678
N_STARS:         12
X_OFFSET:        475 [pixels]
Y_OFFSET:        517 [pixels]
X_MAX:           1434 [pixels]
Y_MAX:           1476 [pixels]
DET_THRESH:      22
PHOTO_THRESH:    13
SL_URL:          sw01009679000msufc0130.fits
SUN_POSTN:       244.64d {+16h 18m 33s}  -21.39d {-21d 23' 23"}
SUN_DIST:         52.22 [deg]   Sun_angle= 1.4 [hr] (West of Sun)
MOON_POSTN:       41.87d {+02h 47m 28s}  +12.79d {+12d 47' 11"}
MOON_DIST:       140.59 [deg]
MOON_ILLUM:      96 [%]
GAL_COORDS:       38.98, 63.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      210.35, 40.92 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:37:13 UT

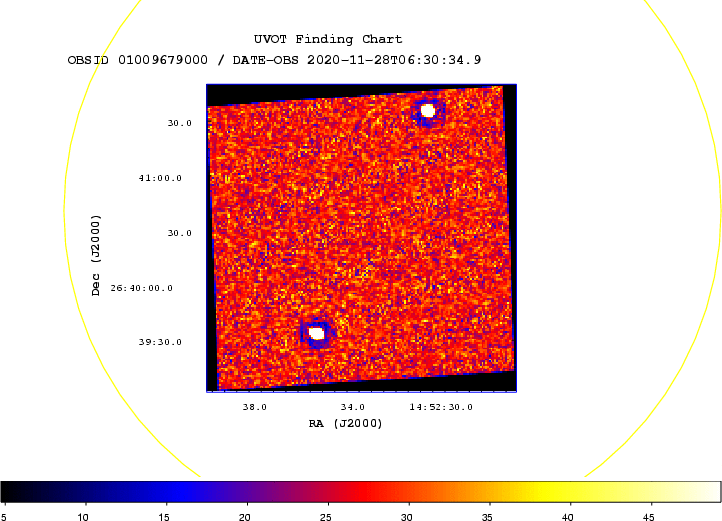

NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     1009679,   Seg_Num: 0
POINT_RA:        223.132d {+14h 52m 32s} (J2000)
POINT_DEC:       +26.679d {+26d 40' 44"} (J2000)
ROLL:            154.505d
IMG_START_DATE:  19181 TJD;   333 DOY;   20/11/28
IMG_START_TIME:  23408.80 SOD {06:30:08.80} UT,   130.5 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     628237834
X_OFFSET:        794 [pixels]
Y_OFFSET:        836 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       954
Y_GRB_POS:       996
BINNING_INDEX:   1
IM_URL:          sw01009679000msuni0157.fits
SUN_POSTN:       244.64d {+16h 18m 33s}  -21.39d {-21d 23' 24"}
SUN_DIST:         52.22 [deg]   Sun_angle= 1.4 [hr] (West of Sun)
MOON_POSTN:       41.88d {+02h 47m 32s}  +12.79d {+12d 47' 33"}
MOON_DIST:       140.59 [deg]
MOON_ILLUM:      96 [%]
GAL_COORDS:       38.98, 63.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      210.35, 40.92 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:43:06 UT

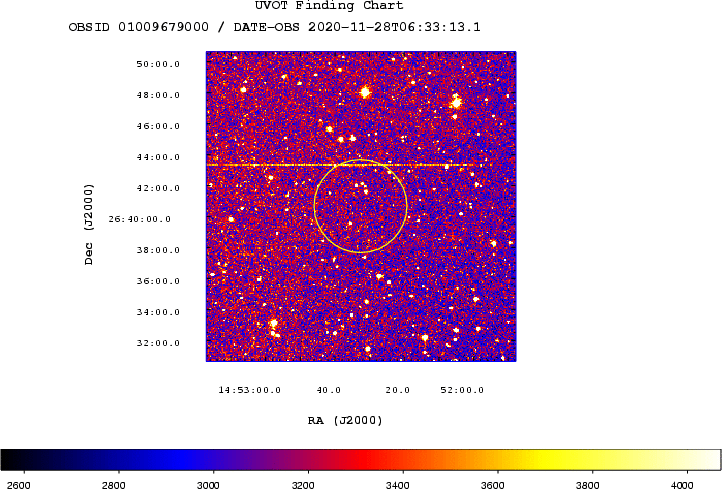

NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     1009679,   Seg_Num: 0
POINT_RA:        223.130d {+14h 52m 31s} (J2000)
POINT_DEC:       +26.678d {+26d 40' 41"} (J2000)
POINT_ROLL:      154.501d
IMG_START_DATE:  19181 TJD;   333 DOY;   20/11/28
IMG_START_TIME:  23567.00 SOD {06:32:47.00} UT,   288.7 [sec] since BAT Trigger Time
FILTER:          7, U
BKG_MEAN:        2.705
N_STARS:         25
X_OFFSET:        235 [pixels]
Y_OFFSET:        277 [pixels]
X_MAX:           1674 [pixels]
Y_MAX:           1716 [pixels]
DET_THRESH:      14
PHOTO_THRESH:    7
SL_URL:          sw01009679000msufc0288.fits
SUN_POSTN:       244.64d {+16h 18m 34s}  -21.39d {-21d 23' 26"}
SUN_DIST:         52.23 [deg]   Sun_angle= 1.4 [hr] (West of Sun)
MOON_POSTN:       41.93d {+02h 47m 44s}  +12.81d {+12d 48' 37"}
MOON_DIST:       140.57 [deg]
MOON_ILLUM:      96 [%]
GAL_COORDS:       38.98, 63.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      210.35, 40.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:43:26 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     1009679,   Seg_Num: 0
POINT_RA:        223.130d {+14h 52m 31s} (J2000)
POINT_DEC:       +26.678d {+26d 40' 41"} (J2000)
POINT_ROLL:      154.501d
IMG_START_DATE:  19181 TJD;   333 DOY;   20/11/28
IMG_START_TIME:  23567.00 SOD {06:32:47.00} UT,   288.7 [sec] since BAT Trigger Time
FILTER:          7, U
BKG_MEAN:        2.705
N_STARS:         25
X_OFFSET:        235 [pixels]
Y_OFFSET:        277 [pixels]
X_MAX:           1674 [pixels]
Y_MAX:           1716 [pixels]
DET_THRESH:      14
PHOTO_THRESH:    7
SL_URL:          sw01009679000msufc0288.fits
SUN_POSTN:       244.64d {+16h 18m 34s}  -21.39d {-21d 23' 26"}
SUN_DIST:         52.23 [deg]   Sun_angle= 1.4 [hr] (West of Sun)
MOON_POSTN:       41.93d {+02h 47m 44s}  +12.81d {+12d 48' 41"}
MOON_DIST:       140.57 [deg]
MOON_ILLUM:      96 [%]
GAL_COORDS:       38.98, 63.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      210.35, 40.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:43:36 UT
NOTICE_TYPE:     Swift-XRT Position UPDATE
TRIGGER_NUM:     1009679,   Seg_Num: 0
GRB_RA:          223.1080d {+14h 52m 25.92s} (J2000),
                 223.3359d {+14h 53m 20.61s} (current),
                 222.5630d {+14h 50m 15.12s} (1950)
GRB_DEC:         +26.6847d {+26d 41' 04.9"} (J2000),
                 +26.5999d {+26d 35' 59.5"} (current),
                 +26.8889d {+26d 53' 19.8"} (1950)
GRB_ERROR:       2.7 [arcsec radius, statistical plus systematic, 90% containment]
GRB_INTEN:       1.00e-10 [erg/cm2/sec]
GRB_SIGNIF:      10.00 [sigma]
IMG_START_DATE:  19181 TJD;   333 DOY;   20/11/28
IMG_START_TIME:  23412.00 SOD {06:30:12.00} UT,   133.7 [sec] since BAT Trigger Time
TAM[0-3]:        100.00 100.00 100.00 100.00
AMPLIFIER:       1
WAVEFORM:        31
SUN_POSTN:       244.64d {+16h 18m 34s}  -21.39d {-21d 23' 26"}
SUN_DIST:         52.24 [deg]   Sun_angle= 1.4 [hr] (West of Sun)
MOON_POSTN:       41.94d {+02h 47m 44s}  +12.81d {+12d 48' 43"}
MOON_DIST:       140.56 [deg]
MOON_ILLUM:      96 [%]
GAL_COORDS:       38.99, 63.09 [deg] galactic lon,lat of the burst
ECL_COORDS:      210.33, 40.91 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Coordinates.
COMMENTS:        This Notice was ground-generated -- not flight-generated.
COMMENTS:        This is an Update Notice -- the RA,Dec values herein supersede the previous XRT_POS Notice.
COMMENTS:        TAM values, flux and significance fields are not valid.
COMMENTS:        This position was automatically generated on the ground using
COMMENTS:        Photon Counting data telemetered via TDRSS (SPER data).
COMMENTS:        See http://www.swift.ac.uk/sper/docs.php for details.
COMMENTS:        This position was enhanced using UVOT field astrometry.
COMMENTS:        The probability that this is a serendipitous source in the
COMMENTS:        SPER window is 0.58% < P(seren) < 1.1%.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:44:28 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     1009679,   Seg_Num: 0
POINT_RA:        223.130d {+14h 52m 31s} (J2000)
POINT_DEC:       +26.678d {+26d 40' 41"} (J2000)
ROLL:            154.501d
IMG_START_DATE:  19181 TJD;   333 DOY;   20/11/28
IMG_START_TIME:  23567.00 SOD {06:32:47.00} UT,   288.7 [sec] since BAT Trigger Time
FILTER:          7, U
EXPOSURE_ID:     628237993
X_OFFSET:        794 [pixels]
Y_OFFSET:        836 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       954
Y_GRB_POS:       996
BINNING_INDEX:   1
IM_URL:          sw01009679000msuni0315.fits
SUN_POSTN:       244.64d {+16h 18m 34s}  -21.39d {-21d 23' 27"}
SUN_DIST:         52.23 [deg]   Sun_angle= 1.4 [hr] (West of Sun)
MOON_POSTN:       41.94d {+02h 47m 46s}  +12.81d {+12d 48' 52"}
MOON_DIST:       140.57 [deg]
MOON_ILLUM:      96 [%]
GAL_COORDS:       38.98, 63.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      210.35, 40.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN Circular #28958
A. Y. Lien (GSFC/UMBC), E. Ambrosi (INAF-IASFPA), A. D'Ai (INAF-IASFPA), V. D'Elia (SSDC), J.D. Gropp (PSU), J. A. Kennea (PSU), N. J. Klingler (PSU), S. Laha (GSFC/UMBC/CRESST), K. L. Page (U Leicester), D. M. Palmer (LANL), M. H. Siegel (PSU) and M. Stamatikos (OSU/NASA/GSFC) report on behalf of the Neil Gehrels Swift Observatory Team:
At 06:27:58 UT, the Swift Burst Alert Telescope (BAT) triggered and located GRB 201128A (trigger=1009679). Swift slewed immediately to the burst. The BAT on-board calculated location is RA, Dec 223.136, +26.678 which is
```
   RA(J2000) = 14h 52m 33s
   Dec(J2000) = +26d 40' 41"
```
with an uncertainty of 3 arcmin (radius, 90% containment, including systematic uncertainty). The BAT light curve showed a complex structure with a duration of about 10 sec. The peak count rate was ~600 counts/sec (15-350 keV), at ~2 sec after the trigger.
The XRT began observing the field at 06:30:04.8 UT, 126.6 seconds after the BAT trigger. Using promptly downlinked data we find an uncatalogued X-ray source with an enhanced position: RA, Dec 223.1083, 26.6844 which is equivalent to:
```
   RA(J2000)  = 14h 52m 26.00s
   Dec(J2000) = +26d 41' 03.8"
```
with an uncertainty of 2.6 arcseconds (radius, 90% containment). This location is 92 arcseconds from the BAT onboard position, within the BAT error circle. This position may be improved as more data are received; the latest position is available at https://www.swift.ac.uk/sper. We cannot determine whether the source is fading at the present time.
A power-law fit to a spectrum formed from promptly downlinked event data gives a column density consistent with the Galactic value of 3.53 x 10^20 cm^-2 (Willingale et al. 2013).
UVOT took a finding chart exposure of 150 seconds with the White filter starting 130 seconds after the BAT trigger. No credible afterglow candidate has been found in the initial data products. The 2.7'x2.7' sub-image covers none of the XRT error circle. The 8'x8' region for the list of sources generated on-board covers 100% of the XRT error circle. The list of sources is typically complete to about 18 mag. No correction has been made for the expected extinction corresponding to E(B-V) of 0.03.
Burst Advocate for this burst is A. Y. Lien (amy.y.lien AT nasa.gov). Please contact the BA by email if you require additional information regarding Swift followup of this burst. In extremely urgent cases, after trying the Burst Advocate, you can contact the Swift PI by phone (see Swift TOO web site for information: http://www.swift.psu.edu/)

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:44:43 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     1009679,   Seg_Num: 0
POINT_RA:        223.130d {+14h 52m 31s} (J2000)
POINT_DEC:       +26.678d {+26d 40' 41"} (J2000)
ROLL:            154.501d
IMG_START_DATE:  19181 TJD;   333 DOY;   20/11/28
IMG_START_TIME:  23567.00 SOD {06:32:47.00} UT,   288.7 [sec] since BAT Trigger Time
FILTER:          7, U
EXPOSURE_ID:     628237993
X_OFFSET:        794 [pixels]
Y_OFFSET:        836 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       954
Y_GRB_POS:       996
BINNING_INDEX:   1
IM_URL:          sw01009679000msuni0315.fits
SUN_POSTN:       244.64d {+16h 18m 34s}  -21.39d {-21d 23' 27"}
SUN_DIST:         52.23 [deg]   Sun_angle= 1.4 [hr] (West of Sun)
MOON_POSTN:       41.94d {+02h 47m 47s}  +12.82d {+12d 48' 55"}
MOON_DIST:       140.57 [deg]
MOON_ILLUM:      96 [%]
GAL_COORDS:       38.98, 63.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      210.35, 40.91 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Sat 28 Nov 20 06:37:23 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     1009679,   Seg_Num: 0
POINT_RA:        223.132d {+14h 52m 32s} (J2000)
POINT_DEC:       +26.679d {+26d 40' 44"} (J2000)
ROLL:            154.505d
IMG_START_DATE:  19181 TJD;   333 DOY;   20/11/28
IMG_START_TIME:  23408.80 SOD {06:30:08.80} UT,   130.5 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     628237834
X_OFFSET:        794 [pixels]
Y_OFFSET:        836 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       954
Y_GRB_POS:       996
BINNING_INDEX:   1
IM_URL:          sw01009679000msuni0157.fits
SUN_POSTN:       244.64d {+16h 18m 33s}  -21.39d {-21d 23' 24"}
SUN_DIST:         52.22 [deg]   Sun_angle= 1.4 [hr] (West of Sun)
MOON_POSTN:       41.89d {+02h 47m 33s}  +12.79d {+12d 47' 35"}
MOON_DIST:       140.59 [deg]
MOON_ILLUM:      96 [%]
GAL_COORDS:       38.98, 63.07 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      210.35, 40.92 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN Circular #28959
Alan M. Watson (UNAM), Nat Butler (ASU), Rosa L. Becerra (UNAM), Simone Dichiara (GSFC/UMD), Alexander Kutyrev (GSFC/UMD), William H. Lee (UNAM), Oc�lotl Lopez (UNAM), Diego Gonzalez (UNAM), Margarita Pereyra (UNAM), Srihari Ravi (ASU), and Eleonora Troja (GSFC/UMD) report:
We observed the field of GRB 201128A (Lien et al., GCN Circ. 28958) with with the DDOTI/OAN wide-field imager at the Observatorio Astron�mico Nacional on Sierra San Pedro Martir (http://ddoti.astroscu.unam.mx) on the night of 2020-11-28 UTC.
We observed from 2020-11-30 12:45 to 13:07 (from 6.3 to 6.7 hours after the trigger) obtaining a total of 960 seconds exposure in the w filter. We calibrate our images against the APASS catalog. Our 5-sigma limiting magnitude is w = 20.4.
Comparing our observations to the USNO-B1 and PanSTARRS PS1 DR2 catalogs, we detect no uncatalogued sources in the Swift/XRT error region (Lien et al., GCN Circ. 28958 to our 5-sigma limit.
We thank the staff of the Observatorio Astronomico Nacional in San Pedro Martir.
GCN Circular #28960
P.A. Evans, M.R. Goad, J.P. Osborne and A.P. Beardmore (U. Leicester) report on behalf of the Swift-XRT team.
Using 1017 s of XRT Photon Counting mode data and 2 UVOT images for GRB 201128A, we find an astrometrically corrected X-ray position (using the XRT-UVOT alignment and matching UVOT field sources to the USNO-B1 catalogue): RA, Dec = 223.10767, +26.68502 which is equivalent to:
```
RA (J2000): 14h 52m 25.84s
Dec (J2000): +26d 41' 06.1"
```
with an uncertainty of 2.0 arcsec (radius, 90% confidence).
This position may be improved as more data are received. The latest position can be viewed at http://www.swift.ac.uk/xrt_positions. Position enhancement is described by Goad et al. (2007, A&A, 476, 1401) and Evans et al. (2009, MNRAS, 397, 1177).
This circular was automatically generated, and is an official product of the Swift-XRT team.
GCN Circular #28962
A.P. Beardmore (U. Leicester), M. Capalbi (INAF-IASFPA), M. Perri (ASDC), V. D'Elia (ASDC), J.A. Kennea (PSU), A. Tohuvavohu (U. Toronto), B. Sbarufatti (PSU), P.A. Evans (U. Leicester), J.P. Osborne (U. Leicester) and A.Y. Lien report on behalf of the Swift-XRT team:
We have analysed 9.4 ks of XRT data for GRB 201128A (Lien et al. GCN Circ. 28958), from 133 s to 46.1 ks after the BAT trigger. The data are entirely in Photon Counting (PC) mode. The enhanced XRT position for this burst was given by Evans et al. (GCN Circ. 28960).
The light curve can be modelled with a power-law decay with a decay index of alpha=0.58 (+/-0.04).
A spectrum formed from the PC mode data can be fitted with an absorbed power-law with a photon spectral index of 2.09 (+0.23, -0.21). The best-fitting absorption column is 1.6 (+0.7, -0.6) x 10^21 cm^-2, in excess of the Galactic value of 3.5 x 10^20 cm^-2 (Willingale et al. 2013). The counts to observed (unabsorbed) 0.3-10 keV flux conversion factor deduced from this spectrum is 3.3 x 10^-11 (4.0 x 10^-11) erg cm^-2 count^-1.
A summary of the PC-mode spectrum is thus:
```
Total column:	     1.6 (+0.7, -0.6) x 10^21 cm^-2
Galactic foreground: 3.5 x 10^20 cm^-2
Excess significance: 3.4 sigma
Photon index:	     2.09 (+0.23, -0.21)
```
If the light curve continues to decay with a power-law decay index of 0.58, the count rate at T+24 hours will be 0.014 count s^-1, corresponding to an observed (unabsorbed) 0.3-10 keV flux of 4.6 x 10^-13 (5.5 x 10^-13) erg cm^-2 s^-1.
The results of the XRT-team automatic analysis are available at http://www.swift.ac.uk/xrt_products/01009679.
This circular is an official product of the Swift-XRT team.
GCN Circular #28963
D. M. Palmer (LANL), S. D. Barthelmy (GSFC), J. R. Cummings (CPI), H. A. Krimm (NSF), S. Laha (GSFC/UMBC), A. Y. Lien (GSFC/UMBC), C. B. Markwardt (GSFC), T. Sakamoto (AGU), M. Stamatikos (OSU), T. N. Ukwatta (LANL) (i.e. the Swift-BAT team):
Using the data set from T-239 to T+963 sec from the recent telemetry downlink, we report further analysis of BAT GRB 201128A (trigger #1009679) (Lien et al., GCN Circ. 28958). The BAT ground-calculated position is RA, Dec = 223.091, 26.716 deg which is
```
   RA(J2000)  =  14h 52m 21.9s
   Dec(J2000) = +26d 42' 58.6"
```
with an uncertainty of 2.4 arcmin, (radius, sys+stat, 90% containment). The partial coding was 92%.
The BAT light curve showed a complex structure with a duration of about 30 sec. T90 (15-350 keV) is 5.41 +- 3.22 sec (estimated error including systematics).
The time-averaged spectrum from T-0.44 to T+8.74 sec is best fit by a simple power-law model. The power law index of the time-averaged spectrum is 1.37 +- 0.37. The fluence in the 15-150 keV band is 2.0 +- 0.4 x 10^-7 erg/cm2. The 1-sec peak photon flux measured from T+4.21 sec in the 15-150 keV band is 0.4 +- 0.2 ph/cm2/sec. All the quoted errors are at the 90% confidence level.
The results of the batgrbproduct analysis are available at http://gcn.gsfc.nasa.gov/notices_s/1009679/BA/
GCN Circular #28970
GRB 201128A: Swift/UVOT Upper Limits
A. Belles (PSU) and A. Y. Lien (GSFC/UMBC) report on behalf of the Swift/UVOT team:
The Swift/UVOT began settled observations of the field of GRB 201128A 130 s after the BAT trigger (Lien et al., GCN Circ. 28958). No optical afterglow consistent with the XRT position (Lien et al. GCN Circ. 28958) is detected in the initial UVOT exposures. Preliminary 3-sigma upper limits using the UVOT photometric system (Breeveld et al. 2011, AIP Conf. Proc. 1358, 373) for the first finding chart (FC) exposures and subsequent exposures are:
```
Filter         T_start(s)   T_stop(s)      Exp(s)         Mag

white_FC           130          280          147         >20.0
u_FC               289          538          246         >19.3
white              130          761          186         >20.0
v                  619          639           19         >17.4
b                  544          737           39         >18.6
u                  289          538          246         >19.3
w1                 668          688           19         >18.3
```
The magnitudes in the table are not corrected for the Galactic extinction due to the reddening of E(B-V) = 0.03 in the direction of the burst (Schlegel et al. 1998).

Back to JG's homepage

Jochen Greiner, last update: 01-Dec-2020 [Disclaimer]
