Gamma-ray Burst 211227A

(All information courtesy of the instrument teams.)

Previous IAU Circulars

none

Results of Observations

GCN/BACODINE POSITION NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:32:22 UT
NOTICE_TYPE:     Swift-BAT GRB Position
TRIGGER_NUM:     1091101,   Seg_Num: 0
GRB_RA:          132.126d {+08h 48m 30s} (J2000),
                 132.403d {+08h 49m 37s} (current),
                 131.495d {+08h 45m 59s} (1950)
GRB_DEC:          -2.702d {-02d 42' 05"} (J2000),
                  -2.784d {-02d 47' 02"} (current),
                  -2.516d {-02d 30' 57"} (1950)
GRB_ERROR:       3.00 [arcmin radius, statistical only]
GRB_INTEN:       998 [cnts]    Image_Peak=93 [image_cnts]
TRIGGER_DUR:     0.256 [sec]
TRIGGER_INDEX:   36     E_range: 25-100 keV
BKG_INTEN:       18918 [cnts]
BKG_TIME:        84715.66 SOD {23:31:55.66} UT
BKG_DUR:         8 [sec]
GRB_DATE:        19575 TJD;   361 DOY;   21/12/27
GRB_TIME:        84726.86 SOD {23:32:06.86} UT
GRB_PHI:          44.11 [deg]
GRB_THETA:        32.08 [deg]
SOLN_STATUS:     0x3
RATE_SIGNIF:     18.00 [sigma]
IMAGE_SIGNIF:    8.71 [sigma]
MERIT_PARAMS:     +1  +0  +0  -2  +2  -1  +0  +0 +73  +0
SUN_POSTN:       277.02d {+18h 28m 04s}  -23.28d {-23d 16' 44"}
SUN_DIST:        136.79 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.47d {+13h 09m 52s}   -3.63d {-03d 37' 43"}
MOON_DIST:        64.95 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.82, 24.40 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      135.39,-19.75 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Coordinates.
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 55.96,19.80 [deg].

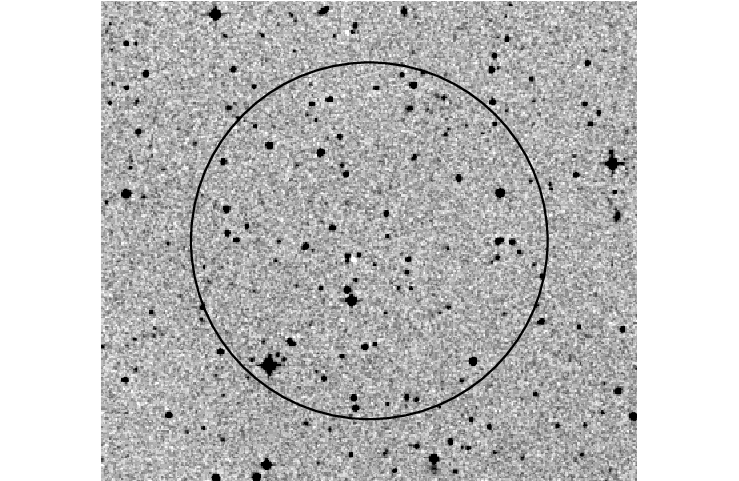

red DSS finding chart ps-file

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:33:44 UT
NOTICE_TYPE:     Swift-XRT Position
TRIGGER_NUM:     1091101,   Seg_Num: 0
GRB_RA:          132.1481d {+08h 48m 35.54s} (J2000),
                 132.4255d {+08h 49m 42.10s} (current),
                 131.5172d {+08h 46m 04.11s} (1950)
GRB_DEC:          -2.7345d {-02d 44' 04.2"} (J2000),
                  -2.8169d {-02d 49' 00.7"} (current),
                  -2.5488d {-02d 32' 55.7"} (1950)
GRB_ERROR:       4.8 [arcsec radius, statistical plus systematic, 90% containment]
GRB_INTEN:       6.84e-09 [erg/cm2/sec]
GRB_SIGNIF:      12.84 [sigma]
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  84800.36 SOD {23:33:20.36} UT,   73.5 [sec] since BAT Trigger Time
TAM[0-3]:        327.62 237.19 261.56 243.62
AMPLIFIER:       2
WAVEFORM:        134
SUN_POSTN:       277.02d {+18h 28m 04s}  -23.28d {-23d 16' 43"}
SUN_DIST:        136.75 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.48d {+13h 09m 55s}   -3.63d {-03d 38' 04"}
MOON_DIST:        64.94 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.87, 24.40 [deg] galactic lon,lat of the burst
ECL_COORDS:      135.42,-19.78 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Coordinates.
COMMENTS:        The XRT position is 2.38 arcmin from the BAT position.
COMMENTS:        The object found at this position is either a very bright burst or a cosmic ray hit.
COMMENTS:        Examine the XRT Image to differentiate (CRs are much more compact); see examples at:
COMMENTS:        http://www.swift.psu.edu/xrt/XRT_Postage_Stamp_Image_Photo_Gallery.htm .

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:33:54 UT
NOTICE_TYPE:     Swift-XRT Image
TRIGGER_NUM:     1091101,   Seg_Num: 0
GRB_RA:          132.1481d {+08h 48m 35.5s} (J2000),
                 132.4255d {+08h 49m 42.1s} (current),
                 131.5172d {+08h 46m 04.1s} (1950)
GRB_DEC:          -2.7345d {-02d 44' 04.2"} (J2000),
                  -2.8169d {-02d 49' 00.7"} (current),
                  -2.5488d {-02d 32' 55.7"} (1950)
GRB_ERROR:       4.7 [arcsec, radius, statistical plus systematic]
GRB_INTEN:       165 [cnts]
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  84800.36 SOD {23:33:20.36} UT,   73.5 [sec] since BAT Trigger Time
CENTROID_X:      277.14,  raw= 277  [pixels]
CENTROID_Y:      265.71,  raw= 266  [pixels]
ROLL:            129.18 [deg]
GAIN:            2
MODE:            3, Long Image mode
WAVEFORM:        134
EXPO_TIME:       2.50 [sec]
GRB_POS_XRT_Y:   -76.33
GRB_POS_XRT_Z:   -71.30
IMAGE_URL:       sw01091101000msxps_rw.img
SUN_POSTN:       277.02d {+18h 28m 04s}  -23.28d {-23d 16' 43"}
SUN_DIST:        136.75 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.48d {+13h 09m 55s}   -3.64d {-03d 38' 07"}
MOON_DIST:        64.94 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.87, 24.40 [deg] galactic lon,lat of the burst
ECL_COORDS:      135.42,-19.78 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Image.
COMMENTS:        The object found at this position is either a very bright burst or a cosmic ray hit.
COMMENTS:        Examine the XRT Image to differentiate (CRs are much more compact); see examples at:
COMMENTS:        http://www.swift.psu.edu/xrt/XRT_Postage_Stamp_Image_Photo_Gallery.htm .

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:33:56 UT
NOTICE_TYPE:     Swift-XRT Processed Image
TRIGGER_NUM:     1091101,   Seg_Num: 0
GRB_RA:          132.1481d {+08h 48m 35.5s} (J2000),
                 132.4255d {+08h 49m 42.1s} (current),
                 131.5172d {+08h 46m 04.1s} (1950)
GRB_DEC:          -2.7345d {-02d 44' 04.2"} (J2000),
                  -2.8169d {-02d 49' 00.7"} (current),
                  -2.5488d {-02d 32' 55.7"} (1950)
GRB_ERROR:       4.7 [arcsec, radius, statistical plus systematic]
GRB_INTEN:       165 [cnts]
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  84800.36 SOD {23:33:20.36} UT,   73.5 [sec] since BAT Trigger Time
CENTROID_X:      277.14,  raw= 277  [pixels]
CENTROID_Y:      265.71,  raw= 266  [pixels]
ROLL:            129.18 [deg]
GAIN:            2
MODE:            3, Long Image mode
WAVEFORM:        134
EXPO_TIME:       2.50 [sec]
GRB_POS_XRT_Y:   -76.33
GRB_POS_XRT_Z:   -71.30
IMAGE_URL:       sw01091101000msxps_rw.img
SUN_POSTN:       277.02d {+18h 28m 04s}  -23.28d {-23d 16' 43"}
SUN_DIST:        136.75 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.48d {+13h 09m 55s}   -3.64d {-03d 38' 07"}
MOON_DIST:        64.94 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.87, 24.40 [deg] galactic lon,lat of the burst
ECL_COORDS:      135.42,-19.78 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Processed Image.
COMMENTS:        The object found at this position is either a very bright burst or a cosmic ray hit.
COMMENTS:        Examine the XRT Image to differentiate (CRs are much more compact); see examples at:
COMMENTS:        http://www.swift.psu.edu/xrt/XRT_Postage_Stamp_Image_Photo_Gallery.htm .

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:35:41 UT

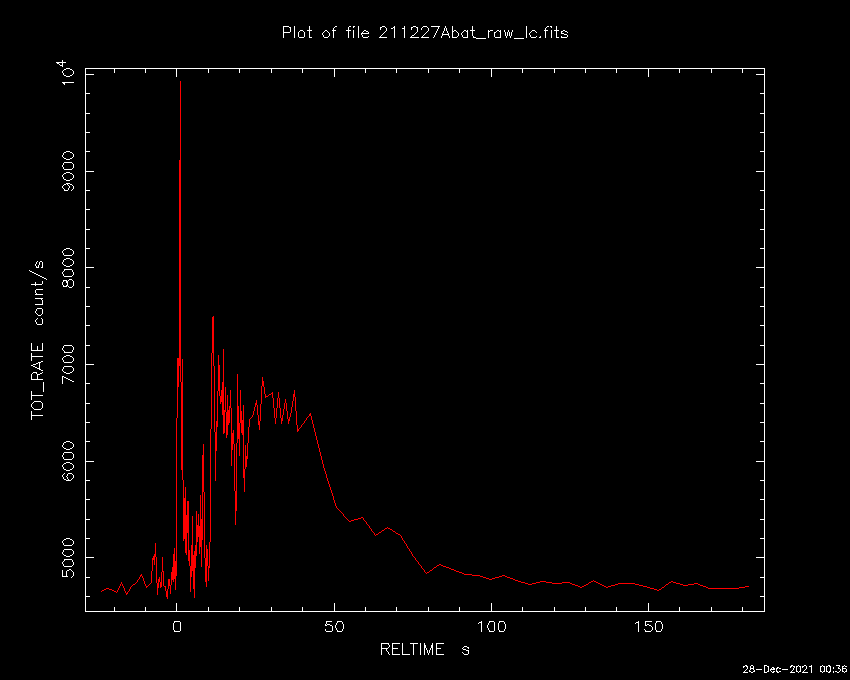

NOTICE_TYPE:     Swift-BAT GRB Lightcurve
TRIGGER_NUM:     1091101,   Seg_Num: 0
GRB_RA:          132.126d {+08h 48m 30s} (J2000),
                 132.403d {+08h 49m 37s} (current),
                 131.495d {+08h 45m 59s} (1950)
GRB_DEC:          -2.702d {-02d 42' 05"} (J2000),
                  -2.784d {-02d 47' 02"} (current),
                  -2.516d {-02d 30' 57"} (1950)
GRB_DATE:        19575 TJD;   361 DOY;   21/12/27
GRB_TIME:        84726.86 SOD {23:32:06.86} UT
TRIGGER_INDEX:   36
GRB_PHI:          44.11 [deg]
GRB_THETA:        32.08 [deg]
DELTA_TIME:      0.00 [sec]
TRIGGER_DUR:     0.256 [sec]
SOLN_STATUS:     0x3
RATE_SIGNIF:     18.00 [sigma]
IMAGE_SIGNIF:    8.71 [sigma]
LC_URL:          sw01091101000msb.lc
SUN_POSTN:       277.02d {+18h 28m 04s}  -23.28d {-23d 16' 43"}
SUN_DIST:        136.79 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.49d {+13h 09m 59s}   -3.64d {-03d 38' 34"}
MOON_DIST:        64.98 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.82, 24.40 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      135.39,-19.75 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Lightcurve.
COMMENTS:
COMMENTS:        The next comments were copied from the BAT_POS Notice:
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 55.96,19.80 [deg].

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:36:20 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     1091101,   Seg_Num: 0
POINT_RA:        132.146d {+08h 48m 35s} (J2000)
POINT_DEC:        -2.706d {-02d 42' 20"} (J2000)
POINT_ROLL:      129.181d
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  84808.73 SOD {23:33:28.73} UT,   81.9 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        1.968
N_STARS:         41
X_OFFSET:        400 [pixels]
Y_OFFSET:        696 [pixels]
X_MAX:           1359 [pixels]
Y_MAX:           1655 [pixels]
DET_THRESH:      12
PHOTO_THRESH:    6
SL_URL:          sw01091101000msufc0081.fits
SUN_POSTN:       277.02d {+18h 28m 04s}  -23.28d {-23d 16' 43"}
SUN_DIST:        136.77 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.50d {+13h 10m 00s}   -3.65d {-03d 38' 44"}
MOON_DIST:        64.97 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.84, 24.42 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      135.41,-19.75 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:37:42 UT

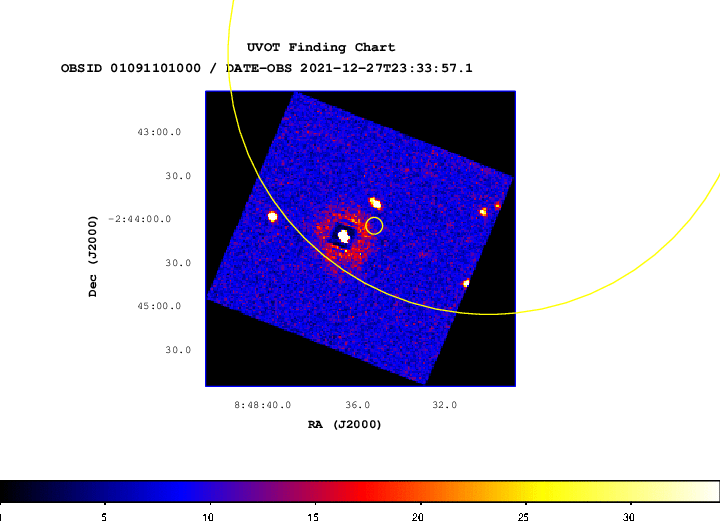

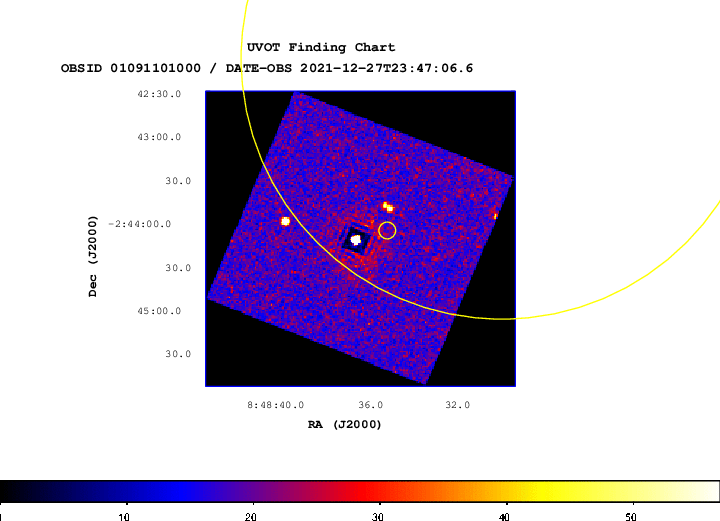

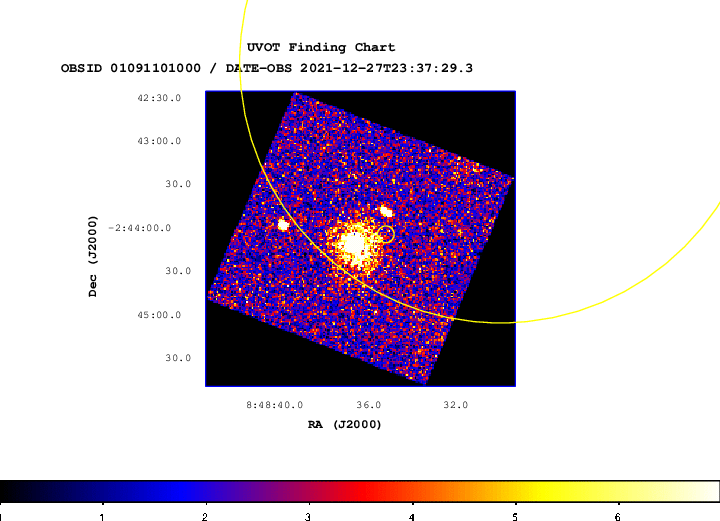

NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     1091101,   Seg_Num: 0
POINT_RA:        132.146d {+08h 48m 35s} (J2000)
POINT_DEC:        -2.706d {-02d 42' 20"} (J2000)
ROLL:            129.181d
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  84808.73 SOD {23:33:28.73} UT,   81.9 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     662340837
X_OFFSET:        995 [pixels]
Y_OFFSET:        956 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1155
Y_GRB_POS:       1116
BINNING_INDEX:   1
IM_URL:          sw01091101000msuni0110.fits
SUN_POSTN:       277.02d {+18h 28m 05s}  -23.28d {-23d 16' 43"}
SUN_DIST:        136.77 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.51d {+13h 10m 03s}   -3.65d {-03d 39' 05"}
MOON_DIST:        64.98 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.84, 24.42 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      135.41,-19.75 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:36:34 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     1091101,   Seg_Num: 0
POINT_RA:        132.146d {+08h 48m 35s} (J2000)
POINT_DEC:        -2.706d {-02d 42' 20"} (J2000)
POINT_ROLL:      129.181d
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  84808.73 SOD {23:33:28.73} UT,   81.9 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        1.968
N_STARS:         41
X_OFFSET:        400 [pixels]
Y_OFFSET:        696 [pixels]
X_MAX:           1359 [pixels]
Y_MAX:           1655 [pixels]
DET_THRESH:      12
PHOTO_THRESH:    6
SL_URL:          sw01091101000msufc0081.fits
SUN_POSTN:       277.02d {+18h 28m 04s}  -23.28d {-23d 16' 43"}
SUN_DIST:        136.77 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.50d {+13h 10m 01s}   -3.65d {-03d 38' 47"}
MOON_DIST:        64.97 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.84, 24.42 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      135.41,-19.75 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:37:50 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     1091101,   Seg_Num: 0
POINT_RA:        132.146d {+08h 48m 35s} (J2000)
POINT_DEC:        -2.706d {-02d 42' 20"} (J2000)
ROLL:            129.181d
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  84808.73 SOD {23:33:28.73} UT,   81.9 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     662340837
X_OFFSET:        995 [pixels]
Y_OFFSET:        956 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1155
Y_GRB_POS:       1116
BINNING_INDEX:   1
IM_URL:          sw01091101000msuni0110.fits
SUN_POSTN:       277.02d {+18h 28m 05s}  -23.28d {-23d 16' 43"}
SUN_DIST:        136.77 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.51d {+13h 10m 03s}   -3.65d {-03d 39' 07"}
MOON_DIST:        64.98 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.84, 24.42 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      135.41,-19.75 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN Circular #31315
V. Lipunov, V.Kornilov, E.Gorbovskoy, K.Zhirkov, N.Tyurina, P.Balanutsa, A.Kuznetsov, D. Vlasenko, G.Antipov, D.Zimnukhov, V.Senik, T.Pogrosheva, E.Minkina, A.Chasovnikov, V.Topolev, V.Grinshpun, D.Kuvshinov, D. Cheryasov (Lomonosov Moscow State University, SAI, Physics Department),
R. Podesta, C.Lopez, F. Podesta, C.Francile (Observatorio Astronomico Felix Aguilar OAFA),
R. Rebolo, M. Serra (The Instituto de Astrofisica de Canarias),
D. Buckley (South African Astronomical Observatory),
O.A. Gres, N.M. Budnev (Irkutsk State University, API),
B.L.Carrasco, J.R.Valdes,V.Chavushyan, C.J.Martinez, V.M.Patino Alvarez, M.L.H.Rodriguez (INAOE, OAGH)
A. Tlatov, D. Dormidontov (Kislovodsk Solar Station of the Pulkovo Observatory),
A. Gabovich, V.Yurkov (Blagoveschensk Educational State University)
MASTER-Kislovodsk robotic telescope (Global MASTER-Net: http://observ.pereplet.ru, Lipunov et al., 2010, Advances in Astronomy, vol. 2010, 30L) located in Russia (Lomonosov MSU, Kislovodsk Solar Station of Pulkovo observatory) was pointed to the Swift GRB211227.98 (trigger No 1091101,08h 48m 30.24s , -02d 42m 07.2s, R=0.05) errorbox 32 sec after notice time and 56 sec after trigger time at 2021-12-27 23:33:03 UT, with upper limit up to 14.4 mag. The observations began at zenith distance = 46 deg. The sun altitude is -54.9 deg.
The galactic latitude b = 25 deg., longitude l = 230 deg.
Real time updated cover map and OT discovered available here: https://master.sai.msu.ru/site/master2/observ.php?id=1829076
We obtain a following upper limits.
```
Tmid-T0  |          Site       |Filt.| Expt. | Limit| Comment
_________|_____________________|_____|_______|______|________

      62 |   MASTER-Kislovodsk |  P- |    10 | 14.4 |
```
The observation and reduction will continue. The message may be cited.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:43:55 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     1091101,   Seg_Num: 0
POINT_RA:        132.148d {+08h 48m 36s} (J2000)
POINT_DEC:        -2.705d {-02d 42' 17"} (J2000)
POINT_ROLL:      129.179d
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  85020.93 SOD {23:37:00.93} UT,   294.1 [sec] since BAT Trigger Time
FILTER:          7, U
BKG_MEAN:        0.589
N_STARS:         32
X_OFFSET:        675 [pixels]
Y_OFFSET:        636 [pixels]
X_MAX:           1634 [pixels]
Y_MAX:           1595 [pixels]
DET_THRESH:      7
PHOTO_THRESH:    3
SL_URL:          sw01091101000msufc0294.fits
SUN_POSTN:       277.02d {+18h 28m 06s}  -23.28d {-23d 16' 42"}
SUN_DIST:        136.77 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.57d {+13h 10m 16s}   -3.68d {-03d 40' 39"}
MOON_DIST:        65.03 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.84, 24.42 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      135.41,-19.75 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:45:01 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     1091101,   Seg_Num: 0
POINT_RA:        132.148d {+08h 48m 36s} (J2000)
POINT_DEC:        -2.705d {-02d 42' 17"} (J2000)
ROLL:            129.179d
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  85020.93 SOD {23:37:00.93} UT,   294.1 [sec] since BAT Trigger Time
FILTER:          7, U
EXPOSURE_ID:     662341049
X_OFFSET:        995 [pixels]
Y_OFFSET:        956 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1155
Y_GRB_POS:       1116
BINNING_INDEX:   1
IM_URL:          sw01091101000msuni0323.fits
SUN_POSTN:       277.02d {+18h 28m 06s}  -23.28d {-23d 16' 42"}
SUN_DIST:        136.77 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.57d {+13h 10m 18s}   -3.68d {-03d 40' 56"}
MOON_DIST:        65.04 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.84, 24.42 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      135.41,-19.75 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:44:09 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     1091101,   Seg_Num: 0
POINT_RA:        132.148d {+08h 48m 36s} (J2000)
POINT_DEC:        -2.705d {-02d 42' 17"} (J2000)
POINT_ROLL:      129.179d
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  85020.93 SOD {23:37:00.93} UT,   294.1 [sec] since BAT Trigger Time
FILTER:          7, U
BKG_MEAN:        0.589
N_STARS:         32
X_OFFSET:        675 [pixels]
Y_OFFSET:        636 [pixels]
X_MAX:           1634 [pixels]
Y_MAX:           1595 [pixels]
DET_THRESH:      7
PHOTO_THRESH:    3
SL_URL:          sw01091101000msufc0294.fits
SUN_POSTN:       277.02d {+18h 28m 06s}  -23.28d {-23d 16' 42"}
SUN_DIST:        136.77 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.57d {+13h 10m 16s}   -3.68d {-03d 40' 43"}
MOON_DIST:        65.03 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.84, 24.42 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      135.41,-19.75 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:45:15 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     1091101,   Seg_Num: 0
POINT_RA:        132.148d {+08h 48m 36s} (J2000)
POINT_DEC:        -2.705d {-02d 42' 17"} (J2000)
ROLL:            129.179d
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  85020.93 SOD {23:37:00.93} UT,   294.1 [sec] since BAT Trigger Time
FILTER:          7, U
EXPOSURE_ID:     662341049
X_OFFSET:        995 [pixels]
Y_OFFSET:        956 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1155
Y_GRB_POS:       1116
BINNING_INDEX:   1
IM_URL:          sw01091101000msuni0323.fits
SUN_POSTN:       277.03d {+18h 28m 06s}  -23.28d {-23d 16' 42"}
SUN_DIST:        136.77 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.58d {+13h 10m 18s}   -3.68d {-03d 41' 00"}
MOON_DIST:        65.04 [deg]
MOON_ILLUM:      41 [%]
GAL_COORDS:      229.84, 24.42 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      135.41,-19.75 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the XRT Position Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:49:37 UT
NOTICE_TYPE:     Swift-UVOT Source List
TRIGGER_NUM:     1091101,   Seg_Num: 0
POINT_RA:        132.148d {+08h 48m 36s} (J2000)
POINT_DEC:        -2.705d {-02d 42' 16"} (J2000)
POINT_ROLL:      129.178d
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  85598.27 SOD {23:46:38.27} UT,   871.4 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        4.426
N_STARS:         108
X_OFFSET:        435 [pixels]
Y_OFFSET:        396 [pixels]
X_MAX:           1874 [pixels]
Y_MAX:           1835 [pixels]
DET_THRESH:      18
PHOTO_THRESH:    10
SL_URL:          sw01091101000msufc0871.fits
SUN_POSTN:       277.03d {+18h 28m 07s}  -23.28d {-23d 16' 41"}
SUN_DIST:        136.78 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.61d {+13h 10m 27s}   -3.70d {-03d 42' 06"}
MOON_DIST:        65.08 [deg]
MOON_ILLUM:      40 [%]
GAL_COORDS:      229.84, 24.42 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      135.41,-19.75 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Source List.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:49:54 UT
NOTICE_TYPE:     Swift-UVOT Processed Source List
TRIGGER_NUM:     1091101,   Seg_Num: 0
POINT_RA:        132.148d {+08h 48m 36s} (J2000)
POINT_DEC:        -2.705d {-02d 42' 16"} (J2000)
POINT_ROLL:      129.178d
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  85598.27 SOD {23:46:38.27} UT,   871.4 [sec] since BAT Trigger Time
FILTER:          10, White
BKG_MEAN:        4.426
N_STARS:         108
X_OFFSET:        435 [pixels]
Y_OFFSET:        396 [pixels]
X_MAX:           1874 [pixels]
Y_MAX:           1835 [pixels]
DET_THRESH:      18
PHOTO_THRESH:    10
SL_URL:          sw01091101000msufc0871.fits
SUN_POSTN:       277.03d {+18h 28m 07s}  -23.28d {-23d 16' 41"}
SUN_DIST:        136.78 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.62d {+13h 10m 28s}   -3.70d {-03d 42' 10"}
MOON_DIST:        65.08 [deg]
MOON_ILLUM:      40 [%]
GAL_COORDS:      229.84, 24.42 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      135.41,-19.75 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Source List.
COMMENTS:        All 4 attachments are included.

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:51:02 UT
NOTICE_TYPE:     Swift-UVOT Image
TRIGGER_NUM:     1091101,   Seg_Num: 0
POINT_RA:        132.148d {+08h 48m 36s} (J2000)
POINT_DEC:        -2.705d {-02d 42' 16"} (J2000)
ROLL:            129.178d
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  85598.27 SOD {23:46:38.27} UT,   871.4 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     662341626
X_OFFSET:        994 [pixels]
Y_OFFSET:        955 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1154
Y_GRB_POS:       1115
BINNING_INDEX:   1
IM_URL:          sw01091101000msuni0900.fits
SUN_POSTN:       277.03d {+18h 28m 07s}  -23.28d {-23d 16' 41"}
SUN_DIST:        136.78 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.63d {+13h 10m 30s}   -3.71d {-03d 42' 28"}
MOON_DIST:        65.09 [deg]
MOON_ILLUM:      40 [%]
GAL_COORDS:      229.84, 24.42 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      135.41,-19.75 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 27 Dec 21 23:51:11 UT
NOTICE_TYPE:     Swift-UVOT Processed Image
TRIGGER_NUM:     1091101,   Seg_Num: 0
POINT_RA:        132.148d {+08h 48m 36s} (J2000)
POINT_DEC:        -2.705d {-02d 42' 16"} (J2000)
ROLL:            129.178d
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  85598.27 SOD {23:46:38.27} UT,   871.4 [sec] since BAT Trigger Time
FILTER:          10, White
EXPOSURE_ID:     662341626
X_OFFSET:        994 [pixels]
Y_OFFSET:        955 [pixels]
WIDTH:           160 [pixels]
HEIGHT:          160 [pixels]
X_GRB_POS:       1154
Y_GRB_POS:       1115
BINNING_INDEX:   1
IM_URL:          sw01091101000msuni0900.fits
SUN_POSTN:       277.03d {+18h 28m 07s}  -23.28d {-23d 16' 41"}
SUN_DIST:        136.78 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.63d {+13h 10m 31s}   -3.71d {-03d 42' 30"}
MOON_DIST:        65.09 [deg]
MOON_ILLUM:      40 [%]
GAL_COORDS:      229.84, 24.42 [deg] galactic lon,lat of the pointing direction
ECL_COORDS:      135.41,-19.75 [deg] ecliptic lon,lat of the pointing direction
COMMENTS:        SWIFT-UVOT Processed Image.
COMMENTS:        The GRB Position came from the Window Position in the Mode Command.
COMMENTS:        The image has 2x2 binning (compression).
COMMENTS:        All 4 attachments are included.

GCN Circular #31316
A. P. Beardmore (U Leicester), S. D. Barthelmy (GSFC), F. E. Marshall (NASA/GSFC), K. L. Page (U Leicester), D. M. Palmer (LANL), T. M. Parsotan (GSFC/UMBC/CRESSTII), B. Sbarufatti (PSU), M. H. Siegel (PSU) and A. Tohuvavohu (U Toronto) report on behalf of the Neil Gehrels Swift Observatory Team:
At 23:32:06 UT, the Swift Burst Alert Telescope (BAT) triggered and located GRB 211227A (trigger=1091101). Swift slewed immediately to the burst. The BAT on-board calculated location is RA, Dec 132.126, -2.702 which is
```
   RA(J2000) = 08h 48m 30s
   Dec(J2000) = -02d 42' 05"
```
with an uncertainty of 3 arcmin (radius, 90% containment, including systematic uncertainty). The BAT light curve showed a complex structure with a duration of about 100 sec. The peak count rate was ~5200 counts/sec (15-350 keV), at ~1 sec after the trigger.
The XRT began observing the field at 23:33:20.3 UT, 73.5 seconds after the BAT trigger. Using promptly downlinked data we find a bright, fading, uncatalogued X-ray source located at RA, Dec 132.14898, -2.73556 which is equivalent to:
```
   RA(J2000)  = 08h 48m 35.76s
   Dec(J2000) = -02d 44' 08.0"
```
with an uncertainty of 3.8 arcseconds (radius, 90% containment). This location is 146 arcseconds from the BAT onboard position, within the BAT error circle. This position may be improved as more data are received; the latest position is available at https://www.swift.ac.uk/sper.
A power-law fit to a spectrum formed from promptly downlinked event data gives a column density in excess of the Galactic value (2.37 x 10^20 cm^-2, Willingale et al. 2013), with an excess column of 4.3 (+3.24/-2.79) x 10^21 cm^-2 (90% confidence).
The initial flux in the 2.5 s image was 6.84e-09 erg cm^-2 s^-1 (0.2-10 keV).
UVOT took a finding chart exposure of 150 seconds with the White filter starting 81 seconds after the BAT trigger. No credible afterglow candidate has been found in the initial data products. The 2.7'x2.7' sub-image covers 100% of the XRT error circle. The typical 3-sigma upper limit has been about 19.6 mag. The 8'x8' region for the list of sources generated on-board covers 100% of the XRT error circle. The list of sources is typically complete to about 18 mag. No correction has been made for the expected extinction corresponding to E(B-V) of 0.020.
Burst Advocate for this burst is A. P. Beardmore (apb AT star.le.ac.uk). Please contact the BA by email if you require additional information regarding Swift followup of this burst. In extremely urgent cases, after trying the Burst Advocate, you can contact the Swift PI by phone (see Swift TOO web site for information: http://www.swift.psu.edu/)

GCN NOTICE

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Tue 28 Dec 21 00:00:08 UT
NOTICE_TYPE:     Swift-XRT Position UPDATE
TRIGGER_NUM:     1091101,   Seg_Num: 0
GRB_RA:          132.1489d {+08h 48m 35.73s} (J2000),
                 132.4263d {+08h 49m 42.30s} (current),
                 131.5180d {+08h 46m 04.30s} (1950)
GRB_DEC:          -2.7355d {-02d 44' 07.8"} (J2000),
                  -2.8179d {-02d 49' 04.3"} (current),
                  -2.5498d {-02d 32' 59.3"} (1950)
GRB_ERROR:       3.8 [arcsec radius, statistical plus systematic, 90% containment]
GRB_INTEN:       1.00e-10 [erg/cm2/sec]
GRB_SIGNIF:      10.00 [sigma]
IMG_START_DATE:  19575 TJD;   361 DOY;   21/12/27
IMG_START_TIME:  84990.00 SOD {23:36:30.00} UT,   263.1 [sec] since BAT Trigger Time
TAM[0-3]:        100.00 100.00 100.00 100.00
AMPLIFIER:       1
WAVEFORM:        31
SUN_POSTN:       277.04d {+18h 28m 09s}  -23.28d {-23d 16' 40"}
SUN_DIST:        136.76 [deg]   Sun_angle= 9.6 [hr] (West of Sun)
MOON_POSTN:      197.70d {+13h 10m 49s}   -3.75d {-03d 44' 46"}
MOON_DIST:        65.16 [deg]
MOON_ILLUM:      40 [%]
GAL_COORDS:      229.87, 24.40 [deg] galactic lon,lat of the burst
ECL_COORDS:      135.42,-19.78 [deg] ecliptic lon,lat of the burst
COMMENTS:        SWIFT-XRT Coordinates.
COMMENTS:        This Notice was ground-generated -- not flight-generated.
COMMENTS:        This is an Update Notice -- the RA,Dec values herein supersede the previous XRT_POS Notice.
COMMENTS:        TAM values, flux and significance fields are not valid.
COMMENTS:        This position was automatically generated on the ground using
COMMENTS:        Photon Counting data telemetered via TDRSS (SPER data).
COMMENTS:        See http://www.swift.ac.uk/sper/docs.php for details.
COMMENTS:        The probability that this is a serendipitous source in the
COMMENTS:        SPER window is 0.58% < P(seren) < 1.1%.

GCN NOTICE

TITLE:           GCN/MAXI NOTICE
NOTICE_DATE:     Tue 28 Dec 21 00:00:36 UT
NOTICE_TYPE:     MAXI Unknown Source Position
EVENT_ID_NUM:      9575764628
EVENT_RA:        131.93d {+08h 47m 42s} (J2000),
                 132.20d {+08h 48m 49s} (current),
                 131.30d {+08h 45m 12s} (1950)
EVENT_DEC:        -3.50d {-03d 30' 00"} (J2000),
                  -3.58d {-03d 34' 54"} (current),
                  -3.32d {-03d 18' 53"} (1950)
EVENT_ERROR:     1.0 [deg radius, stat+sys, 90% containment]
EVENT_FLUX:      1174.0 +- 0.0 [mCrab]
EVENT_DATE:      19575 TJD;   361 DOY;   21/12/27
EVENT_TIME:      84727.00 SOD {23:32:07.00} UT
EVENT_TSCALE:    3s
EVENT_EBAND:     Low, 2-4 keV
SUN_POSTN:       277.04d {+18h 28m 09s}  -23.28d {-23d 16' 40"}
SUN_DIST:        136.45 [deg]
MOON_POSTN:      197.71d {+13h 10m 50s}   -3.75d {-03d 44' 54"}
MOON_DIST:        65.36 [deg]
MOON_ILLUM:      40 [%]
GAL_COORDS:      230.45, 23.81 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      135.43,-20.57 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        MAXI Unknown Source Position. GRB or unknown X-ray Transient.

GCN NOTICE

TITLE:           GCN/MAXI NOTICE
NOTICE_DATE:     Tue 28 Dec 21 00:05:06 UT
NOTICE_TYPE:     MAXI Unknown Source Position
EVENT_ID_NUM:      9575764628
EVENT_RA:        131.68d {+08h 46m 43s} (J2000),
                 131.96d {+08h 47m 49s} (current),
                 131.05d {+08h 44m 12s} (1950)
EVENT_DEC:        -3.50d {-03d 30' 00"} (J2000),
                  -3.58d {-03d 34' 53"} (current),
                  -3.32d {-03d 18' 57"} (1950)
EVENT_ERROR:     1.0 [deg radius, stat+sys, 90% containment]
EVENT_FLUX:      14.0 +- 0.0 [mCrab]
EVENT_DATE:      19575 TJD;   361 DOY;   21/12/27
EVENT_TIME:      84727.00 SOD {23:32:07.00} UT
EVENT_TSCALE:    3s
EVENT_EBAND:     Low, 2-4 keV
SUN_POSTN:       277.04d {+18h 28m 10s}  -23.28d {-23d 16' 39"}
SUN_DIST:        136.64 [deg]
MOON_POSTN:      197.75d {+13h 10m 59s}   -3.77d {-03d 46' 02"}
MOON_DIST:        65.64 [deg]
MOON_ILLUM:      40 [%]
GAL_COORDS:      230.31, 23.60 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      135.18,-20.64 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        MAXI Unknown Source Position. GRB or unknown X-ray Transient.

GCN Circular #31318
Y.-D. Hu, T.-R. Sun, E. Fernandez-Garcia, A. J. Castro-Tirado, M.D. Caballero-Garcia, R. Sanchez-Ramirez (IAA-CSIC), C. Perez del Pulgar, A. Castellon, I. Carrasco (Univ. de Malaga), R. Fernandez-Munoz (IHSM/UMA-CSIC) and M. Jelinek (ASU-CAS), on behalf of a larger collaboration, report:
Following the detection of GRB 211227A by Swift (Beardmore et al. GCNC 31316), the 0.6m BOOTES-2/TELMA robotic telescope at IHSM La Mayora (UMA-CSIC) in Algarrobo Costa (Malaga, Spain) automatically responded to this burst starting on Dec. 27 at 23:32:49 UT (~43 s after trigger). But due to technical problems, only images taken after 23:42 UT (~10 min after trigger) could be used. No new source is detected within the XRT error region in the co-added image (20 x 10 s, clear filter) down to 19.9 mag. This non-detection is consistent with the report from MASTER (Lipunov et al. GCNC 31315) and UVOT (Beardmore et al. GCNC 31316).
We thank the staff at La Mayora for its excellent support.
GCN Circular #31319
M. Tominaga (JAXA), Y. Kawakubo (LSU), M. Serino (AGU), H. Negoro, M. Nakajima, K. Kobayashi, K. Asakura, K. Seino (Nihon U.), T. Mihara, T. Tamagawa, J. Li, M. Matsuoka (RIKEN), T. Sakamoto, S. Sugita, K. Komachi, H. Hiramatsu, A. Yoshida (AGU), Y. Tsuboi, W. Iwakiri, H. Kawai, Y. Okamoto, S. Kitakoga (Chuo U.), M. Shidatsu, M. Iwasaki (Ehime U.), N. Kawai, M. Niwano, R. Hosokawa, Y. Imai, N. Ito, Y. Takamatsu (Tokyo Tech), S. Nakahira, S. Ueno, H. Tomida, M. Ishikawa, T. Nagatsuka, T. Kurihara(JAXA), Y. Ueda, S. Yamada, S. Ogawa, K. Setoguchi, T. Yoshitake, Y. Goto, R. Uematsu, K. Inaba (Kyoto U.), H. Tsunemi (Osaka U.), M. Yamauchi, Y. Nonaka, T. Sato, R. Hatsuda, R. Fukuoka (Miyazaki U.), T. Kawamuro (UDP/NAOJ), K. Yamaoka (Nagoya U.), M. Sugizaki (NAOC)
report on behalf of the MAXI team: The MAXI/GSC nova alert system triggered a bright uncatalogued X-ray transient source at 23:32:06 UT on 2021 December 27. Assuming that the source flux was constant over the transit, we obtain the source position at
(R.A., Dec) = (132.253 deg, -2.658 deg) = (08 49 00, -02 39 28) (J2000)
with a statistical 90% C.L. elliptical error region with long and short radii of 0.12 deg and 0.09 deg, respectively. The roll angle of long axis from the north direction is 66.0 deg counterclockwise. There is an additional systematic uncertainty of 0.1 deg (90% containment radius). The X-ray flux averaged over the scan was 630 +- 48 mCrab (4.0-10.0keV, 1 sigma error).
We conclude that this event is coincidence with the GRB event reported by Swift (R.A., Dec) = (132.14898,-2.73556) (J2000) (GCN #31316).
GCN Circular #31320
S.Y. Fu (NAOC), Z.P. Zhu (NAOC,HUST), X. Liu, S.Q. Jiang, D. Xu (NAOC), X. Gao (Urumqi No.1 Senior High School), J.Z. Liu (XAO) report:
We observed the field of GRB 211227A (Beardmore et al. GCN Circ. 31316) using the NEXT-0.6m telescope located at Nanshan, Xinjiang, China. Observations automatically started at 23:33:37 UT on 2021-12-27 (i.e., 90.14 s after the BAT trigger), and a series of 40 s, 60 s, 90 s frames were obtained in the Sloan r-filter.
Within the Swift/XRT error circle (Beardmore et al. GCN Circ. 31316), no uncatalogued optical transient is detected in our stacked image down to a limiting magnitude of r ~ 20.0 mag, calibrated with the nearby PanSTARRS field.
However, there exists a known source at the border of the Swift/XRT error circle at coordinates: R.A. (J2000)=08:48:35.975 and Dec (J2000)= -02:44:06.93, which has r ~ 19.6 mag from Nanshan/NEXT, r ~ 19.40 mag and classified as galaxy with a photo-redshift of 0.244 +/- 0.0888 from SDSS, r ~ 19.47 mag from PanSTARRS, as well as r ~ 19.25 from Legacy Survey. No apparent brightening of the galaxy is seen in comparison of Nanshan/NEXT and different surveys, indicating that the contribution of the optical counterpart of the burst is negligible if the galaxy is the host of the burst.
GCN Circular #31321
R. Strausbaugh (U. of the Virgin Islands), A. Cucchiara (College of Marin) report on behalf of a larger collaboration:
We observed Swift GRB 211227A (Beardmore, et al., GCN 31316) with the LCO 1-m Sinistro instrument at the Teide, Tenerife site, on December 28, from 00:39 to 01:11 UT (corresponding to 1.12 to 1.48 hours from the GRB trigger time) with the Bessel R and I filters.
We performed a series of 4x240s exposures in R and I bands. We detect no sources within the Swift XRT detection region (Beardmore, et al., GCN 31316) in either band. The following upper limits are calculated using the USNO-B.1 catalog as reference:
```
R>22.81
I>22.42
```
We do note the presence of a faint uncatalogued source just outside the XRT region at RA, DEC = (132.1449185, -2.7343489) at the following magnitudes, calculated with respect to the USNO-B.1 catalog:
```
R=21.79+/-0.20
I=22.13+/-0.24
```
We recommend continued monitoring of this source to determine if it is fading. These magnitudes are not corrected for galactic extinction.
R.S. is funded by NSF AST grant #1831682
GCN Circular #31322
M.R. Goad, J.P. Osborne, A.P. Beardmore and P.A. Evans (U. Leicester) report on behalf of the Swift-XRT team.
Using 789 s of XRT Photon Counting mode data and 1 UVOT images for GRB 211227A, we find an astrometrically corrected X-ray position (using the XRT-UVOT alignment and matching UVOT field sources to the USNO-B1 catalogue): RA, Dec = 132.14889, -2.73531 which is equivalent to:
```
RA (J2000): 08h 48m 35.73s
Dec (J2000): -02d 44' 07.1"
```
with an uncertainty of 2.6 arcsec (radius, 90% confidence).
This position may be improved as more data are received. The latest position can be viewed at http://www.swift.ac.uk/xrt_positions. Position enhancement is described by Goad et al. (2007, A&A, 476, 1401) and Evans et al. (2009, MNRAS, 397, 1177).
This circular was automatically generated, and is an official product of the Swift-XRT team.
GCN Circular #31323
D. A. Perley (LJMU) reports:
We acquired imaging at the position of GRB 211227A (Beardmore et al., GCN 31316) using the IO:O camera of the 2m robotic Liverpool Telescope. The field was observed twice in the griz filters on 2021-12-28 UT, with the first epoch taking place between 00:36:10 and 00:45:43 and the second between 02:04:43 and 02:14:18.
No new source is detected within or near the XRT position (Goad et al., GCN 31322) after digital subtration of reference imaging from the Pan-STARRS 1 survey. Photometry with reference to PS1 secondary standard stars in the field gives the following upper limits:
```
dt(days)    magnitude
0.04449     g > 21.99
0.04625     r > 22.62
0.04799     i > 22.68
0.04974     z > 21.36
```
The LCO source mentioned by Strausbaugh et al. (GCN 31321) is detected in PS1 reference imaging and is also marginally detected in both sets of (unsubtracted) LT images and is far from the enhanced XRT error circle, suggesting it is unlikely to be related to the GRB.
GCN Circular #31324
D. B. Malesani (Radboud Univ. and DAWN/NBI), L. Izzo (DARK/NBI), D. Xu (NAOC/CAS), A. de Ugarte Postigo (Obs. de la Cote d'Azur), D. A. Kann (IAA/CSIC), A. J. Levan (Radboud Univ.), Z.P. Zhu (NAOC, HUST), S.Y. Fu (NAOC), report on behalf of the Stargate collabaration:
We observed the location of GRB 211227A (Beardmore et al., GCN 31316) using the ESO VLT UT3 (Melipal) equipped with the X-shooter spectrograph. Short images were secured with the acquisition camera in the g, r, and z filters. No new object is detected inside the revised XRT error circle (Goad et al., GCN 31322) down to an AB magnitude r > 24.7 (mean time Dec 28.191 UT).
The galaxy mentioned by Fu et al. (GCN 31320) is well detected in our image. Its core lies 3.66" away of the center of the XRT circle (2.4" 90% error radius), though its wings extend towards it.
A spectrum of this object was secured, covering the wavelength range 3000-21000 AA, and consisting of 4 exposures of 600 s each. The observation mid time was 2021 Dec 28.21 UT (5.60 hr after the GRB). We detect several emission lines, which we interpret as due to [O II], Hbeta, [O III] 5007, Halpha, [N II], [S II] all at a common redshift z = 0.228. Absorption features due to Ca II 3933/3968 and the Na I D doublet 5890/5896 are also visible at the same redshift. This value is consistent with the SDSS photometric redshift. The galaxy is fairly bright, with an absolute magnitude M_r ~ -21.3 (AB) using i = 18.84 (AB) from SDSS.
We point out the similarity of the gamma-ray light curve of GRB 211227A (e.g. https://gcn.gsfc.nasa.gov/notices_s/1091101/BA/) with that of GRB 060614 (e.g. Gehrels et al. 2006, Nature, 444, 1044), suggested by some authors to be a merger event (e.g. Yang et al. 2015, Nat. Comm., 6, 7323). The location of the GRB, slightly offset from a bright, nearby galaxy, would also be consistent with this interpretation. We raise the possibility that GRB 211227A is a short GRB with extended emission. However, a long GRB, either hosted by the z = 0.228 galaxy, or in the background, remains a viable possibility.
We encourage further observations of this potentially interesting event at all wavelengths.
We acknowledge excellent support from the ESO observing staff in Paranal, in particular Israel Blanchard, Robert De Rosa, and Fuyan Bian.
GCN Circular #31326
A. Y. Lien (U Tampa), S. D. Barthelmy (GSFC), H. A. Krimm (NSF), S. Laha (GSFC/UMBC), C. B. Markwardt (GSFC), D. M. Palmer (LANL), T. Parsotan (GSFC/UMBC), T. Sakamoto (AGU), M. Stamatikos (OSU) (i.e. the Swift-BAT team):
Using the data set from T-239 to T+963 sec from the recent telemetry downlink, we report further analysis of BAT GRB 211227A (trigger #1091101) (Beardmore et al., GCN 31316). The BAT ground-calculated position is RA, Dec = 132.144, -2.736 deg which is
```
   RA(J2000)  =  08h 48m 34.5s
   Dec(J2000) = -02d 44' 10.9"
```
with an uncertainty of 1.4 arcmin, (radius, sys+stat, 90% containment). The partial coding was 41%.
The BAT light curve showed a complex structure with a duration of about 100 sec. T90 (15-350 keV) is 83.79 +- 8.47 sec (estimated error including systematics).
The time-averaged spectrum from 0.04 to 126.3 sec is best fit by a simple power-law model. The power law index of the time-averaged spectrum is 1.60 +- 0.05. The fluence in the 15-150 keV band is 8.0 +- 0.2 x 10^-06 erg/cm2. The 1-sec peak photon flux measured from T+0.06 sec in the 15-150 keV band is 5.1 +- 0.4 ph/cm2/sec. All the quoted errors are at the 90% confidence level.
The results of the batgrbproduct analysis are available at http://gcn.gsfc.nasa.gov/notices_s/1091101/BA/
GCN Circular #31327
M. Perri (SSDC & INAF-OAR), V. D'Elia (SSDC & INAF-OAR), A. D'Ai (INAF-IASFPA), J.A. Kennea (PSU), A. Tohuvavohu (U. Toronto), B. Sbarufatti (PSU), P.A. Evans (U. Leicester), J.P. Osborne (U. Leicester) and A.P. Beardmore report on behalf of the Swift-XRT team:
We have analysed 8.1 ks of XRT data for GRB 211227A (Beardmore et al. GCN Circ. 31316), from 63 s to 57.9 ks after the BAT trigger. The data comprise 182 s in Windowed Timing (WT) mode (the first 9 s were taken while Swift was slewing) with the remainder in Photon Counting (PC) mode. The enhanced XRT position for this burst was given by Goad et al. (GCN Circ. 31322).
The light curve can be modelled with a series of power-law decays. The initial decay index is alpha=1.27 (+0.21, -0.20). At T+105 s the decay steepens to an alpha of 2.27 (+0.20, -0.17) before breaking again at T+220 s to a final decay with index alpha=5.49 (+0.37, -0.30).
A spectrum formed from the WT mode data can be fitted with an absorbed power-law with a photon spectral index of 1.11 (+/-0.07). The best-fitting absorption column is 2.2 (+0.5, -0.4) x 10^21 cm^-2, in excess of the Galactic value of 2.4 x 10^20 cm^-2 (Willingale et al. 2013). The counts to observed (unabsorbed) 0.3-10 keV flux conversion factor deduced from this spectrum is 6.1 x 10^-11 (6.6 x 10^-11) erg cm^-2 count^-1.
A summary of the WT-mode spectrum is thus:
```
Total column:	     2.2 (+0.5, -0.4) x 10^21 cm^-2
Galactic foreground: 2.4 x 10^20 cm^-2
Excess significance: 7.8 sigma
Photon index:	     1.11 (+/-0.07)
```
If the light curve continues to decay with a power-law decay index of 5.49, the count rate at T+24 hours will be 7.3 x 10^-14 count s^-1, corresponding to an observed (unabsorbed) 0.3-10 keV flux of 4.5 x 10^-24 (4.9 x 10^-24) erg cm^-2 s^-1.
The results of the XRT-team automatic analysis are available at http://www.swift.ac.uk/xrt_products/01091101.
This circular is an official product of the Swift-XRT team.
GCN Circular #31328
A. Belles (PSU) and A. P. Beardmore (U. Leicester) report on behalf of the Swift/UVOT team:
The Swift/UVOT began settled observations of the field of GRB 211227A 82 s after the BAT trigger (Beardmore et al., GCN Circ. 31316). No optical afterglow consistent with the XRT position (Goad et al. GCN Circ. 31322) is detected in the initial UVOT exposures. Preliminary 3-sigma upper limits using the UVOT photometric system (Breeveld et al. 2011, AIP Conf. Proc. 1358, 373) for the first finding chart (FC) exposure and subsequent exposures are:
```
Filter         T_start(s)   T_stop(s)      Exp(s)         Mag

white_FC            82          232          147         >19.4
u_FC               294          544          246         >19.2
white               82         1021          334         >19.5
v                  624         4923          241         >18.7
b                  550          742           39         >18.6
u                  294         5431          357         >19.4
w1                 673         5333          235         >19.7
m2                 648         5127          235         >20.4
w2                 772          792           19         >19.0
```
The magnitudes in the table are not corrected for the Galactic extinction due to the reddening of E(B-V) = 0.020 in the direction of the burst (Schlegel et al. 1998).
GCN Circular #31333
M. L. Cherry (LSU), A. Yoshida, T. Sakamoto, V. Pal'shin, S. Sugita (AGU), Y. Kawakubo (LSU), K. Yamaoka (Nagoya U), S. Nakahira (RIKEN), Y. Asaoka (ICRR), S. Torii, Y. Akaike, K. Kobayashi (Waseda U), Y. Shimizu, T. Tamura (Kanagawa U), N. Cannady (GSFC/UMBC), S. Ricciarini (U of Florence), P. S. Marrocchesi (U of Siena), and the CALET collaboration:
The long GRB 211227A (Swift detection and refined analysis: Beardmore et al., GCN Circ. 31316, Lien et al., GCN Circ. 31326; MAXI/GSC detection: Tominaga et al., GCN Circ. 31319; https://gcn.gsfc.nasa.gov/other/211227A.gcn3) triggered the CALET Gamma-ray Burst Monitor (CGBM) at 23:32:07.476 UTC on 27 December 2021. The burst signal was seen by all CGBM detectors. Because of a problem in one of the ground alert processing script, the GCN notice was not distributed automatically for this event.
The burst light curve shows a multi-peaked structure which starts at T-0.6 sec and ends at T+77.2 sec. The T90 and T50 durations measured by the SGM data are 64.5 +- 10.3 sec and 22.0 +- 2.0 sec (40-1000 keV), respectively.
The ground processed light curve is available at
http://cgbm.calet.jp/cgbm_trigger/ground/1324683113/
The CALET data used in this analysis are provided by the Waseda CALET Operation Center located at the Waseda University.
GCN Circular #31341
D A. Kann (HETH/IAA-CSIC), A. de Ugarte Postigo (Obs. Cote d'Azur), C. C. Thoene, M. Blazek (both HETH), J. F. Agui Fernandez (HETH/IAA-CSIC), and S. Gongora (CAHA) report:
We observed the localization of GRB 211227A (Swift detection: Beardmore et al., GCN #31316; Enhanced XRT position: Goad et al., GCN #31322; MAXI/GSC Detection: Tominaga et al., GCN #31319) with CAFOS, mounted on the 2.2 m telescope, at the Calar Alto Observatory (Almeria, Spain). The observation started at 00:08:45 UT on 28 December 2021 (36.65 min after the GRB) and consisted of 30 x 90 s integrations in the i' band. Observing conditions were mediocre (wind, some clouds, 3" seeing).
Our combined image is centered at 0.04233 d after the trigger. No afterglow is detected in the XRT error circle, in agreement with other observations (Lipunov et al., GCN #31315; Hu et al., GCN #31318; Fu et al., GCN #31320; Strausbaugh et al., GCN #31321; Perley, GCN #31323; Malesani et al., GCN #31324; Belles et al., GCN #31328). This area is affected by the outer PSF wing of a bright nearby star, causing a variable background. Using an isolated SDSS star, we measure a limit away from the stellar PSF of i' > 23.4 mag, but caution this limit will be somewhat less deep in the XRT error circle.
Assuming the GRB is associated with the nearby galaxy at redshift z = 0.228 (Malesani et al., GCN #31324), a comparison with the light curve of GRB 060614 (Kann et al. 2011, ApJ, 734, 96) reveals this limit is about 3 magnitudes fainter than the equivalent afterglow magnitude for GRB 060614 at the same redshift.
GCN Circular #31376
B. O'Connor (GWU, UMD), E. Troja (NASA-GSFC), A. Gottlieb (UMD, NASA-GSFC) report on behalf of a larger collaboration:
We observed the field of GRB 211227A (Beardmore et al., GCN #31316) with Gemini/GMOS-S on December 30, 2021 starting at 05:36:43 UT (corresponding to ~2.3 d post-trigger). The observations were performed in i-band with a total exposure of 15x120 s at airmass 1.2 with good weather conditions and seeing ~0.7".
Within the XRT enhanced position (Goad et al., GCN #31322), we do not detect any source to depth i>26 AB mag. This is consistent with other non-detections currently reported (Lipunov et al., GCN #31315; Hu et al., GCN #31318; Fu et al., GCN #31320; Strausbaugh et al., GCN #31321; Perley, GCN #31323; Malesani et al., GCN #31324; Belles et al., GCN #31328, Kann et al., GCN #31341). Due to the potentially nearby distance (z=0.228; Malesani et al., GCN #31324), these observations disfavor a GRB-supernova similar to SN1998bw. In terms of probing potential kilonova emission, this limit would have detected an AT2017gfo-like event at z=0.228.
We thank the staff of the Gemini Observatory, in particular Janice Lee and Venu Kalari, for rapid scheduling of these observations.
GCN Circular #31386
Enwei Liang (GXU), Tingfeng Yi(YNNU), Liping Xin (NAOC), Haicheng Feng (YNAO CAS), Houjun Lv (GXU), Xianggao Wang (GXU) and Youdong Hu (IAA) report:
We observed the field of GRB 211227A (Beardmore et al., GCN #31316) with the Lijiang 2.4m telescope on January 3, 2022，starting at 18:23:25 UT， about 6.8 day after trigger. The observations were performed in R band with a total exposure of 1200 s at airmass of 1.2 and a seeing of ~1.7, under good weather conditions.
Within the XRT enhanced errorbox (Goad et al., GCN #31322), we did not detect any source to a depth of R > 21.5 mag calibrated by nearby SDSS DR12 stars (SDSS J084838.92-024405.9，J084838.22-024355.7， J084836.33-024403.8). This is consistent with other non-detections reported (Lipunov et al., GCN #31315; Hu et al., GCN #31318; Fu et al., GCN #31320; Strausbaugh et al.,GCN #31321; Perley, GCN #31323; Malesani et al., GCN #31324; Belles et al., GCN #31328, Kann et al., GCN #31341,GCN #31376 O'Connor et al.).
We thank the staff of the Lijiang 2.4m telescope, in particular Jiangguo Wang for scheduling of these observations.
GCN Circular #31544
A. Tsvetkova, D. Frederiks, A.Lysenko, D. Svinkin, A. Ridnaia, M. Ulanov (all Ioffe), and A.Y. Lien (U Tampa), report:
The long GRB 211227A (Swift-BAT detection: Beardmore et al., GCN 31316; Lien et al., GCN 31326; MAXI/GSC detection: Tominaga et al., GCN 31319; CALET-GRBM detection: Cherry et al., GCN 31333), T0 (BAT) = 23:32:06.867, was detected by Konus-Wind (KW) in the waiting mode.
A Bayesian block analysis of the KW waiting mode data in 25-400 keV range reveals two episodes with count rate excess >10 sigma over background. The first one, lasting from ~T0-50 s to ~T0-10 s, is due to the solar activity and is not associated with the GRB. The second episode, from ~T0-1.5 s to ~T0+81 s, is consistent in time with the BAT detection. It has a double-peaked structure, with the first, narrow pulse peaking at ~T0, and the second, more broad pulse - at ~T0 + 11 s.
To derive broad-band spectral parameters of this burst, we performed a joint spectral analysis of the Swift/BAT data (15-150 keV) and the KW 3-channel spectral data (25-1700 keV).
A fit to the time-averaged spectrum, measured from T0-1.540 s� to T0+83.836 s, by the Band GRB function gives alpha = -1.34 (-0.08,+0.10), beta = -2.26 (-1.11,+0.24), and Ep = 192 (-42,+45) keV; chi^2 = 48.5/ 57 dof.
A fit to the spectrum near the peak KW count rate, measured from T0+10.236 s to T0+19.068 s, by the Band function gives alpha = -1.09 (-0.07,+0.08), beta = -2.29 (-0.11,+0.28), and Ep = 374 (-70,+66) keV; chi^2 = 47.1/58 dof.
The spectrum of the short initial pulse, measured from T0-1.540 s to T0+4.348 s, is well fit by a power law with an exponential cutoff (CPL), with alpha = -1.56 (-0.06,+0.15) and Ep = 366 (-179,+1201) keV; chi^2 = 49.3/59 dof. Although the Band model fit to this spectrum is not constrained, fixing beta to the value -2.26, obtained for the time-integrated spectrum, gives alpha = -1.49 (-0.18, +0.24) and Ep = 240 (-116, +759) keV; chi^2 = 49.0/59 dof.
In the 15-1500 keV band, the total burst fluence is 2.60(-0.21,+0.21)x10^-5 erg/cm^2, and the 64 ms peak energy flux is 2.0(-0.4,+0.4)x10^-6 erg/cm^2/s.
Assuming the redshift z=0.228 (Malesani et al., GCN 31324) of the host galaxy candidate (Fu et al., GCN 31320), and a standard cosmology with H_0 = 67.3 km/s/Mpc, Omega_M = 0.315, and Omega_Lambda = 0.685 (Planck Collaboration, 2014), we estimate the isotropic energy release E_iso to 4.9(-0.4,+0,4)x10^51 erg, the isotropic luminosity L_iso to 4.7(-1.0,+1,0)x10^50 erg/s, and the rest-frame peak energies of the time-integrated and peak spectra to 235(-51,+56) keV and 460 (-86, +81) keV, correspondingly. With these values, GRB 211227A is consistent with the 90% prediction bands for the 'Amati' relation and is an outlier in the 'Yonetoku' relation for the sample of� >300 long KW GRBs with known redshifts (Tsvetkova et al., 2021, ApJ, 908, 83). However, if we assume a higher burst redshift (z>0.5), GRB 211227A is consistent with both 'Amati' and 'Yonetoku' relations, see http://www.ioffe.ru/LEA/GRBs/GRB211227A/GRB211227A_rest_frame.pdf
All the quoted errors are estimated at the 68% confidence level. All the presented results are preliminary.
The KW light curve of this burst is available at http://www.ioffe.ru/LEA/GRBs/GRB211227A/

Back to JG's homepage

Jochen Greiner, last update: 03-Feb-2022 [Disclaimer]
