(All information courtesy of the instrument teams.)
Previous IAU Circulars
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:25:33 UT NOTICE_TYPE: Swift-BAT GRB Position TRIGGER_NUM: 1324646, Seg_Num: 0 GRB_RA: 290.344d {+19h 21m 23s} (J2000), 290.659d {+19h 22m 38s} (current), 289.724d {+19h 18m 54s} (1950) GRB_DEC: +4.672d {+04d 40' 21"} (J2000), +4.722d {+04d 43' 19"} (current), +4.577d {+04d 34' 37"} (1950) GRB_ERROR: 3.00 [arcmin radius, statistical only] GRB_INTEN: 2814 [cnts] Image_Peak=131 [image_cnts] TRIGGER_DUR: 1.024 [sec] TRIGGER_INDEX: 156 E_range: 50-350 keV BKG_INTEN: 14044 [cnts] BKG_TIME: 80708.20 SOD {22:25:08.20} UT BKG_DUR: 8 [sec] GRB_DATE: 20841 TJD; 166 DOY; 25/06/15 GRB_TIME: 80719.59 SOD {22:25:19.59} UT GRB_PHI: 61.00 [deg] GRB_THETA: 24.30 [deg] SOLN_STATUS: 0x3 RATE_SIGNIF: 18.30 [sigma] IMAGE_SIGNIF: 7.04 [sigma] MERIT_PARAMS: +1 +0 +0 +0 +3 -3 +0 +1 +79 +0 SUN_POSTN: 84.62d {+05h 38m 29s} +23.34d {+23d 20' 35"} SUN_DIST: 142.14 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.43d {+21h 29m 43s} -17.73d {-17d 43' 45"} MOON_DIST: 38.56 [deg] MOON_ILLUM: 80 [%] GAL_COORDS: 40.52, -4.50 [deg] galactic lon,lat of the burst (or transient) ECL_COORDS: 292.78, 26.52 [deg] ecliptic lon,lat of the burst (or transient) COMMENTS: SWIFT-BAT GRB Coordinates. COMMENTS: This is a rate trigger. COMMENTS: A point_source was found. COMMENTS: This does not match any source in the on-board catalog. COMMENTS: This does not match any source in the ground catalog. COMMENTS: This is a GRB. COMMENTS: This trigger occurred at longitude,latitude = 10.01,-4.06 [deg].
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:27:20 UT NOTICE_TYPE: Swift-XRT Image TRIGGER_NUM: 1324646, Seg_Num: 0 GRB_RA: 290.3850d {+19h 21m 32.3s} (J2000), 290.7002d {+19h 22m 48.0s} (current), 289.7657d {+19h 19m 03.7s} (1950) GRB_DEC: +4.6852d {+04d 41' 06.7"} (J2000), +4.7349d {+04d 44' 05.7"} (current), +4.5896d {+04d 35' 22.6"} (1950) GRB_ERROR: 5.4 [arcsec, radius, statistical plus systematic] GRB_INTEN: 39 [cnts] IMG_START_DATE: 20841 TJD; 166 DOY; 25/06/15 IMG_START_TIME: 80806.46 SOD {22:26:46.46} UT, 86.9 [sec] since BAT Trigger Time CENTROID_X: 236.13, raw= 236 [pixels] CENTROID_Y: 266.30, raw= 266 [pixels] ROLL: 40.77 [deg] GAIN: 1 MODE: 3, Long Image mode WAVEFORM: 134 EXPO_TIME: 2.50 [sec] GRB_POS_XRT_Y: -76.36 GRB_POS_XRT_Z: -177.89 IMAGE_URL: sw01324646000msxps_rw.img SUN_POSTN: 84.62d {+05h 38m 29s} +23.34d {+23d 20' 35"} SUN_DIST: 142.11 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.44d {+21h 29m 47s} -17.72d {-17d 43' 22"} MOON_DIST: 38.54 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.55, -4.53 [deg] galactic lon,lat of the burst ECL_COORDS: 292.83, 26.52 [deg] ecliptic lon,lat of the burst COMMENTS: SWIFT-XRT Image.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:27:22 UT NOTICE_TYPE: Swift-XRT Processed Image TRIGGER_NUM: 1324646, Seg_Num: 0 GRB_RA: 290.3850d {+19h 21m 32.3s} (J2000), 290.7002d {+19h 22m 48.0s} (current), 289.7657d {+19h 19m 03.7s} (1950) GRB_DEC: +4.6852d {+04d 41' 06.7"} (J2000), +4.7349d {+04d 44' 05.7"} (current), +4.5896d {+04d 35' 22.6"} (1950) GRB_ERROR: 5.4 [arcsec, radius, statistical plus systematic] GRB_INTEN: 39 [cnts] IMG_START_DATE: 20841 TJD; 166 DOY; 25/06/15 IMG_START_TIME: 80806.46 SOD {22:26:46.46} UT, 86.9 [sec] since BAT Trigger Time CENTROID_X: 236.13, raw= 236 [pixels] CENTROID_Y: 266.30, raw= 266 [pixels] ROLL: 40.77 [deg] GAIN: 1 MODE: 3, Long Image mode WAVEFORM: 134 EXPO_TIME: 2.50 [sec] GRB_POS_XRT_Y: -76.36 GRB_POS_XRT_Z: -177.89 IMAGE_URL: sw01324646000msxps_rw.img SUN_POSTN: 84.62d {+05h 38m 29s} +23.34d {+23d 20' 35"} SUN_DIST: 142.11 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.45d {+21h 29m 47s} -17.72d {-17d 43' 22"} MOON_DIST: 38.54 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.55, -4.53 [deg] galactic lon,lat of the burst ECL_COORDS: 292.83, 26.52 [deg] ecliptic lon,lat of the burst COMMENTS: SWIFT-XRT Processed Image.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:27:10 UT NOTICE_TYPE: Swift-XRT Position TRIGGER_NUM: 1324646, Seg_Num: 0 GRB_RA: 290.3850d {+19h 21m 32.39s} (J2000), 290.7002d {+19h 22m 48.05s} (current), 289.7657d {+19h 19m 03.76s} (1950) GRB_DEC: +4.6852d {+04d 41' 06.7"} (J2000), +4.7349d {+04d 44' 05.7"} (current), +4.5896d {+04d 35' 22.6"} (1950) GRB_ERROR: 5.6 [arcsec radius, statistical plus systematic, 90% containment] GRB_INTEN: 9.89e-10 [erg/cm2/sec] GRB_SIGNIF: 6.24 [sigma] IMG_START_DATE: 20841 TJD; 166 DOY; 25/06/15 IMG_START_TIME: 80806.46 SOD {22:26:46.46} UT, 86.9 [sec] since BAT Trigger Time TAM[0-3]: 327.63 237.10 261.61 243.87 AMPLIFIER: 2 WAVEFORM: 134 SUN_POSTN: 84.62d {+05h 38m 29s} +23.34d {+23d 20' 35"} SUN_DIST: 142.11 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.44d {+21h 29m 46s} -17.72d {-17d 43' 24"} MOON_DIST: 38.54 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.55, -4.53 [deg] galactic lon,lat of the burst ECL_COORDS: 292.83, 26.52 [deg] ecliptic lon,lat of the burst COMMENTS: SWIFT-XRT Coordinates. COMMENTS: The XRT position is 2.58 arcmin from the BAT position.

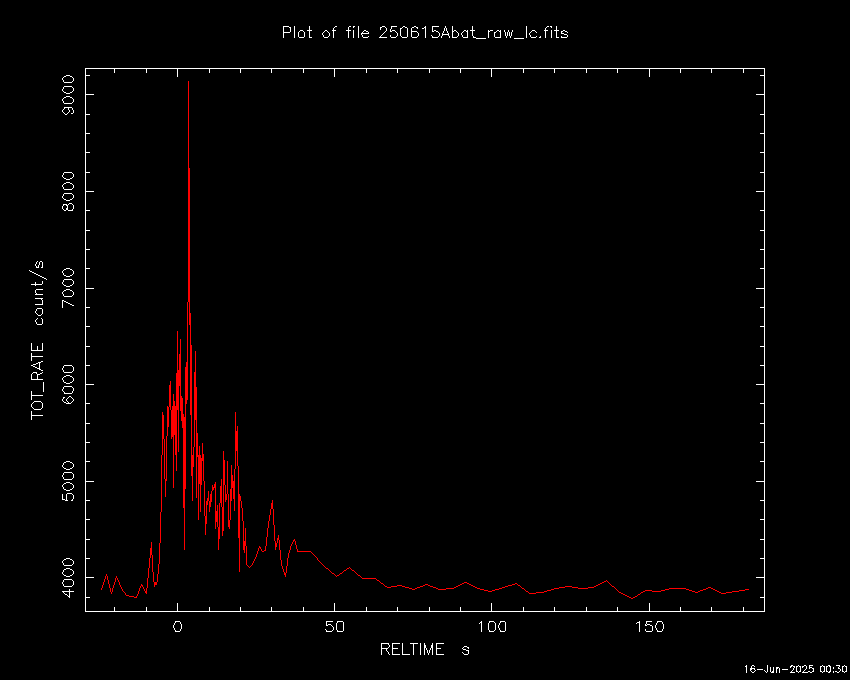

TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:29:32 UT NOTICE_TYPE: Swift-BAT GRB Lightcurve TRIGGER_NUM: 1324646, Seg_Num: 0 GRB_RA: 290.344d {+19h 21m 23s} (J2000), 290.659d {+19h 22m 38s} (current), 289.724d {+19h 18m 54s} (1950) GRB_DEC: +4.672d {+04d 40' 21"} (J2000), +4.722d {+04d 43' 19"} (current), +4.577d {+04d 34' 37"} (1950) GRB_DATE: 20841 TJD; 166 DOY; 25/06/15 GRB_TIME: 80719.59 SOD {22:25:19.59} UT TRIGGER_INDEX: 156 GRB_PHI: 61.00 [deg] GRB_THETA: 24.30 [deg] DELTA_TIME: -18.00 [sec] TRIGGER_DUR: 1.024 [sec] SOLN_STATUS: 0x3 RATE_SIGNIF: 18.30 [sigma] IMAGE_SIGNIF: 7.04 [sigma] LC_URL: sw01324646000msb.lc SUN_POSTN: 84.62d {+05h 38m 29s} +23.34d {+23d 20' 35"} SUN_DIST: 142.14 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.46d {+21h 29m 51s} -17.72d {-17d 42' 54"} MOON_DIST: 38.58 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.52, -4.50 [deg] galactic lon,lat of the burst (or transient) ECL_COORDS: 292.78, 26.52 [deg] ecliptic lon,lat of the burst (or transient) COMMENTS: SWIFT-BAT GRB Lightcurve. COMMENTS: COMMENTS: The next comments were copied from the BAT_POS Notice: COMMENTS: This is a rate trigger. COMMENTS: A point_source was found. COMMENTS: This does not match any source in the on-board catalog. COMMENTS: This does not match any source in the ground catalog. COMMENTS: This is a GRB. COMMENTS: This trigger occurred at longitude,latitude = 10.01,-4.06 [deg].
Tmid-T0 | Site |Filt.| Expt. | Limit| Comment _________|_____________________|_____|_______|______|________ 48 | MASTER-SAAO | C | 10 | 16.9 | 48 | MASTER-SAAO | C | 10 | 17.1 | 77 | MASTER-SAAO | C | 10 | 17.0 | 77 | MASTER-SAAO | C | 10 | 17.1 |Filter C is a clear (unfiltred) band.

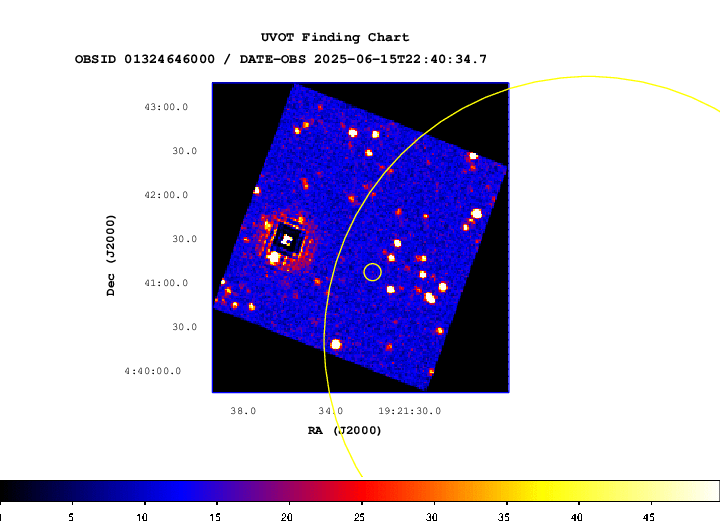

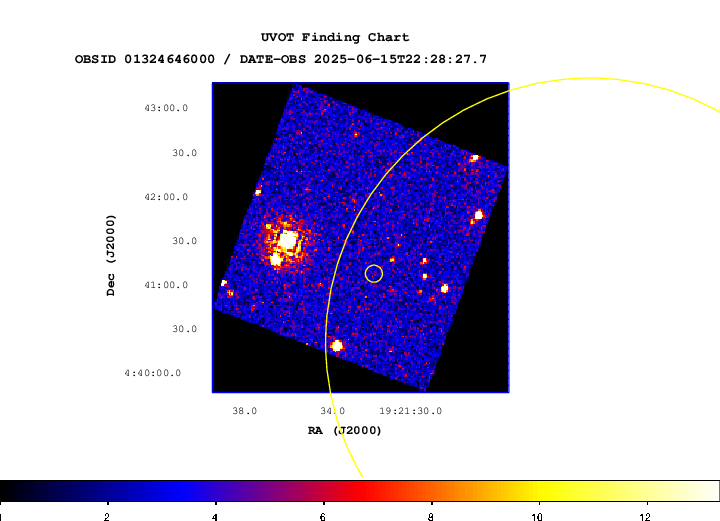

TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:35:25 UT NOTICE_TYPE: Swift-UVOT Source List TRIGGER_NUM: 1324646, Seg_Num: 0 POINT_RA: 290.337d {+19h 21m 21s} (J2000) POINT_DEC: +4.663d {+04d 39' 47"} (J2000) POINT_ROLL: 40.770d IMG_START_DATE: 20841 TJD; 166 DOY; 25/06/15 IMG_START_TIME: 80871.85 SOD {22:27:51.85} UT, 152.3 [sec] since BAT Trigger Time FILTER: 7, U BKG_MEAN: 0.375 N_STARS: 190 X_OFFSET: 0 [pixels] Y_OFFSET: 0 [pixels] X_MAX: 2047 [pixels] Y_MAX: 2047 [pixels] DET_THRESH: 6 PHOTO_THRESH: 2 SL_URL: sw01324646000msufc0152.fits SUN_POSTN: 84.63d {+05h 38m 30s} +23.34d {+23d 20' 36"} SUN_DIST: 142.16 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.52d {+21h 30m 04s} -17.69d {-17d 41' 40"} MOON_DIST: 38.61 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.51, -4.49 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 292.77, 26.51 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Source List.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:35:41 UT NOTICE_TYPE: Swift-UVOT Processed Source List TRIGGER_NUM: 1324646, Seg_Num: 0 POINT_RA: 290.337d {+19h 21m 21s} (J2000) POINT_DEC: +4.663d {+04d 39' 47"} (J2000) POINT_ROLL: 40.770d IMG_START_DATE: 20841 TJD; 166 DOY; 25/06/15 IMG_START_TIME: 80871.85 SOD {22:27:51.85} UT, 152.3 [sec] since BAT Trigger Time FILTER: 7, U BKG_MEAN: 0.375 N_STARS: 190 X_OFFSET: 0 [pixels] Y_OFFSET: 0 [pixels] X_MAX: 2047 [pixels] Y_MAX: 2047 [pixels] DET_THRESH: 6 PHOTO_THRESH: 2 SL_URL: sw01324646000msufc0152.fits SUN_POSTN: 84.63d {+05h 38m 30s} +23.34d {+23d 20' 36"} SUN_DIST: 142.16 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.52d {+21h 30m 04s} -17.69d {-17d 41' 36"} MOON_DIST: 38.61 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.51, -4.49 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 292.77, 26.51 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Processed Source List. COMMENTS: All 4 attachments are included.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:36:49 UT NOTICE_TYPE: Swift-UVOT Image TRIGGER_NUM: 1324646, Seg_Num: 0 POINT_RA: 290.337d {+19h 21m 21s} (J2000) POINT_DEC: +4.663d {+04d 39' 47"} (J2000) ROLL: 40.770d IMG_START_DATE: 20841 TJD; 166 DOY; 25/06/15 IMG_START_TIME: 80871.85 SOD {22:27:51.85} UT, 152.3 [sec] since BAT Trigger Time FILTER: 7, U EXPOSURE_ID: 771719307 X_OFFSET: 1180 [pixels] Y_OFFSET: 845 [pixels] WIDTH: 160 [pixels] HEIGHT: 160 [pixels] X_GRB_POS: 1340 Y_GRB_POS: 1005 BINNING_INDEX: 1 IM_URL: sw01324646000msuni0188.fits SUN_POSTN: 84.63d {+05h 38m 31s} +23.34d {+23d 20' 36"} SUN_DIST: 142.16 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.53d {+21h 30m 07s} -17.69d {-17d 41' 22"} MOON_DIST: 38.62 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.51, -4.49 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 292.77, 26.51 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Image. COMMENTS: The GRB Position came from the XRT Position Command. COMMENTS: The image has 2x2 binning (compression).
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:36:58 UT NOTICE_TYPE: Swift-UVOT Processed Image TRIGGER_NUM: 1324646, Seg_Num: 0 POINT_RA: 290.337d {+19h 21m 21s} (J2000) POINT_DEC: +4.663d {+04d 39' 47"} (J2000) ROLL: 40.770d IMG_START_DATE: 20841 TJD; 166 DOY; 25/06/15 IMG_START_TIME: 80871.85 SOD {22:27:51.85} UT, 152.3 [sec] since BAT Trigger Time FILTER: 7, U EXPOSURE_ID: 771719307 X_OFFSET: 1180 [pixels] Y_OFFSET: 845 [pixels] WIDTH: 160 [pixels] HEIGHT: 160 [pixels] X_GRB_POS: 1340 Y_GRB_POS: 1005 BINNING_INDEX: 1 IM_URL: sw01324646000msuni0188.fits SUN_POSTN: 84.63d {+05h 38m 31s} +23.34d {+23d 20' 36"} SUN_DIST: 142.16 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.53d {+21h 30m 07s} -17.69d {-17d 41' 20"} MOON_DIST: 38.62 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.51, -4.49 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 292.77, 26.51 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Processed Image. COMMENTS: The GRB Position came from the XRT Position Command. COMMENTS: The image has 2x2 binning (compression). COMMENTS: All 4 attachments are included.
RA(J2000) = 19h 21m 23s Dec(J2000) = +04d 40â 21"with an uncertainty of 3 arcmin (radius, 90% containment, including systematic uncertainty). The BAT light curve showed a complex structure with a duration of about 55 sec. The peak count rate was ~5000 counts/sec (15-350 keV), at ~1 sec after the trigger.
RA(J2000) = 19h 21m 32.32s Dec(J2000) = +04d 41' 04.8"with an uncertainty of 3.6 arcseconds (radius, 90% containment). This location is 152 arcseconds from the BAT onboard position, within the BAT error circle. This position may be improved as more data are received; the latest position is available at https://www.swift.ac.uk/sper.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:45:22 UT NOTICE_TYPE: Swift-UVOT Source List TRIGGER_NUM: 1324646, Seg_Num: 0 POINT_RA: 290.337d {+19h 21m 21s} (J2000) POINT_DEC: +4.663d {+04d 39' 46"} (J2000) POINT_ROLL: 40.770d IMG_START_DATE: 20841 TJD; 166 DOY; 25/06/15 IMG_START_TIME: 81598.86 SOD {22:39:58.86} UT, 879.3 [sec] since BAT Trigger Time FILTER: 10, White BKG_MEAN: 2.961 N_STARS: 190 X_OFFSET: 608 [pixels] Y_OFFSET: 285 [pixels] X_MAX: 2047 [pixels] Y_MAX: 1724 [pixels] DET_THRESH: 14 PHOTO_THRESH: 8 SL_URL: sw01324646000msufc0879.fits SUN_POSTN: 84.63d {+05h 38m 32s} +23.34d {+23d 20' 37"} SUN_DIST: 142.16 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.60d {+21h 30m 25s} -17.66d {-17d 39' 34"} MOON_DIST: 38.66 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.51, -4.49 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 292.77, 26.51 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Source List.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:45:35 UT NOTICE_TYPE: Swift-UVOT Processed Source List TRIGGER_NUM: 1324646, Seg_Num: 0 POINT_RA: 290.337d {+19h 21m 21s} (J2000) POINT_DEC: +4.663d {+04d 39' 46"} (J2000) POINT_ROLL: 40.770d IMG_START_DATE: 20841 TJD; 166 DOY; 25/06/15 IMG_START_TIME: 81598.86 SOD {22:39:58.86} UT, 879.3 [sec] since BAT Trigger Time FILTER: 10, White BKG_MEAN: 2.961 N_STARS: 190 X_OFFSET: 608 [pixels] Y_OFFSET: 285 [pixels] X_MAX: 2047 [pixels] Y_MAX: 1724 [pixels] DET_THRESH: 14 PHOTO_THRESH: 8 SL_URL: sw01324646000msufc0879.fits SUN_POSTN: 84.63d {+05h 38m 32s} +23.34d {+23d 20' 37"} SUN_DIST: 142.16 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.61d {+21h 30m 25s} -17.66d {-17d 39' 31"} MOON_DIST: 38.66 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.51, -4.49 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 292.77, 26.51 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Processed Source List. COMMENTS: All 4 attachments are included.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:45:45 UT NOTICE_TYPE: Swift-XRT Position UPDATE TRIGGER_NUM: 1324646, Seg_Num: 0 GRB_RA: 290.3856d {+19h 21m 32.54s} (J2000), 290.7008d {+19h 22m 48.19s} (current), 289.7663d {+19h 19m 03.90s} (1950) GRB_DEC: +4.6852d {+04d 41' 06.7"} (J2000), +4.7349d {+04d 44' 05.7"} (current), +4.5896d {+04d 35' 22.6"} (1950) GRB_ERROR: 2.0 [arcsec radius, statistical plus systematic, 90% containment] GRB_INTEN: 1.00e-10 [erg/cm2/sec] GRB_SIGNIF: 10.00 [sigma] IMG_START_DATE: 20841 TJD; 166 DOY; 25/06/15 IMG_START_TIME: 80921.00 SOD {22:28:41.00} UT, 201.4 [sec] since BAT Trigger Time TAM[0-3]: 100.00 100.00 100.00 100.00 AMPLIFIER: 1 WAVEFORM: 31 SUN_POSTN: 84.63d {+05h 38m 32s} +23.34d {+23d 20' 37"} SUN_DIST: 142.11 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.61d {+21h 30m 26s} -17.66d {-17d 39' 29"} MOON_DIST: 38.64 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.55, -4.53 [deg] galactic lon,lat of the burst ECL_COORDS: 292.83, 26.52 [deg] ecliptic lon,lat of the burst COMMENTS: SWIFT-XRT Coordinates. COMMENTS: This Notice was ground-generated -- not flight-generated. COMMENTS: This is an Update Notice -- the RA,Dec values herein supersede the previous XRT_POS Notice. COMMENTS: TAM values, flux and significance fields are not valid. COMMENTS: This position was automatically generated on the ground using COMMENTS: Photon Counting data telemetered via TDRSS (SPER data). COMMENTS: See http://www.swift.ac.uk/sper/docs.php for details. COMMENTS: This position was enhanced using UVOT field astrometry. COMMENTS: The probability that this is a serendipitous source in the COMMENTS: SPER window is 0.58% < P(seren) < 1.1%.
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:46:49 UT NOTICE_TYPE: Swift-UVOT Image TRIGGER_NUM: 1324646, Seg_Num: 0 POINT_RA: 290.337d {+19h 21m 21s} (J2000) POINT_DEC: +4.663d {+04d 39' 46"} (J2000) ROLL: 40.770d IMG_START_DATE: 20841 TJD; 166 DOY; 25/06/15 IMG_START_TIME: 81598.86 SOD {22:39:58.86} UT, 879.3 [sec] since BAT Trigger Time FILTER: 10, White EXPOSURE_ID: 771720034 X_OFFSET: 1167 [pixels] Y_OFFSET: 844 [pixels] WIDTH: 160 [pixels] HEIGHT: 160 [pixels] X_GRB_POS: 1327 Y_GRB_POS: 1004 BINNING_INDEX: 1 IM_URL: sw01324646000msuni0915.fits SUN_POSTN: 84.63d {+05h 38m 32s} +23.34d {+23d 20' 37"} SUN_DIST: 142.16 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.62d {+21h 30m 28s} -17.65d {-17d 39' 15"} MOON_DIST: 38.67 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.51, -4.49 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 292.77, 26.51 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Image. COMMENTS: The GRB Position came from the Window Position in the Mode Command. COMMENTS: The image has 2x2 binning (compression).
TITLE: GCN/SWIFT NOTICE NOTICE_DATE: Sun 15 Jun 25 22:47:03 UT NOTICE_TYPE: Swift-UVOT Processed Image TRIGGER_NUM: 1324646, Seg_Num: 0 POINT_RA: 290.337d {+19h 21m 21s} (J2000) POINT_DEC: +4.663d {+04d 39' 46"} (J2000) ROLL: 40.770d IMG_START_DATE: 20841 TJD; 166 DOY; 25/06/15 IMG_START_TIME: 81598.86 SOD {22:39:58.86} UT, 879.3 [sec] since BAT Trigger Time FILTER: 10, White EXPOSURE_ID: 771720034 X_OFFSET: 1167 [pixels] Y_OFFSET: 844 [pixels] WIDTH: 160 [pixels] HEIGHT: 160 [pixels] X_GRB_POS: 1327 Y_GRB_POS: 1004 BINNING_INDEX: 1 IM_URL: sw01324646000msuni0915.fits SUN_POSTN: 84.64d {+05h 38m 32s} +23.34d {+23d 20' 37"} SUN_DIST: 142.16 [deg] Sun_angle= 10.3 [hr] (West of Sun) MOON_POSTN: 322.62d {+21h 30m 28s} -17.65d {-17d 39' 12"} MOON_DIST: 38.67 [deg] MOON_ILLUM: 79 [%] GAL_COORDS: 40.51, -4.49 [deg] galactic lon,lat of the pointing direction ECL_COORDS: 292.77, 26.51 [deg] ecliptic lon,lat of the pointing direction COMMENTS: SWIFT-UVOT Processed Image. COMMENTS: The GRB Position came from the Window Position in the Mode Command. COMMENTS: The image has 2x2 binning (compression). COMMENTS: All 4 attachments are included.
RA (J2000) = 19 21 32.53 Dec (J2000) = +04 41 07.0with an uncertainty of 2.0 arcseconds (radius, 90% confidence). Analysis of the promptly available data is online at http://www.swift.ac.uk/sper/1324646.
RA (J2000): 19h 21m 32.56s Dec (J2000): +04d 41' 06.5"with an uncertainty of 2.3 arcsec (radius, 90% confidence).
Total column: 2.4 (+0.7, -0.6) x 10^22 cm^-2 Galactic foreground: 5.5 x 10^21 cm^-2 Excess significance: 5.3 sigma Photon index: 2.0 (+0.4, -0.3)If the light curve continues to decay with a power-law decay index of 1.62, the count rate at T+24 hours will be 2.2 x 10^-4 count s^-1, corresponding to an observed (unabsorbed) 0.3-10 keV flux of 1.5 x 10^-14 (3.3 x 10^-14) erg cm^-2 s^-1.
Filter T_start(s) T_stop(s) Exp(s) Mag u_FC 152 402 246 >19.8 white 432 1722 284 >21.0 v 483 1772 156 >19.5 b 408 1697 136 >20.7 u 152 1672 363 >20.0 w1 532 1821 136 >19.5 w2 804 1747 78 >19.2The magnitudes in the table are not corrected for the Galactic extinction due to the reddening of E(B-V) = 1.165 in the direction of the burst (Schlegel et al. 1998).

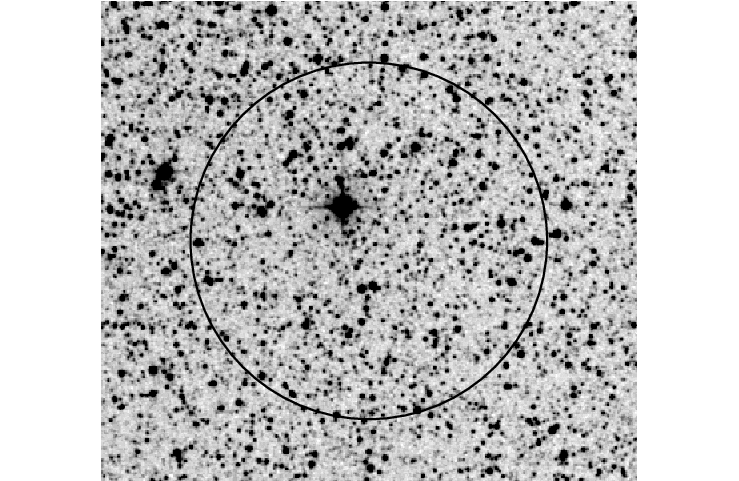

Start T0+ End T0+ CR lim 0.94 hour 4.33 hour 19.6We did not found any optical uncatalogued object within the Swift error circle.
RA(J2000) = 19h 21m 32.1s Dec(J2000) = +04d 40' 44.0"with an uncertainty of 1.0 arcmin, (radius, sys+stat, 90% containment). The partial coding was 56%.
r > 23.9 mag i > 23.3 mag J > 21.8 mag.These upper limits are consistent with the previous observations by Kuin et al. (GCN 40747), Becerra et al. (GCN 40748), Magnani et al. (GCN 40749), and Calapai & Giorgio (GCN 40759).
+---------------+-------------+---------+---------------------+--------------+ | Tmid-TGRB (hr)| Exp (s) | Filter | Magnitude | Instrument | +===============+=============+=========+=====================+==============+ | 7.9 | 6 x 300s | r (AB) | 20.1 (U.L., 5sigma) | TEC160FL | | 8.1 | 11 x 300s | g (AB) | 20.8 (U.L., 5sigma) | CDK17-AITP | | 8.5 | 6 x 300s | g (AB) | 20.4 (U.L., 5sigma) | TEC160FL | | 9.0 | 6 x 300s | i (AB) | 19.2 (U.L., 5sigma) | TEC160FL | | 9.6 | 11 x 300s | r (AB) | 20.2 (U.L., 5sigma) | CDK17-AITP | +---------------+-------------+---------+---------------------+--------------+All the data have been reduced by a single data processing pipeline, STDPipe (Karpov et al., 2022). Images obtained with the sloan images were calibrated using the PanSTARRS DR1 catalog.
