SHARP II+ is equipped with a NICMOS3 focal plane array from Rockwell International Corporation. Table 2.6 summarizes the detector characteristics.

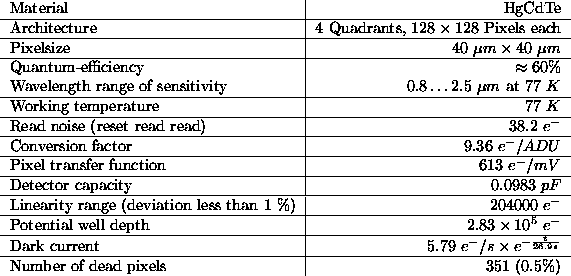

Table 2.6: The Rockwell NICMOS 3 Detector in SHARP II+

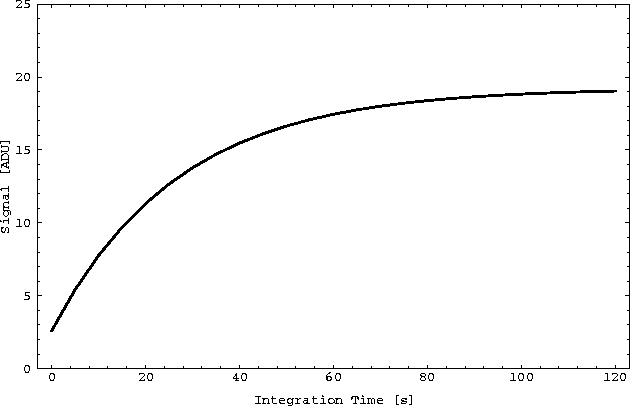

Beside the read noise of 38 electrons for a complete reset-read-read procedure (the read noise for a single readout is 27 electrons), the linearity range and the dark current are the most important characteristics. They are plotted in the figures 2.1 and 2.2.
Figure 2.1: Linearity of the detector

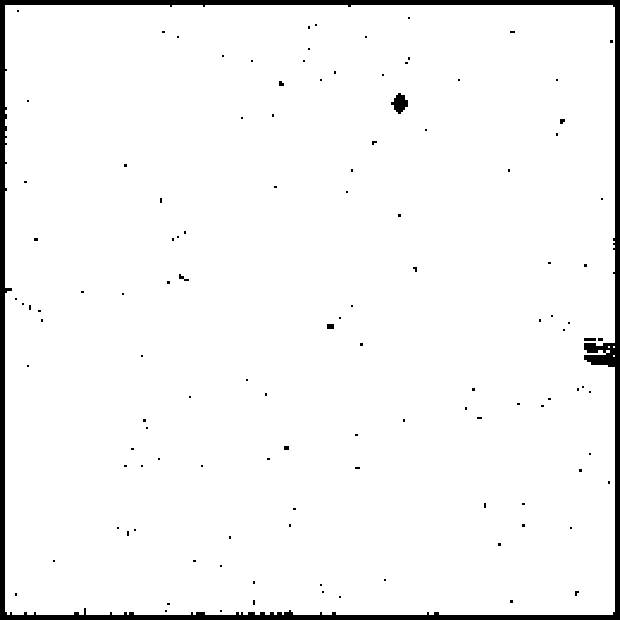

Figure 2.3 shows a map of the dead pixels. For all these dead pixels the quantum efficiency differs by more than 20 % from the median.
Figure 2.3: Map of dead pixels. North is right and
east is down
